KAOS: Installing Recessed Tracks

---

Installing U-Channels

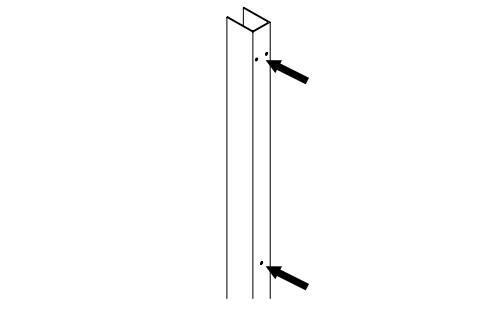

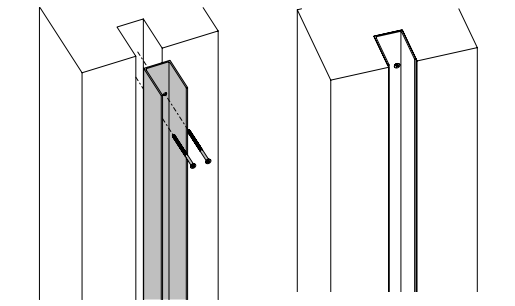

1. Pre-drill the U-channel:
   • 2 holes for TOP, MIDDLE and BOTTOM.
   • 1 hole every 12 inches in spacing Attach the U-Channel beneath the brackets.
2. Secure the U-channels on both sides using the appropriate screws
   ⚠️ : Ensure the fasteners are capable of supporting the weight of the shade.
3. Use appropriate fasteners to mount the brackets to the ceiling or wall, aligning them according to the ordered shade width.

---

Installing Track into U-Channels

Dis-assembling the tracks

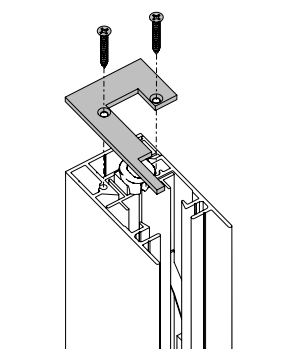

1. To remove the top cap, unscrew the two securing screws.

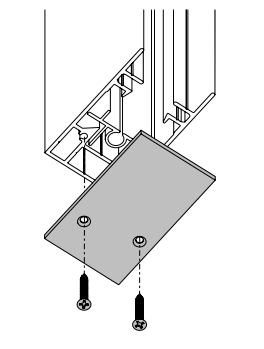

2. To remove the bottom cap, unscrew the two securing screws.

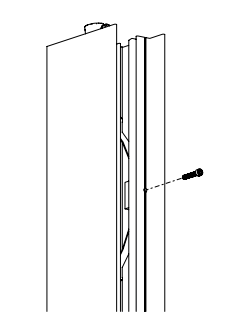

3. Remove the screws holding the spring clips along the front of the track.

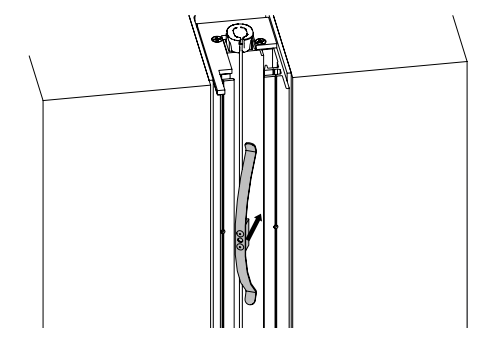

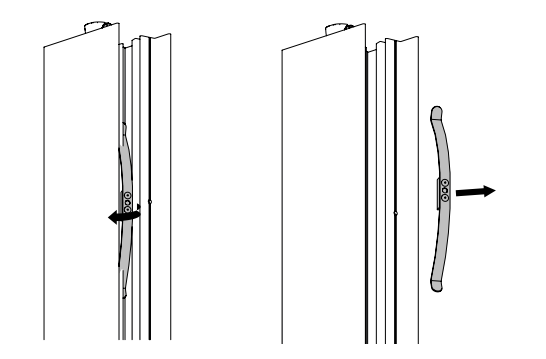

4. Push down on the spring clip and rotate it outward to release it from the track.

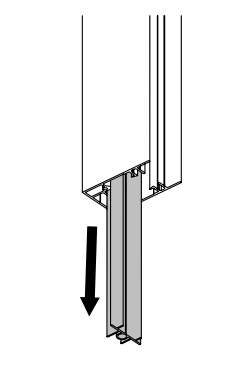

5. Pull out the V-track from the outer track.

6. Pre-drill holes to secure the track to the U-channel.
   • ⚠️ : Use the centerline inside the track as a guide.
   • ⚠️ : Ensure you only drill through the first layer, and make the holes large enough for the correct screws.

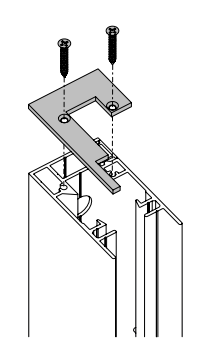

7. Reattach the top cap and secure it with the two provided screws.

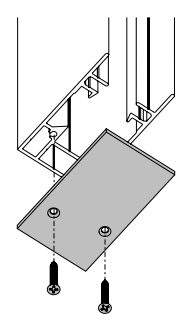

8. Reattach the bottom cap and secure it with the two provided screws.

---

Installing the Tracks in the U-Channels

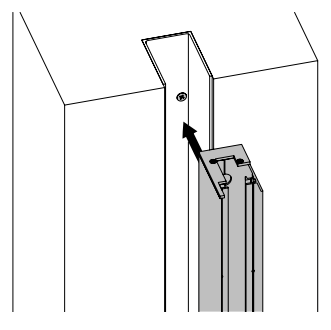

1. Insert the track into the U-channel.

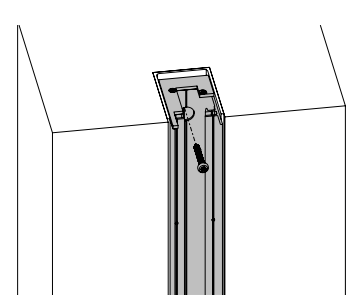

2. Secure the track to the U-channel using the appropriate screws.
   • ⚠️ : A shim may be needed at the back of the track for leveling. (Shims are not provided.)

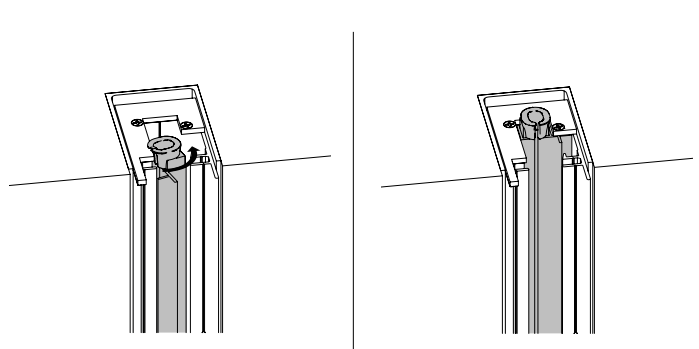

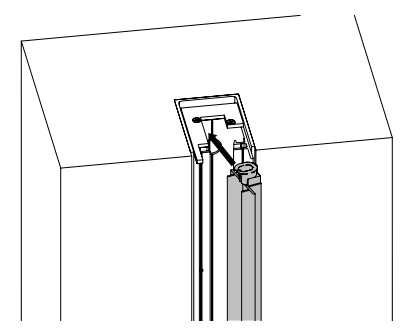

3. Insert the V-track at a slight angle.

4. Once the V-track is inside the track, rotate it to position it correctly
5. To reinstall the spring clip, push it between the V-track and the outer track, then rotate it into place.
   • Ensure the hole in the spring clip aligns with the holes in the outer track.

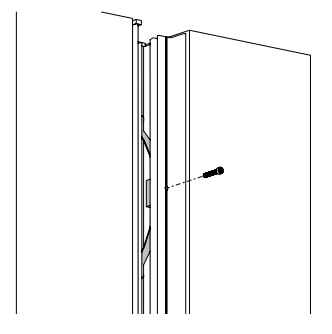

6. Reattach the spring clips and secure them with the screws you removed earlier.

---
