KAOS: SI KAOS Motor Programming Guide

SI KAOS Motor Programming Guide

Quick Navigation

Pairing the Remote Entering Programming Mode Changing Motor Rotation Setting Limits Adjusting Limits Erasing Limits Obstacle Detection Sensitivity Continuous Movement Mode Toggle Adding a Remote Deleting a Remote Factory Resetting the Motor

Programming the Motor

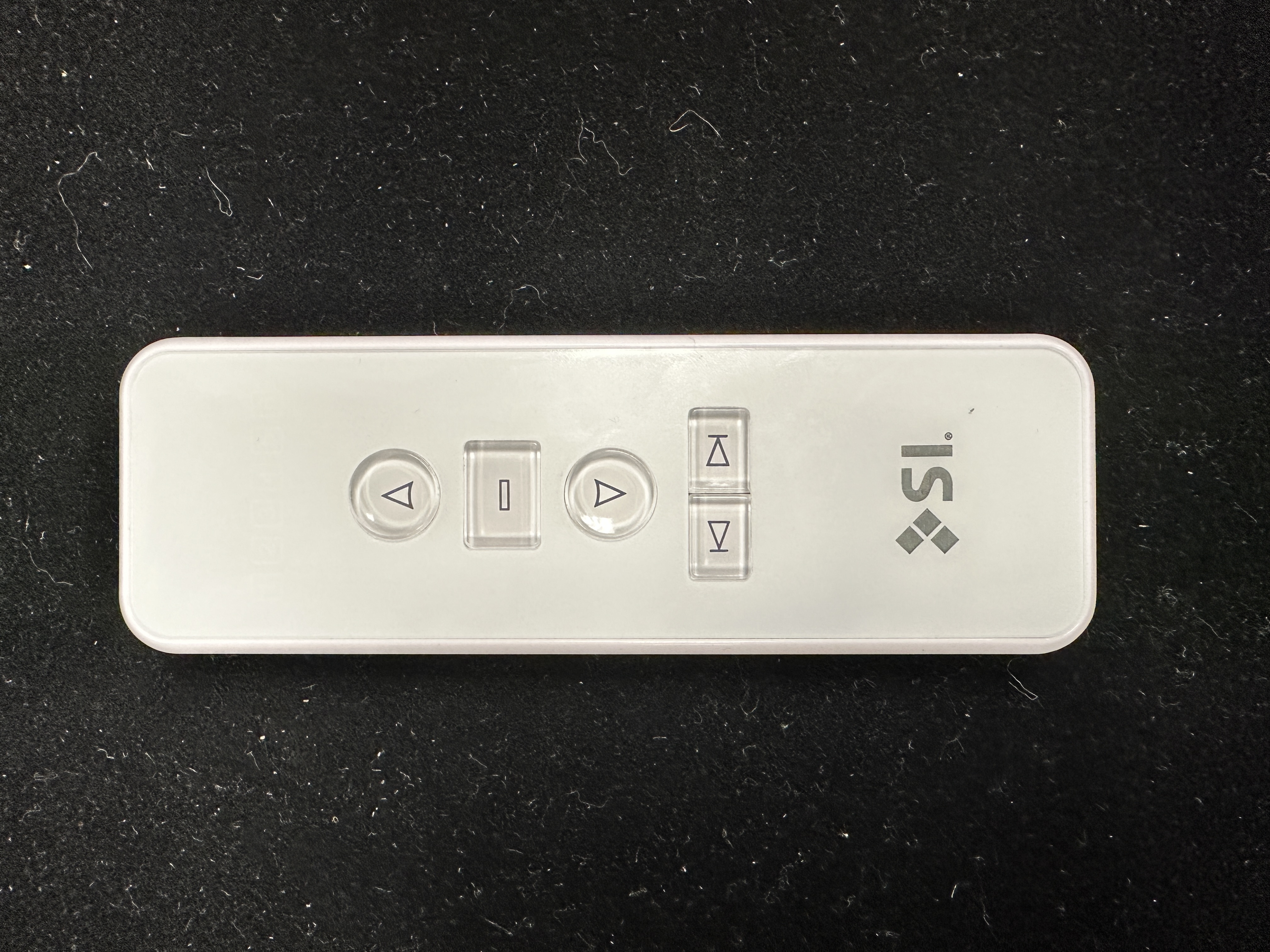

Pairing the Remote:

1. Unplug the motor from power.
2. Press and hold the UP button on the remote for 3 seconds.
3. While holding the UP button, plug in the motor.
4. The motor will jog once, indicating it is in programming mode.
5. Quickly press the UP button on the remote. The motor will jog briefly.
6. The remote is now paired with the motor.

✅ Important: Pairing may require some trial and error.

Entering Programming Mode:

1. Press and Hold the STOP button for 5 seconds.
2. The motor will jog briefly, entering programming mode.

Changing the Motor Rotation

1. Set the motor to programming mode.
   • Push and HOLD the STOP button for 5 seconds, until the shade jogs.
2. Press the DOWN button.
3. The motor will jog, confirming the direction change.

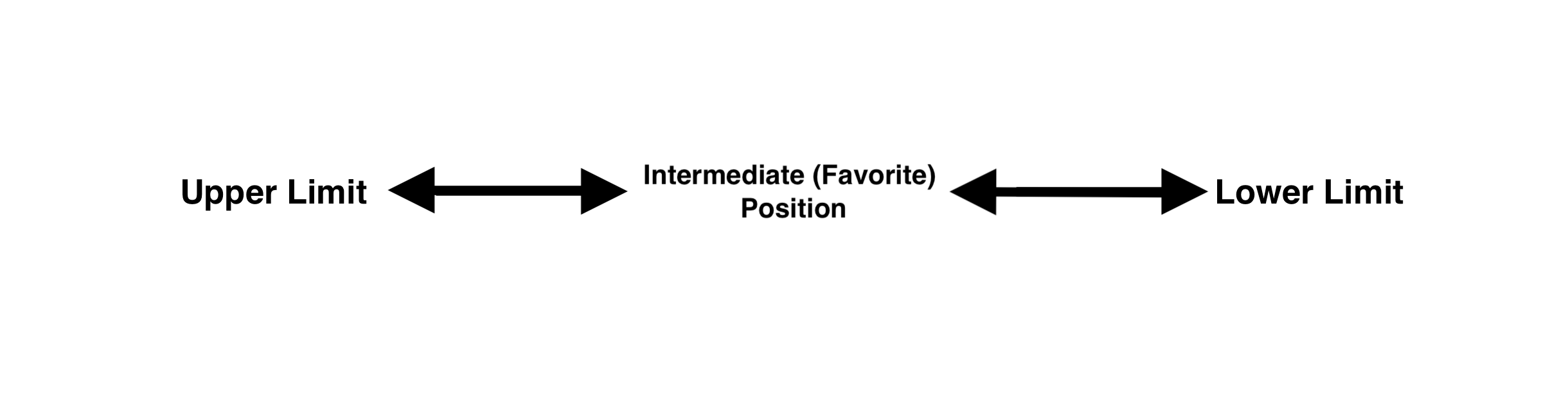

Setting Limits

Upper Limit:

1. Press the Programming button on the back of the remote—the motor will jog, entering limit setting mode.
2. Press the UP button to enter upper limit setting mode.
3. Use the UP button to raise the shade to the desired position.
   💡 Tip: Tap UP or DOWN to move in small increments.
   💡 Tip: Push and HOLD, UP or DOWN for 3 seconds to continuously move, then press STOP at desired location, tap UP or DOWN to fine tune.
4. Press the Programming button again—the motor will jog.
5. The upper limit is now set.

Lower Limit:

1. Press the Programming button on the back of the remote—the motor will jog, entering limit setting mode.
2. Press the DOWN button to enter lower limit setting mode.
3. Adjust the shade to the desired position, then press the Programming button—the motor will jog.
   💡 Tip: Tap UP or DOWN to move in small increments.
   💡 Tip: Push and HOLD, UP or DOWN for 3 seconds to continuously move, then press STOP at desired location, tap UP or DOWN to fine tune.
4. The lower limit is now set.

Adjusting Limits

1. Move the motor to the limit that needs adjustment and tap the Programming button.
2. The motor will jog, entering limit setting mode.
3. Adjust to the new limit position.
4. Press the Programming button to confirm.
5. The motor will jog, confirming the adjustment is complete.

Erasing Limit Positions

1. Move the motor to the upper or lower limit.
2. Hold the Programming button for 7 seconds.
   • After 1 second, the motor jogs once.
   • After 7 seconds, the motor jogs twice.
3. Limits are now erased.

Obstacle Detection

Adjusting Sensitivity (Range: 1–5, Default: 3)

1. Hold UP + DOWN for 5 seconds—the motor will jog.
2. To increase sensitivity, press STOP + UP—the motor will jog.
3. To decrease sensitivity, press STOP + DOWN—the motor will jog.
4. If the motor doesn't move, you've reached the maximum or minimum level.
5. Hold STOP for 2 seconds—the motor will jog, confirming the setting.

Continuous Movement Mode Toggle

✅ Important: What is Continuous Mode?

Continuous mode means tapping the UP or DOWN button moves the shade to its limit. When disabled, holding the UP or DOWN button for 1.5 seconds makes the shade move continuously until you press the STOP button.

1. Set the motor to programming mode.
   • Push and HOLD the STOP button for 5 seconds, until the shade jogs.
2. Tap the STOP button on the remote.
3. The motor will jog once to confirm the mode has switched.

💡 Tip: Repeat this process to switch back to Continuous Mode

Adding a Remote

Using the existing remote to add another or multi channel remote.

1. On the original working remote, push and HOLD the STOP button until the shade jogs once.
2. On the new remote, quickly press the UP button, and the shade will jog once.

Deleting a Remote

1. Set the motor to programming mode.
   • Push and HOLD the STOP button for 5 seconds, until the shade jogs.
2. Press the Programming button on the remote's back.
3. The motor will jog once, confirming the remote is deleted.

Factory Reset

1. Set the motor to programming mode.
   • Push and HOLD the STOP button for 5 seconds, until the shade jogs.
2. Hold the programming button on the transmitter for 7 seconds.
3. The motor will jog briefly.
4. After the 7 seconds, the motor will jog again.
5. Limits and transmitters are deleted, and factory settings are restored.

For issues, contact Screen Innovations:

Phone: [phone] Option 3

Website: www.screeninnovations.com
