Nano Pocket: Coupled Duo Installation Instructions

---

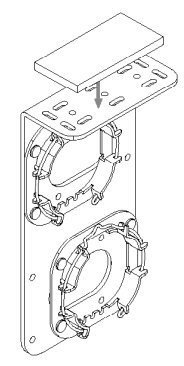

Step 1: Leveling Shims (Optional)

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

Step 2: Installing the Brackets

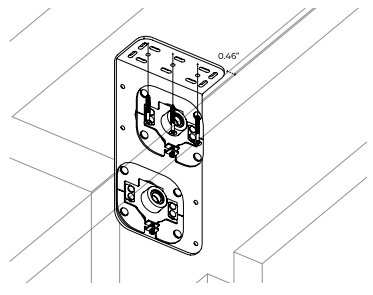

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

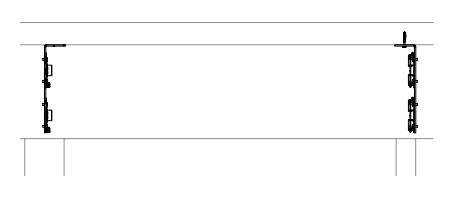

• The bracket to bracket width should be the width that the band was ordered at.

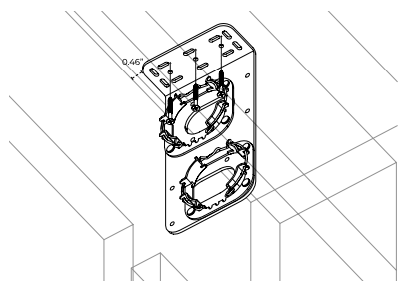

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
• The bracket to bracket width should be the width that the band was ordered at.

• Once the brackets are secured with the screws, we are ready to install the roll.

---

Step 3: Installing the Rolls

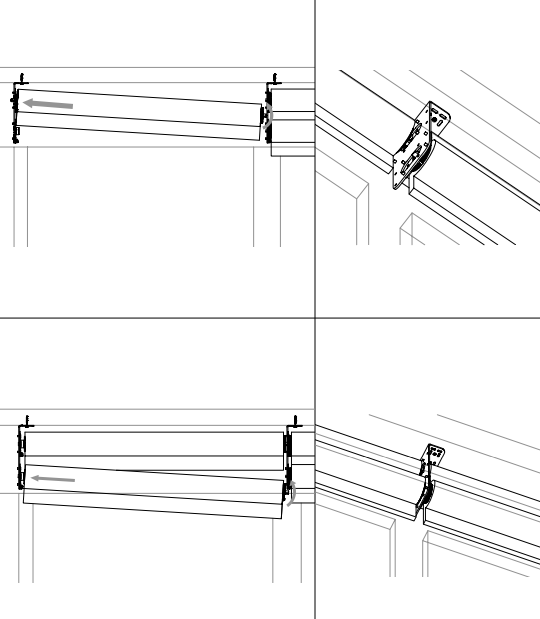

• To install the roll: First, insert the idler side of the roll in the idler side bracket.

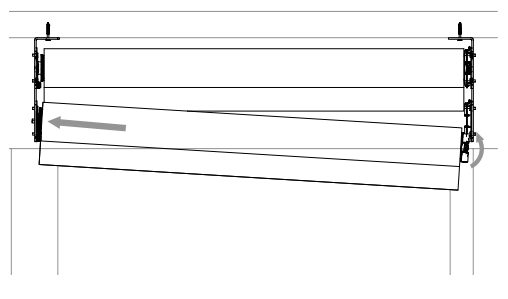

• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the previous step for the shades below.

---

Step 4: Installing the remaining Rolls

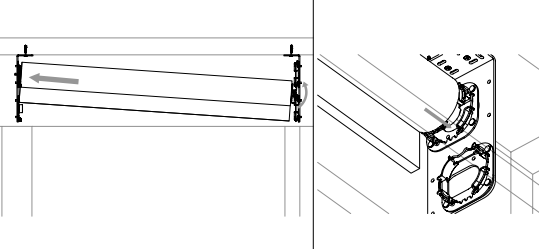

• Moving to the next set of Duo shades installation, by inserting the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

---

• Nano Pocket: Coupled Shade Side Channel Installation Instructions
• Nano Pocket: Pocket Flap and Hanger Extrusion Install Instructions
• Nano: Wiring Pinouts

---
