Features
- Pocket Duo shades are the best of both worlds in one cassette, occupying only 3.79″ of depth, hidden in the pockets.
- Ultra-quiet operation.
- Programmable limits.
- Fine tunable using a remote or through your control system depending on configuration.
- Industry leading light gaps, as small as 3/4”, depending on size and configuration.
- Shades move in unison, with speeds programmable through integration.
- Optional Side & Sill Channels eliminate light gaps for a blackout experience.
- Expansive textile / fabric options with UV blocking Sunscreen, Light Filtering, Privacy and Black-out available.
- Most commercial grade fabrics carry NFPA 701-10 California Title 19, ASTM E2180, ASTM G21 Bacterial & Fungal Resistance and some carry various Acoustical Ratings for sound absorption.
- Custom fabric options available.
- Power failure memory for the life of the shade.
- Available in Wired using 485/ Zigbee LV with Janus, SiFi, and Fontus, or Wireless using Zigbee or RTS technologies.
- Low voltage power and communication over Category cable, or over existing 2-wire installations.
Note: Fabric selection may limit the size of the shade, or force cassette size to the next size up; use the SI Flow Tool and SI Design Services with help determining shade size and fabric selection compatibility.
Finish
- Pocket Shades
Sizes
- 275 / 375 / 475
Methods of Control
- Wired Integration and control
- IP control for all popular control systems - 485
- Serial 232 (1 way)
- Contact closure (global and local)
- 12 v trigger
- 0-10v
- Wireless Integration and control
- RTS (global and local)
- IR
- Zigbee low-voltage (275 only)
Pocket Dimensions
Power
- Low Voltage Power, with operating voltage: (class 2, 24-28v DC).
- Line Level Voltage Power, with operating voltage: (110v AC, 50 - 60Hz).
- Power supply features over/under-voltage, over/under current, and thermal protection for all devices in the system.
- Electrostatic isolated and galvanic isolation.
- Non-volatile memory, meaning programming is protected in the case of a power failure.
- Must use Screen Innovations supplied power source for all low-voltage and Power charging.
Compatible power sources
- Configurable in 2 available motor types:
Flexible Configuration
- Create scenes, groups, and set times
- Systems we integrate with:
- NANO 485 shades - BCP, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures, Elan, IP, IR, Lutron*, Loxone, RS-232, RS-485, RTI, Savant, URC, 0-10v, 12v Trigger
- NANO RTS shades - Alexa, Control4, Crestron SIMPL, Crestron Home*, Dry Contact Closures, Elan, Google Home via IFTTT, Josh.ai*, IP, IR, Loxone, RS-232 via URTSII, RS-485 via URTSII, RTI, Savant, URC, 12v Trigger via Connect
- NANO Zigbee shades - Alexa, Control4, Crestron SIMPL, Crestron Home*, Elan, Google home, IP, Lutron*, RS-232*, RTI*, Savant, URC, Apple Homekit*, Phillips HUE*, Brilliant*, Josh ai*, Samsung Smart Things*
*-Coming Soon
System Size
- Janus - Each Janus powers up to 8 devices, and up to 255 devices per segment
- Zigbee - A Zigbee system can control up to 77 nodes per mesh controller, with no limit on number of mesh controllers for RTS
- RTS - RTS systems can control virtually unlimited devices using LinkPro Z, TaHoma Switch or SI Eco-System
Environment
- Operating temperature range is normal ambient (32 to 110 degrees), and humidity levels up to 90%.
- Not meant for wet environments

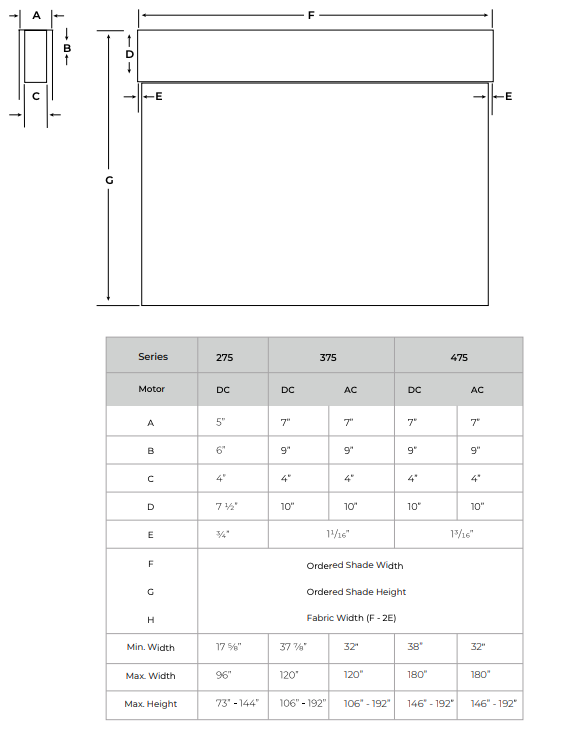

Shade and Pocket Measurements

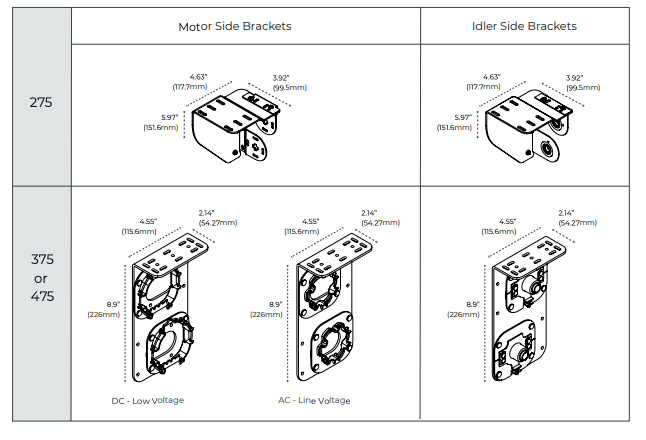

Mounting Brackets Measurements
