Nano Pocket - Duo Coupled Installation Guide

Nano Indoor Shades

Complete guide to our precision-engineered Nano shading solutions

Shade TypesAccessoriesProgramming & IntegrationWiring & Troubleshooting

Nano Box

Nano Open Roll

Nano Pocket

Nano Duo

Nano Coupled

Nano Manual

Janus

1K PoE Switch

SI IP Bridge

Kratos

TaHoma Switch

Side Channels

TRO.Y 2

Suite XVI

C4 Zigbee

Pocket Flap and Hanger Extrusions

SI Eco-System - 485

SI Eco-System - PoE

SI Eco-System - Zigbee

SI Eco-System - RTS

RF Remote - Standalone

Zigbee Remote Standalone

TaHoma Switch

Bond Bridge Pro - RTS Only

Bond Bridge Pro - EcoSystem Integration

3rd Party Integration

Wiring Pinouts

How to service the V2 Nano Box

How to swap a motor in a V2 Nano Box

How to swap a motor in a V1 Nano Box

How to fix roll overs and hembar jams

Nano Open Roll V2 motor Swap

How to fix Pin-holes in Blackout Fabric

Zigbee Troubleshooting

485 Troubleshooting

RTS Troubleshooting

Nano Pocket: 275 Single Roll

Nano Pocket: 375/475 Single Roll

Nano Pocket: Duo 275

Nano Pocket: Duo 375

Nano Pocket: Coupled

Nano Pocket: Duo Coupled

---

Table of Contents:

Leveling Shims

Installing the brackets

Installing the fabric rolls

Parts in the Box

---

Step 1: Leveling Shims (Optional)

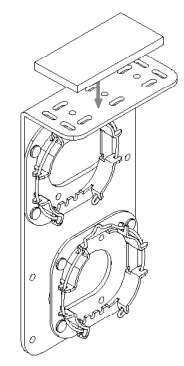

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

Step 2: Installing the Brackets

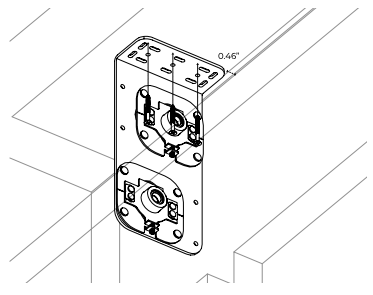

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

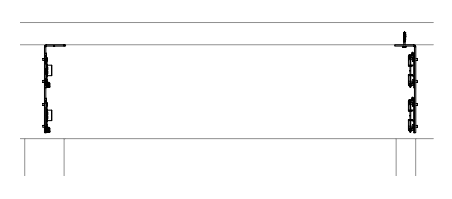

• The bracket to bracket width should be the width that the band was ordered at.

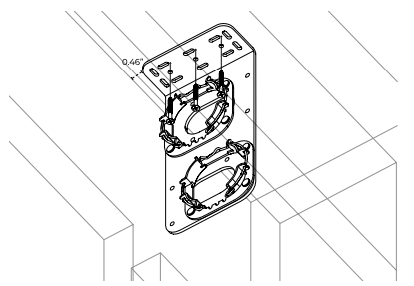

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
• The bracket to bracket width should be the width that the band was ordered at.

• Once the brackets are secured with the screws, we are ready to install the roll.

---

Step 3: Installing the Rolls

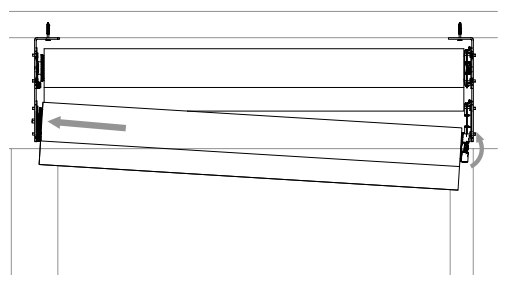

• To install the roll: First, insert the idler side of the roll in the idler side bracket.

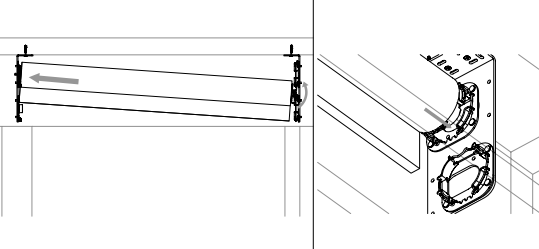

• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the previous step for the shades below.

---

Step 4: Installing the remaining Rolls

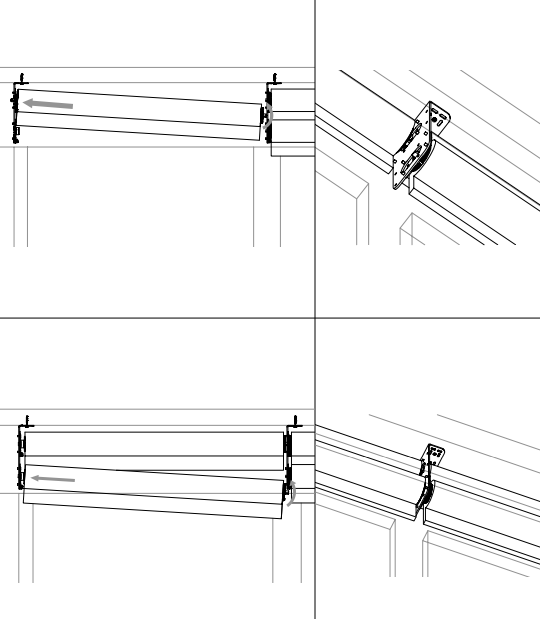

• Moving to the next set of Duo shades installation, by inserting the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

---

Parts in the Box

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
