Table of Contents:

Leveling Shims

Installing the Brackets

Installing the Rolls

Adjusting the Rolls

Leveling the Hembars

Parts in the Box

---

---

Step 1: Leveling Shims (Optional)

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

Step 2: Installing the brackets

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
• The bracket to bracket width will be the dimension the shade was ordered from.
• Repeat this for additional shades bands.

• Once the brackets are secured with the screws, we are ready to install the roll.

---

Step 3: Installing the Rolls

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the same step 4 for the following remaining shades.

---

Step 4: Adjusting the Rolls

• Adjust/deploy idler with provided tool.
• Rotating this will cause the

---

Step 5: Leveling the Hembars:

• If shade is not properly level.
• Pull the inner part of idler that connects to the previous shade idler and leave it connected.
• Rotate shade until is properly level with previous shade.
• Then push the shade back into the idler

---

---

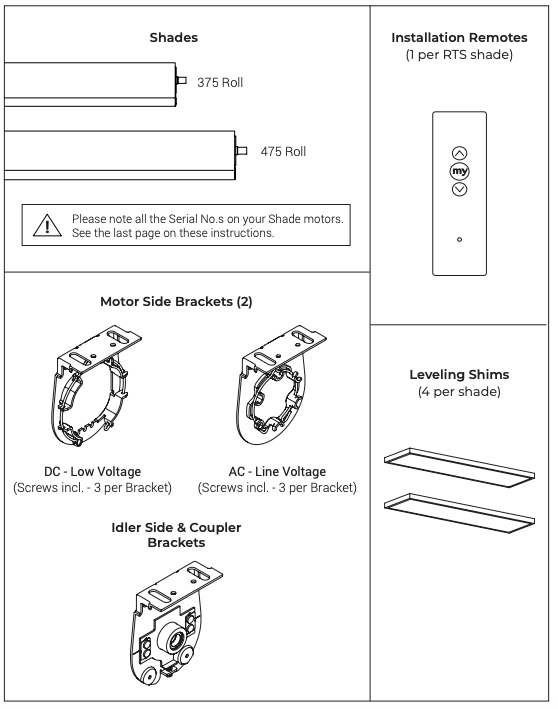

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
