Nano Pocket - Duo: 375 Installation Guide

Nano Pocket: 275 Single Roll

Nano Pocket: 375/475 Single Roll

Nano Pocket: Duo 275

Nano Pocket: Duo 375

Nano Pocket: Coupled

Nano Pocket: Duo Coupled

Leveling Shims

Mounting the brackets

Installing the Roll

Parts in the Box

---

Step 1: Leveling Shims (Optional)

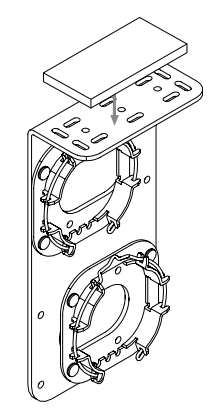

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

Step 2: Measuring the Brackets

• Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered with.
• Adjust accordingly

---

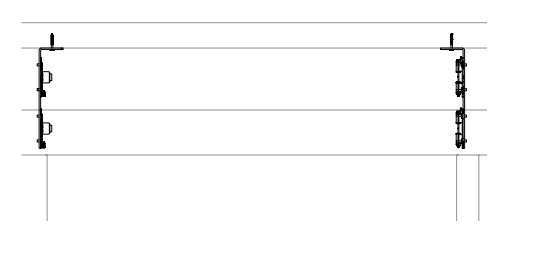

Step 3: Installing the Brackets

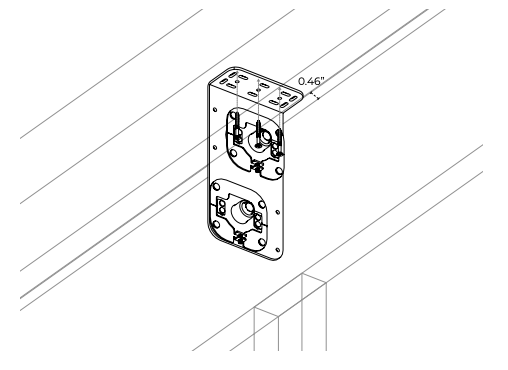

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

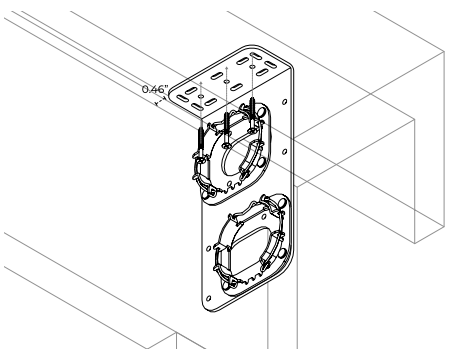

• Now, install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

---

Step 4: Installing the Roll

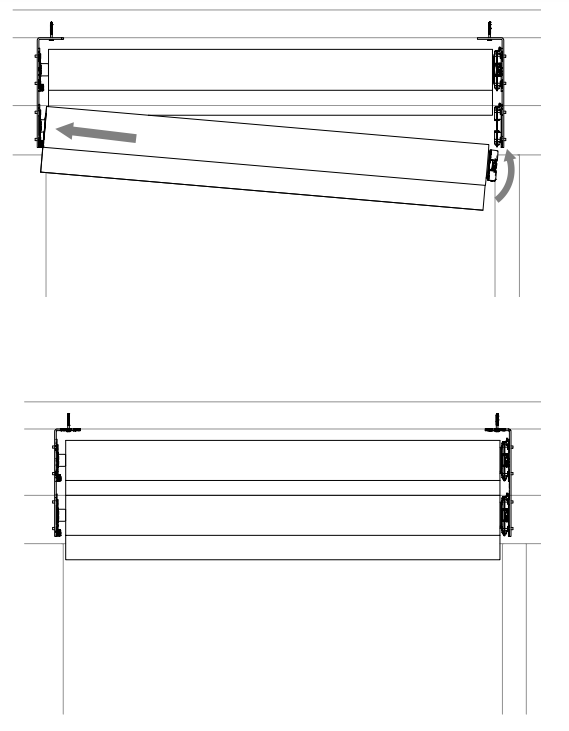

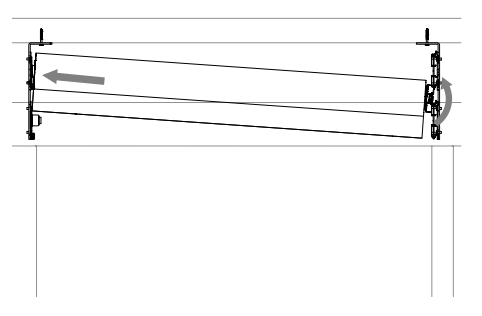

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the same step for the shades below.

---

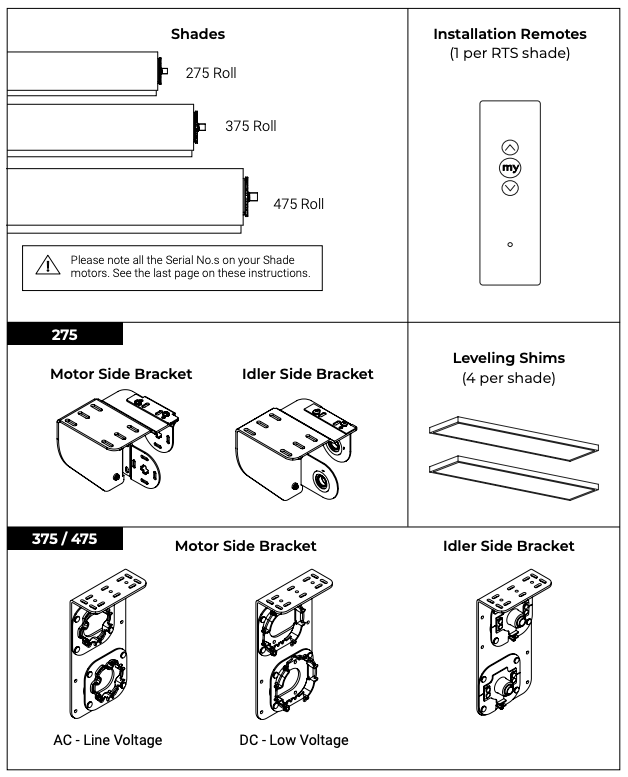

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
