Nano Pocket: 275 Single - Installation Instructions

---

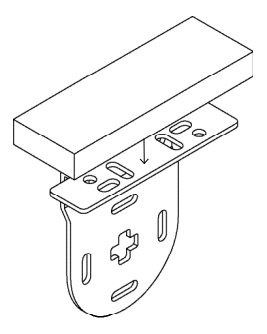

Step 1: Leveling Shims (Optional)

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

Step 2: Bracket Installation

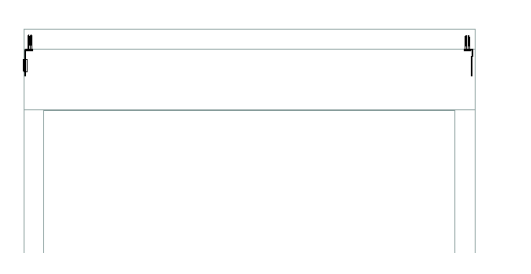

• Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered.
• Adjust accordingly

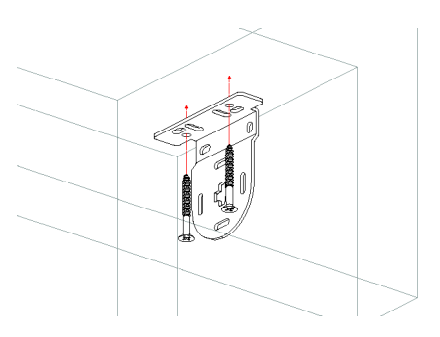

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

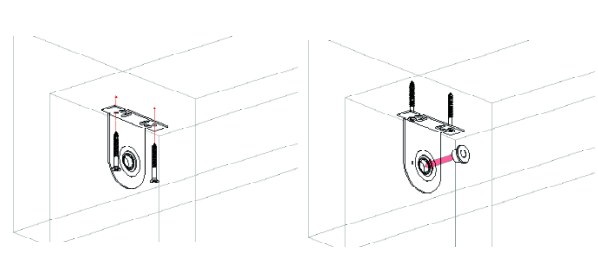

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

---

Step 3: Installing the Roll

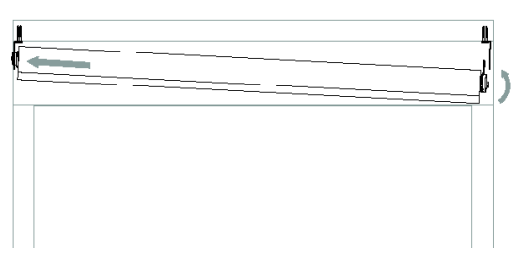

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

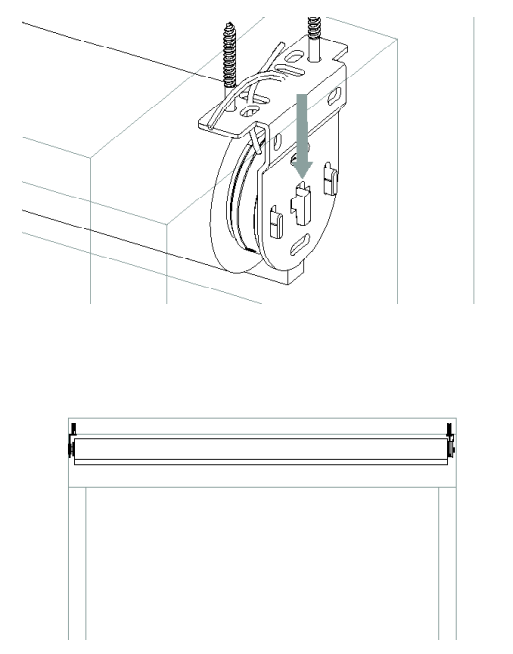

• Clip the motor plate on to the the bracket.

---
