Nano Pocket: 375 / 475 Single - Installation Instructions

---

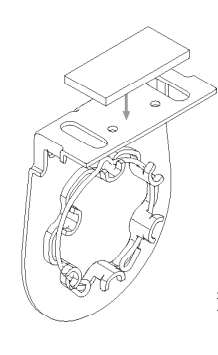

Step 1: Leveling Shims (Optional)

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

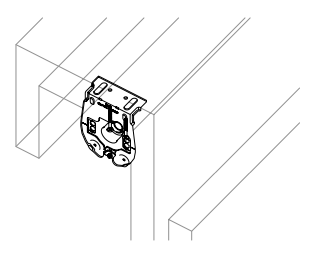

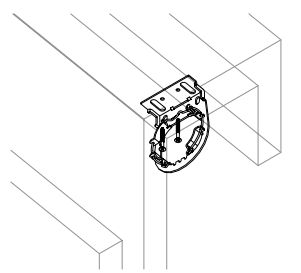

Step 2: Bracket Installation

• Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered with.
• Adjust accordingly

---

Step 3a: Bracket Installation (Using 24v Low Voltage Motors)

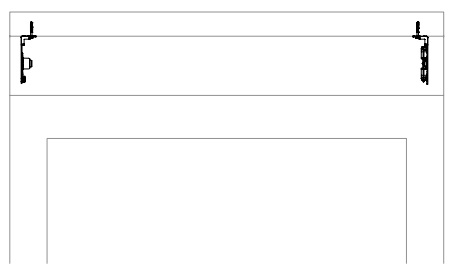

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

---

Step 3b: Bracket Installation (Using 110v AC Motors)

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

---

Step 4: Installing the Roll

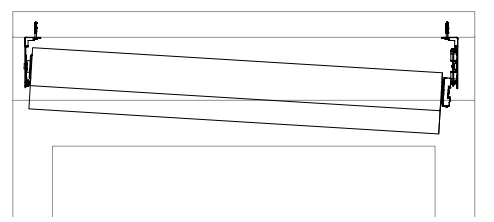

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
