Niño: Adding your Niño Shades to the SI Eco-System

Niño Indoor Shades

Complete guide to our expanded line of indoor shading solutions

Shade TypesAccessoriesProgramming & Integration

Box

Open Roll

Duo

Roman

Zebra

Woven Wood

Cellular

Trapezoidal Cellular

Sheer

Low Voltage Power Panel

Side Channels

SI IP Bridge

1k PoE Switch

5 Channel Keypad

SI Eco-System - Zigbee

SI Eco-System - PoE

Integrating into Smart Things - Zigbee

Integrating into Bond - RF

RF Remote - Standalone

Adding a Zigbee Niño Shade to TRO.Y / Helen Adding Poe Niño Shade to TRO.Y

Firmware Updates

✅ Important: Make sure both your TRO.Y 2 and Helen firmware is up to date

Click here for the latest firmware's

---

Adding a Zigbee Niño Shade to TRO.Y / Helen

• Make sure your Zigbee network is established in TRO.Y and all necessary Zigbee Routers are connected

💡 Tip: Setting up a Zigbee Network

---

• In the TRO.Y GUI: Select the INTEGRATION TABLE

• Next, select the DEVICE TABLE

• Next, press the OPEN ZIGBEE PAIRING button

• Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog

• Now you will put the shade into Discovery Mode by pressing and holding the Motor Head button until the shade jogs twice, the LED will turn RED

• When your shade populates in the Device Table you can Label it, then Save Edits

• Repeat this process to add additional shades
• When all shades are added press the yellow CLOSE ZIGBEE PAIRING button
• Press the BACK button in the Device Integration Table to return to the Aggregate Integration Table page and Commit the Integration table by pressing the COMMIT INTEGRATION TABLE button yellow TABLE IS NOT COMMITTED will turn Green and say TABLE IS COMMITTED

💡 Tip: Zigbee Motor Configuration

---

Adding Poe Niño Shade to TRO.Y

✅ Important: If you are using PoE motors, start by adding the IP Bridge

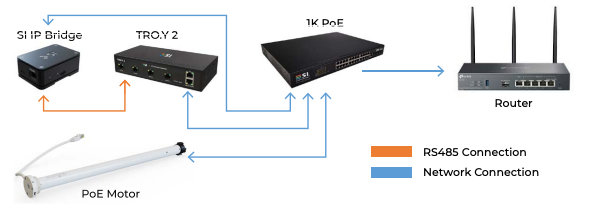

1. Connect the IP Bridge
   • Connect the PoE side to a network switch
   • Connect the RS485 side to one of the BUS outs
   • Thats it!!
2. Follow the next steps to discover the PoE motors, they will appear and operate exactly like the RS-485 motors.




✅ Important: The SI Niño PoE Motors, IP Bridge, and TROY are required to all be on the same network

• In the TRO.Y GUI: Select the INTEGRATION TABLE

• Next, select the DEVICE TABLE

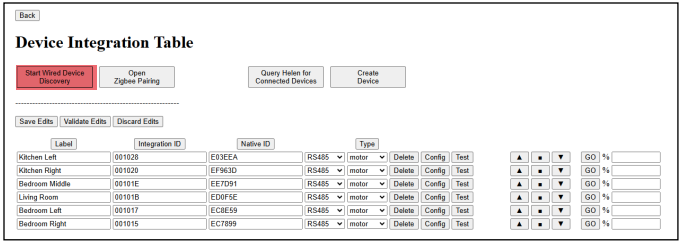

• Click the Start Wired Discovery button.

• As devices are found, they will automatically appear in the device table.
• The discovery process will continue until you click the yellow Stop Wired Discovery button.
• Clicking on the Accept Edits button will save all discovered devices to the Browser.
• Click the Back button
• In order to save all your changes to TROY, you will need to hit the yellow Commit Integration Table button.
• The button will turn green and say Table is Committed when saved.

💡 Tip: PoE Motor Configuration

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
