Niño Open Roll: Install and Setup Guide

---

Article Links:

• Installation

  • Inside or Outside Mount

  • Mounting the Brackets

  • Installing an Inside Mount

  • Installing an Outside Mount

• Setup

  • Wake up your shade

  • Adjusting Limits

  • Changing Motor Rotation

  • Changing Motor Speed

  • Tilt Mode Toggle

  • Factory Reset Motor

• Niño Remote Settings

  • Adding a Remote

  • Removing a Remote

  • Pairing an additional Nino motor to a Remote

  • Unpair a remote from a Nino motor

  • Install the Remote Holder

• Charging the Shade

• Parts in the Box

• Adding your Niño to the SI Eco-System

• Adding your Niño shades to Smart Things

• Using the Low Voltage Power Panel

• Programming the Wall Remote

---

Installation

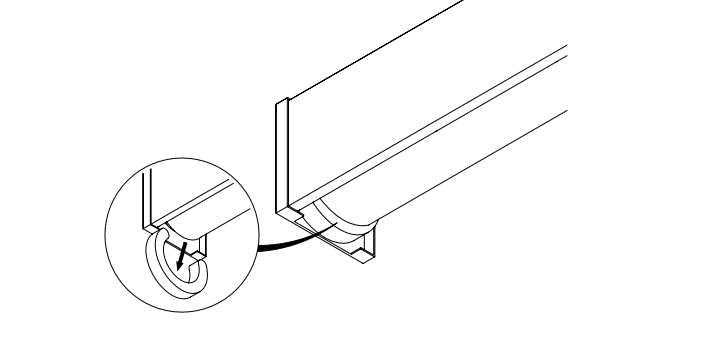

Foam & Bracket Removal

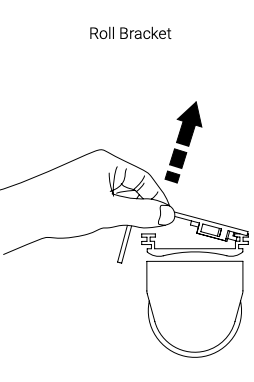

• Ensure all shipping foam is removed from both the motor head side and the idler side of the shade. Remove brackets from the shades as shown.

---

Outside / Inside Mount

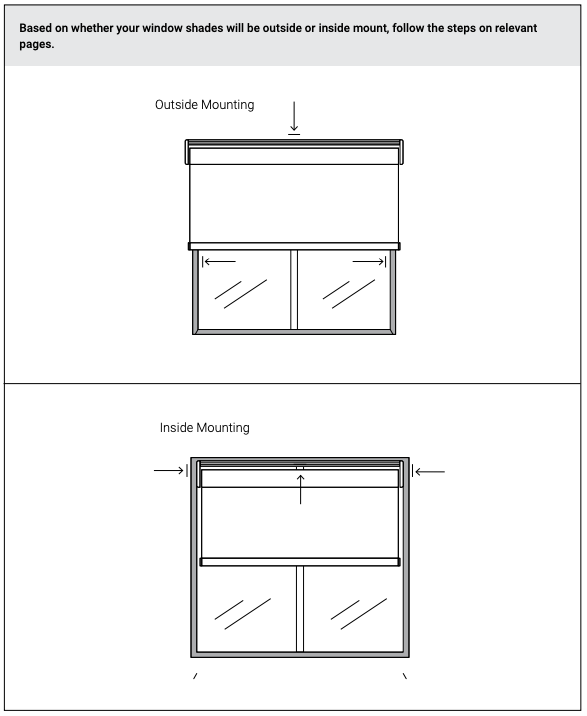

• Determine whether your window shades will be outside or inside mount, and follow the corresponding steps.

---

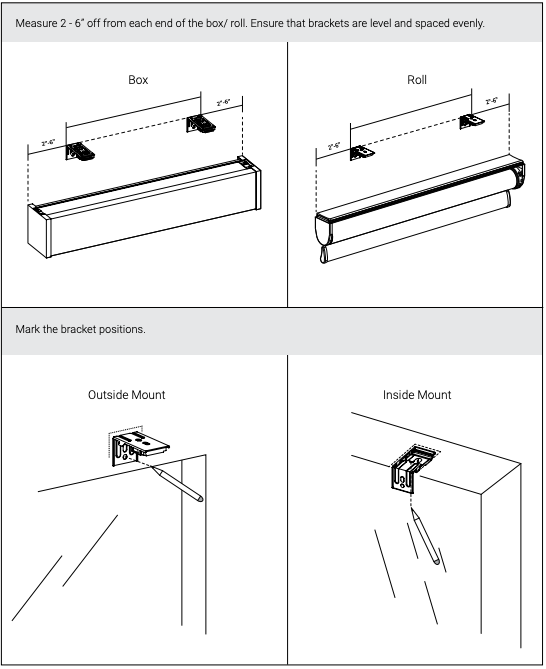

Installing Brackets – Measuring & Marking

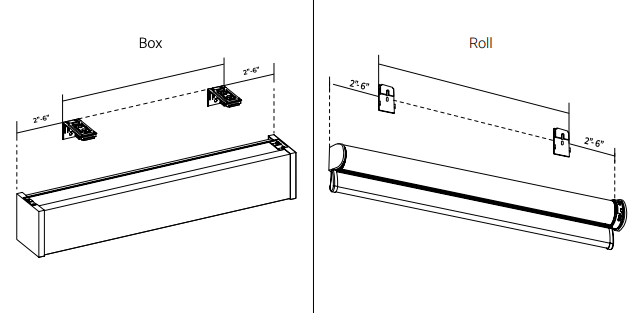

• Measure 2–6 inches from each end of the box/roll. Ensure brackets are level and spaced evenly. Mark the bracket positions.

---

Installation - Inside Mount

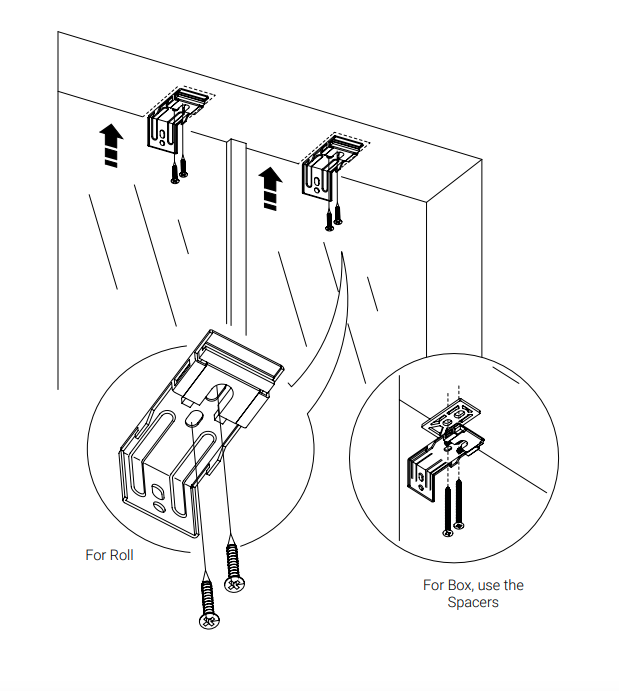

• Use the appropriate fasteners to securely mount the brackets

• Roll: Follow specific steps for open roll shades.

---

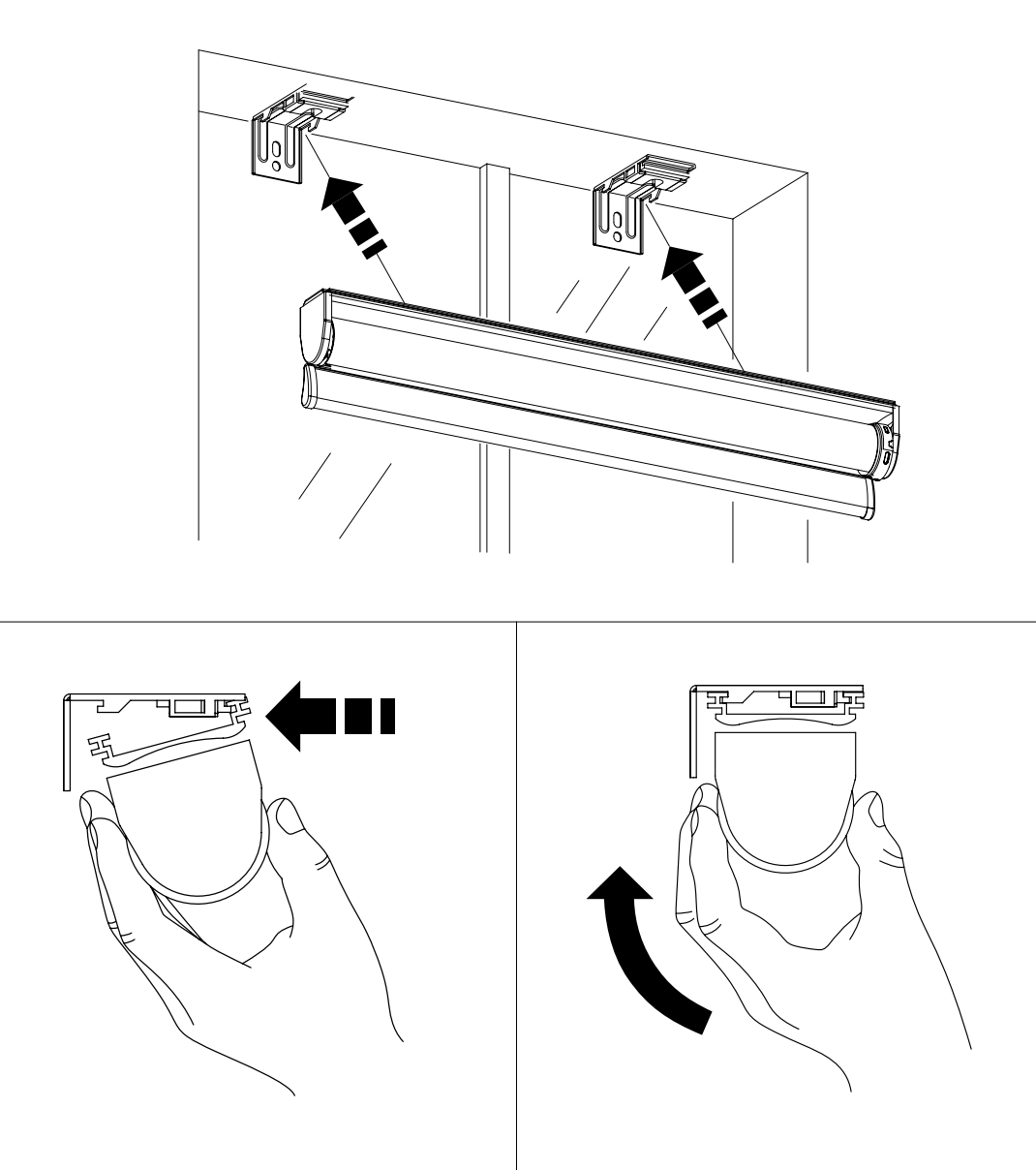

Installation – Inside Mount - Roll

---

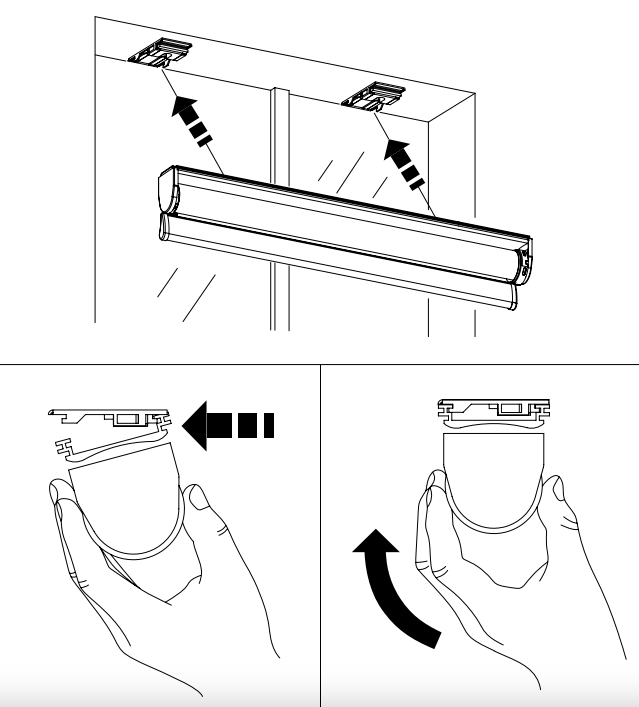

Mount the Roll on the installed brackets as shown below.

---

Installation - Outside Mount

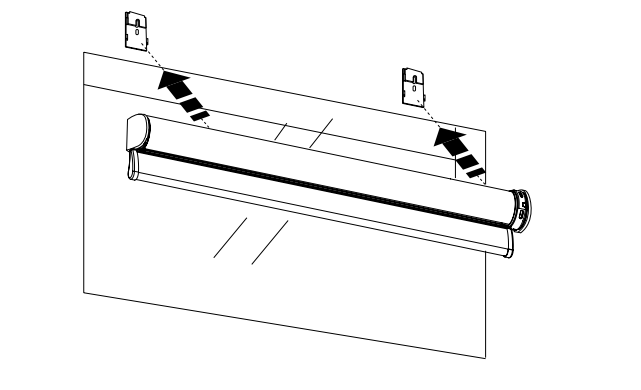

• Use the appropriate fasteners to securely mount the brackets

• Roll: Follow specific steps for open roll shades.

---

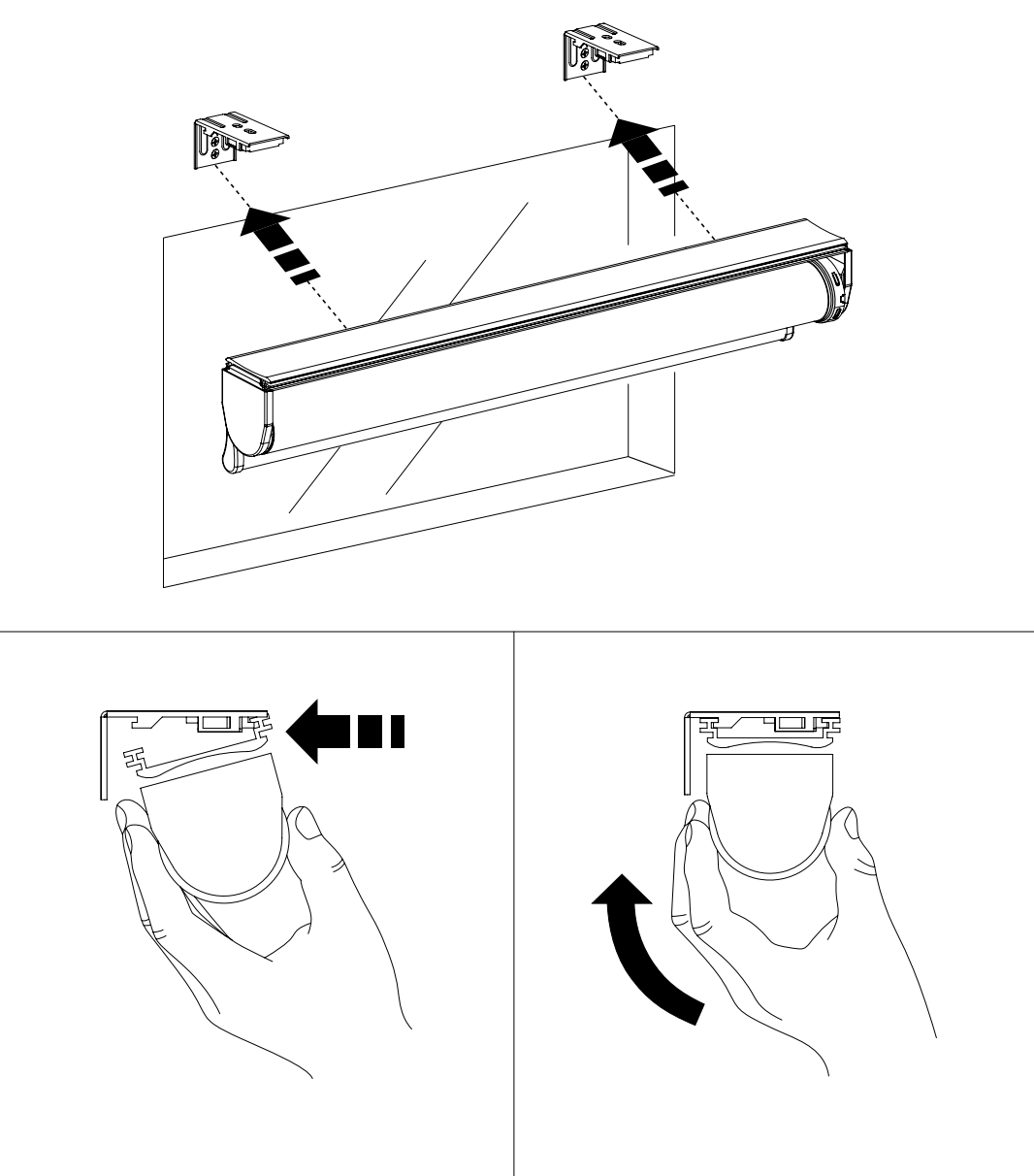

Installation – Outside Mount - Roll

---

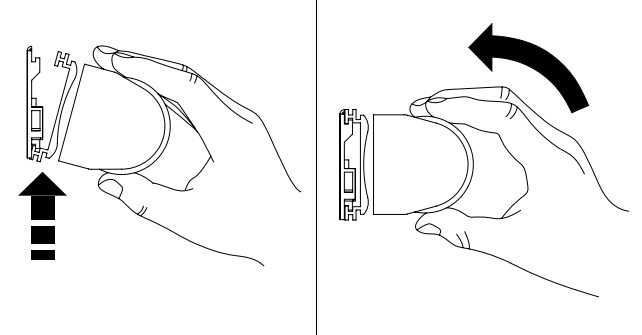

Mount the Roll on the installed brackets as shown below.

---

Setup

Wake up your Shade

Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog



Adjusting Limits

Adjusting the Upper limit

• Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
• Move the shade to the desired location. c. Simultaneously press “Up” & “Stop” on the remote until the motor jogs once. Adjusting the Lower limit a. Simultaneously press “Down” & “Stop” on the remote until the motor jogs once. b. Move the shade to the desired location.
• Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.

Adjusting the Lower limit

• Simultaneously press “Down” & “Stop” on the remote until the motor jogs once.
• Move the shade to the desired location.
• Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.

---

Change Nino Motor rotation

• With no limits
  • Press and hold the “Up” & “Down” button on the remote until the motor jogs once.
• With limits
  • Press the programming button on the back of the remote until the motor jogs once.
  • Simultaneously press the “Up” & “Down” button for one until the motor jogs once.

---

Changing Motor Speed

Increasing Speed

• Press the programming button on the back of the remote until the motor jogs once
• Press the “Up” button c. Press the “Up” button to increase speed, or “Down” to decrease speed. The motor will jog to indicate current set speed.
  • 1 jog level 1
  • 2 jog level 2
  • 3 jog level 3
• If motor does not respond, it has reached its maximum speed.

Decreasing Speed

• Press the programming button on the back of the remote until the motor jogs once
• Press the “Down” button
• Press the “Down” button to decrease speed, or “Up” to increase speed. The motor will jog to indicate current set speed.
  • 1 jog level 1
  • 2 jog level 2
  • 3 jog level 3
• If motor does not respond, it has reached its maximum speed

---

Tilt Mode

To switch between tilt mode (moves an inch with each press) and running modes (moves continuously)

• Ensure the shade limits are set, and then follow these steps below:
  • Using the remote, hold the UP and DOWN buttons for around 5 seconds; the motor will jog once.
  • After the motor jogs, press the STOP button, the motor will jog once, indicating it has entered Tilt mode, this is a toggle feature.

NOTE: To return to running mode for continuous movement, simply follow the procedure outlined above again.

---

Factory Reset the Motor

⚠️ : This will erase limits, and any paired remotes

• Push and Hold the Motor Head button for 4 Jogs (Down - Up)

---

---

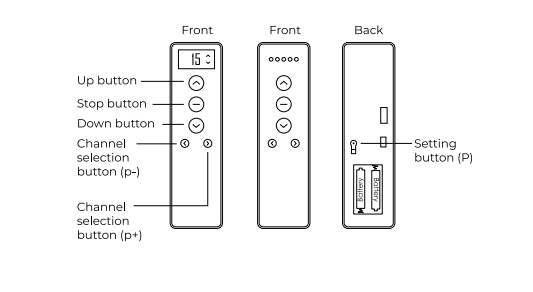

Nino Remote Settings

Adding a Remote

• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the new Remote control you want to add until the motor jogs once

Removing a Remote

• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the new Remote control you wish to remove until the motor jogs once

Pairing an additional Nino motor to a Remote

• Press the programming button on the head of the motor for 1 jog.
• Press the “Stop” button on the remote for 1 jog.

Unpair a remote from a Nino motor

• Press the programming button on the head of the motor for 1 jog.
• Press the “Stop” button on the remote for 1 jog.

---

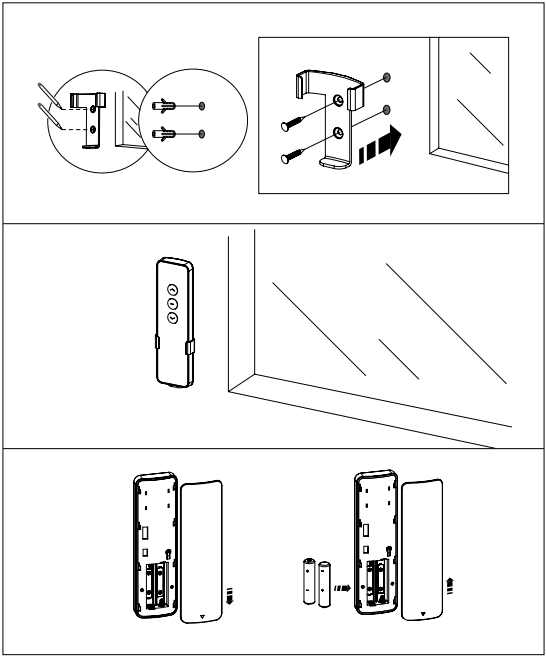

How to Install the Remote Holder

Instructions for securing the remote holder.

---

Charging the Shade

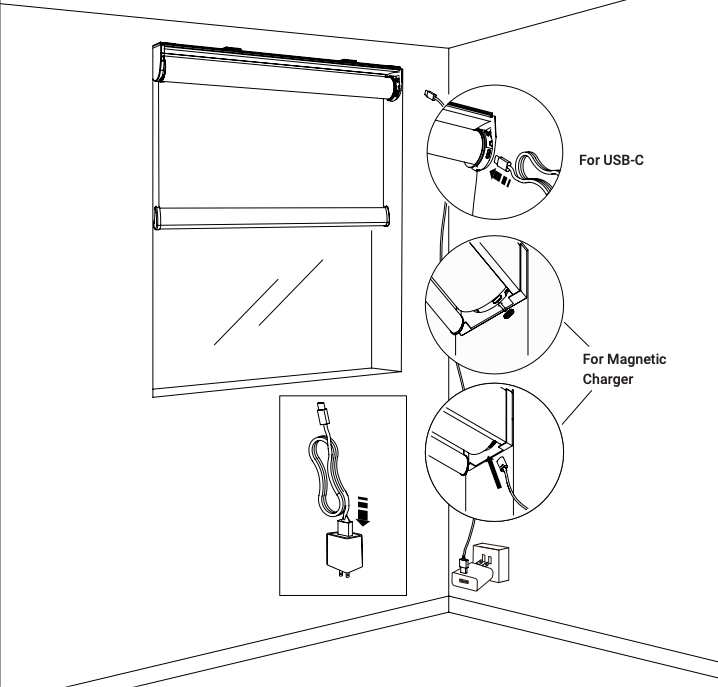

USB-C & Magnetic Charging Cable

• Charging: Blinking Green LED
• Fully Charged: Solid Green LED
• Low Battery: Blinking Red LED

---

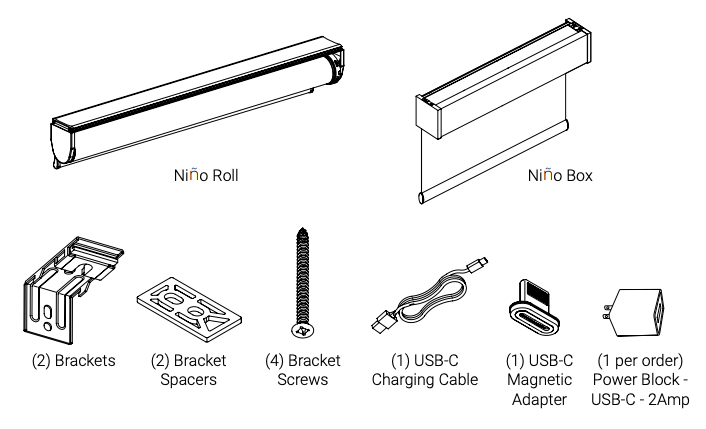

Parts in the Box

Roll and Box types
Inside and Outside mount

• (2) Brackets
• (2) Bracket Spacers
• (4) Bracket Screws
• (1) USB-C Charging Cable
• (1) USB-C Magnetic Adapter
• (1 per order) Power Block - USB-C - 2Amp
• AAA Battery

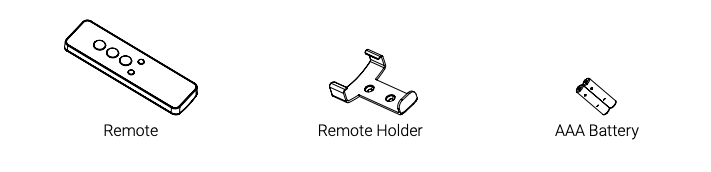

• Remote Holder
• Remote

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
