Solo 3: RTS Screen Control via Pegasus (IR, 12V Trigger, or Contact Closure)

This article explains how to control an RTS screen using the GPIO inputs on the Pegasus device. Control options include IR, 12V trigger, or contact closure, depending on your system configuration.

---

Programming an RTS Motor:

You can control the RTS motor using GPI/O inputs or 485 commands.

• Power Up Pegasus:
  Use the Terminal Block or 485 Bus to supply power.
  Make sure the Local LED (red) is ON.
• Put the Motor in Learn Mode:
  • With a remote: Press and hold Up + Down until the motor jogs once.

💡Tip: You can also push and hold the programming button on the back of the remote until the shade jogs.

•
  • Without a remote: Press and hold the programming button on the motor head until it jogs once.
  • Note: Some RTS motors have a yellow LED that will start flashing in learn mode.
• Program the Motor to Pegasus:
  Press the PROG button on Pegasus.
  The motor will jog once, confirming it’s been paired.


---

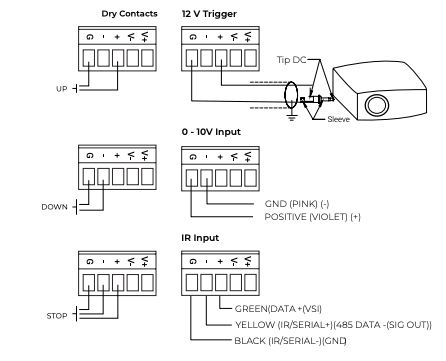

GPI/0 and Dry Contact Pinouts:

---

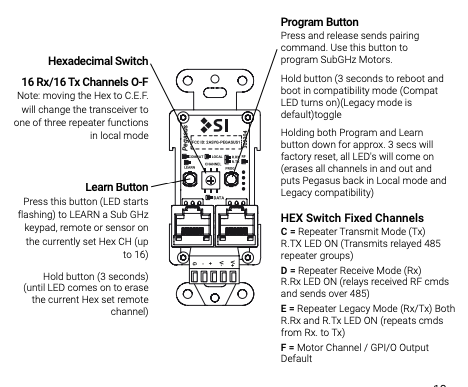

Pegasus Button Guide:

---

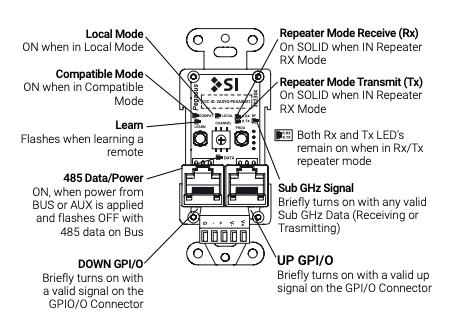

LED Details:

---
