Installation
Foam & Bracket Removal
- Ensure all shipping foam is removed from both the motor head side and the idler side of the shade. Remove brackets from the shades as shown.
Outside / Inside Mount
✅ Important: The brackets will come attached to the shade.
- Determine whether your window shades will be outside or inside mount, and follow the corresponding steps.
Installing Brackets – Measuring & Marking
- Measure 2–6 inches from each end of the box/roll. Ensure brackets are level and spaced evenly. Mark the bracket positions.
Installation - Inside Mount
- Use the appropriate fasteners to securely mount the brackets
- Box: Follow specific steps for box shades.
Installation – Inside Mount - Box
- Use the provided fasteners to secure the brackets in marked positions.
✅ Important: For box shades, use the provided spacers.
Mount the Box on the installed brackets as shown below.
Installation - Outside Mount
- Use the appropriate fasteners to securely mount the brackets
- Box: Follow specific steps for box shades.
Installation – Outside Mount - Box
- Use the provided fasteners to secure the brackets in marked positions.
✅ Important: For box shades, use the provided spacers.
Setup
Wake up your Shade
Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog
Adjusting Limits
Adjusting the Upper limit
- Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
- Move the shade to the desired location. c. Simultaneously press “Up” & “Stop” on the remote until the motor jogs once. Adjusting the Lower limit a. Simultaneously press “Down” & “Stop” on the remote until the motor jogs once. b. Move the shade to the desired location.
- Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.
Adjusting the Lower limit
- Simultaneously press “Down” & “Stop” on the remote until the motor jogs once.
- Move the shade to the desired location.
- Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.
Change Nino Motor rotation
- With no limits
- Press and hold the “Up” & “Down” button on the remote until the motor jogs once.
- With limits
- Press the programming button on the back of the remote until the motor jogs once.
- Simultaneously press the “Up” & “Down” button for one until the motor jogs once.
Changing Motor Speed
Increasing Speed
- Press the programming button on the back of the remote until the motor jogs once
- Press the “Up” button c. Press the “Up” button to increase speed, or “Down” to decrease speed. The motor will jog to indicate current set speed.
- 1 jog level 1
- 2 jog level 2
- 3 jog level 3
- If motor does not respond, it has reached its maximum speed.
Decreasing Speed
- Press the programming button on the back of the remote until the motor jogs once
- Press the “Down” button
- Press the “Down” button to decrease speed, or “Up” to increase speed. The motor will jog to indicate current set speed.
- 1 jog level 1
- 2 jog level 2
- 3 jog level 3
- If motor does not respond, it has reached its maximum speed
Tilt Mode
To switch between tilt mode (moves an inch with each press) and running modes (moves continuously)
- Ensure the shade limits are set, and then follow these steps below:
- Using the remote, hold the UP and DOWN buttons for around 5 seconds; the motor will jog once.
- After the motor jogs, press the STOP button, the motor will jog once, indicating it has entered Tilt mode, this is a toggle feature.
NOTE: To return to running mode for continuous movement, simply follow the procedure outlined above again.
Factory Reset the Motor
⚠️ Warning: This will erase limits, and any paired remotes
- Push and Hold the Motor Head button for 4 Jogs (Down - Up)
Nino Remote Settings
Adding a Remote
- Press the programming button on the Remote control currently paired to the motor until the motor jogs once
- Press the programming button on the Remote control currently paired to the motor until the motor jogs once
- Press the programming button on the new Remote control you want to add until the motor jogs once
Removing a Remote
- Press the programming button on the Remote control currently paired to the motor until the motor jogs once
- Press the programming button on the Remote control currently paired to the motor until the motor jogs once
- Press the programming button on the new Remote control you wish to remove until the motor jogs once
Pairing an additional Nino motor to a Remote
- Press the programming button on the head of the motor for 1 jog.
- Press the “Stop” button on the remote for 1 jog.
Unpair a remote from a Nino motor
- Press the programming button on the head of the motor for 1 jog.
- Press the “Stop” button on the remote for 1 jog.
How to Install the Remote Holder
Instructions for securing the remote holder.
Charging the Shade
USB-C & Magnetic Charging Cable
- Charging: Blinking Green LED
- Fully Charged: Solid Green LED
- Low Battery: Blinking Red LED
Parts in the Box
Roll and Box types
Inside and Outside mount
- (2) Brackets
- (2) Bracket Spacers
- (4) Bracket Screws
- (1) USB-C Charging Cable
- (1) USB-C Magnetic Adapter
- (1 per order) Power Block - USB-C - 2Amp
- AAA Battery
- Remote Holder
- Remote

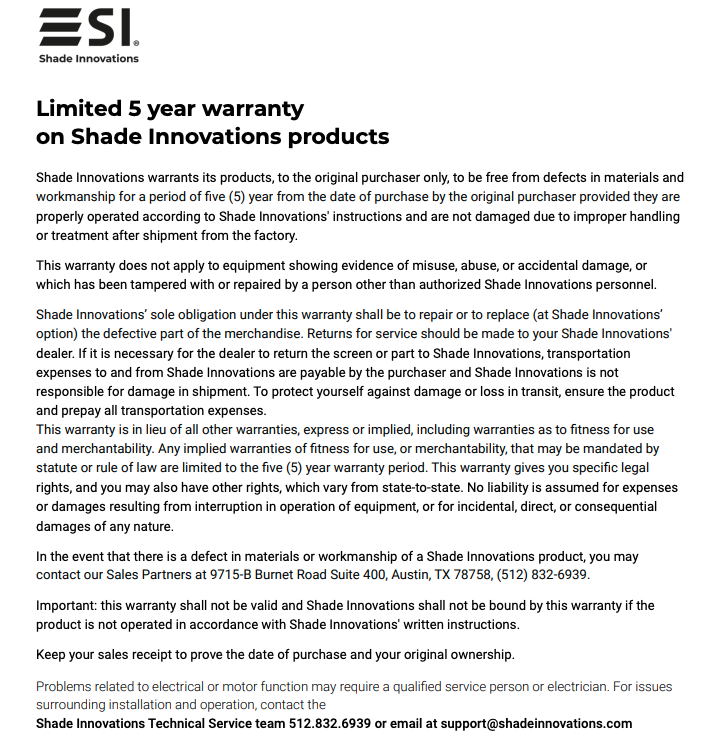

Warranty
For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
