Table of Contents:

Mounting the Brackets

Mounting the first band

Mounting the Coupler brackets

Securing the extrusions

Installing the fabric rolls

Leveling the hembars

Installing the fascia

Parts in the Box

---

Step 1: Mounting the Brackets:

• Install wall bracket 4 - 6 inches from the jamb using the supplied screws.

• Spacer Blocks - used to clear an obstruction in the fabric path.
  • . Connect spacer blocks to shade brackets before installation.

⚠️ Warning: Do not use more than 4 spacer blocks per bracket.

• Leveling Shims - used if the window frame is out of level.
  • Connect to shade brackets before installation.

⚠️ Warning: Do not use more than 2 leveling shims per bracket.

---

Step 2: Mounting the first Band:

• Hang back shade extrusion onto wall brackets and centered.

---

Step 3: Mounting the Couplers:

• Install intermediate plate by inserting pins into t-slot in the shade extrusion.

• Repeat steps 1 - 3 for next extrusion.

---

Step 4: Securing the Extrusions to the Couplers:

• Secure extrusions by tightening helical insert.

---

Step 5: Locking the Extrusions in place:

• Lock extrusions in place.

---

Step 6: Installing the Fabric Rolls:

• Install the shade on the motor side with end cap.

---

Step 7: Installing the Fabric Rolls:

• 8. Adjust/deploy idler with provided tool.

---

Step 8: Installing the Fabric Rolls:

• With the first shade installed you are ready to install the next shade(s).

---

Step 9: Installing the Fabric Rolls:

• Install next shade.
• Insert the side that connects to previous shade then lift and align idler with coupler.

---

Step 10: Leveling the Hembars:

• If shade is not properly level.
• Pull the inner part of idler that connects to the previous shade idler and leave it connected.
• Rotate shade until is properly level with previous shade.
• Then push the shade back into the idler

• Repeat Steps 10 as needed depending the amount of shades ordered. (Max 4 shades per set)

---

Step 11: Installing the Fascia:

• Install the front cassette by inserting top edge into back cassette slot them slightly rotate down until snap in place.

• Repeat last step as needed depending the amount of shade ordered. (Max 4 shades per set)

---

Step 12: Installing Side Channels:

• Nano Box: 375 Coupled Shade - Side Channel Installation Instructions
• Nano: Coupled Shade - Wiring Pinouts

---

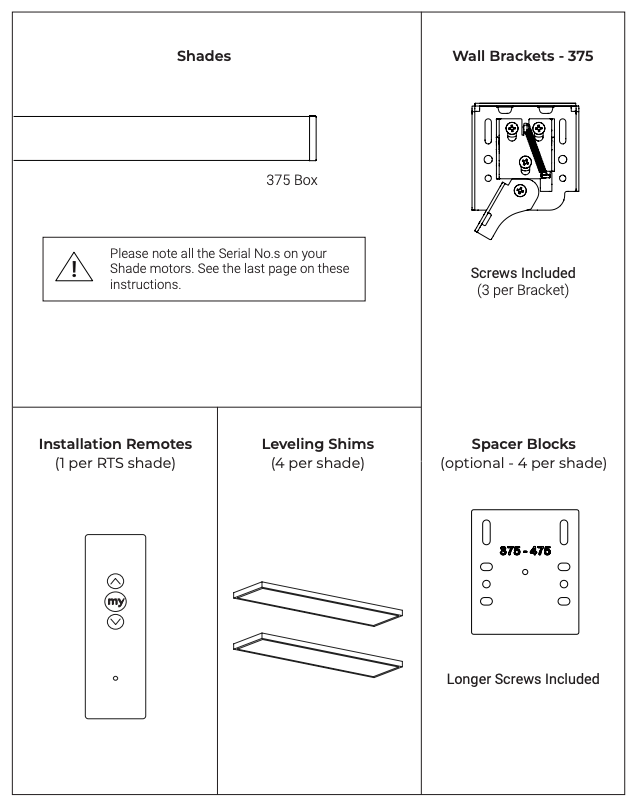

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
