Nano Coupled - Pocket Installation Guide

Nano Indoor Shades

Complete guide to our precision-engineered Nano shading solutions

Shade TypesAccessoriesProgramming & IntegrationWiring & Troubleshooting

Nano Box

Nano Open Roll

Nano Pocket

Nano Duo

Nano Coupled

Nano Manual

Janus

1K PoE Switch

SI IP Bridge

Kratos

TaHoma Switch

Side Channels

TRO.Y 2

Suite XVI

C4 Zigbee

Pocket Flap and Hanger Extrusions

SI Eco-System - 485

SI Eco-System - PoE

SI Eco-System - Zigbee

SI Eco-System - RTS

RF Remote - Standalone

Zigbee Remote Standalone

TaHoma Switch

Bond Bridge Pro - RTS Only

Bond Bridge Pro - EcoSystem Integration

3rd Party Integration

Wiring Pinouts

How to service the V2 Nano Box

How to swap a motor in a V2 Nano Box

How to swap a motor in a V1 Nano Box

How to fix roll overs and hembar jams

Nano Open Roll V2 motor Swap

How to fix Pin-holes in Blackout Fabric

Zigbee Troubleshooting

485 Troubleshooting

RTS Troubleshooting

Coupled 375 Box

Coupled Pocket

Coupled Pocket Duo

---

Table of Contents:

Leveling Shims

Installing the Brackets

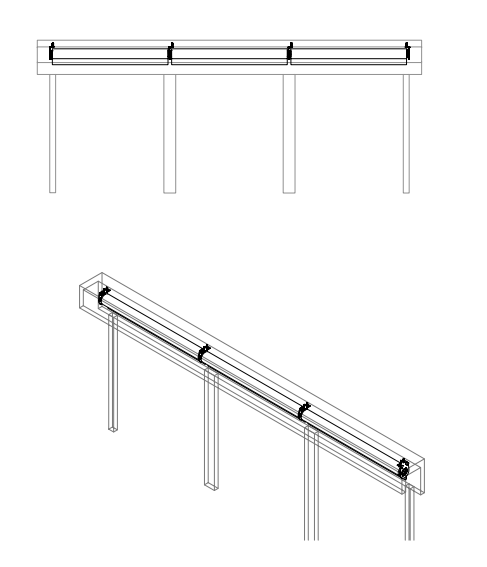

Installing the Rolls

Adjusting the Rolls

Leveling the Hembars

Parts in the Box

---

---

Step 1: Leveling Shims (Optional)

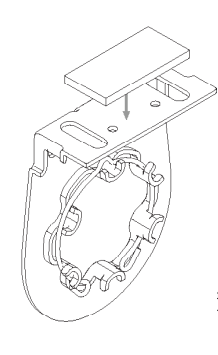

• Used if the window frame is out of level.
• Connect to shade brackets before installation

⚠️ Warning: Do not use more than 2 leveling shims per bracket.

---

Step 2: Installing the brackets

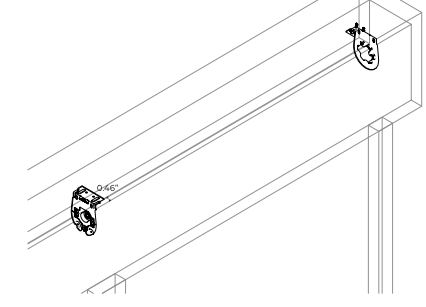

• Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

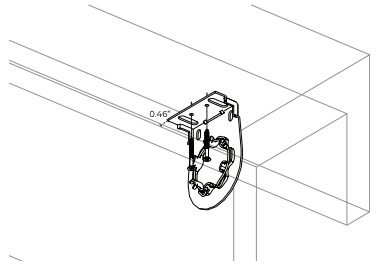

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
• The bracket to bracket width will be the dimension the shade was ordered from.
• Repeat this for additional shades bands.

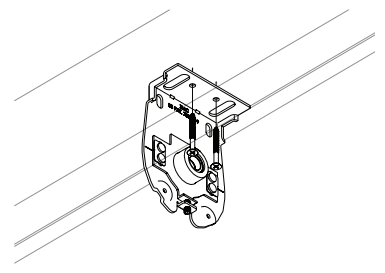

• Once the brackets are secured with the screws, we are ready to install the roll.

---

Step 3: Installing the Rolls

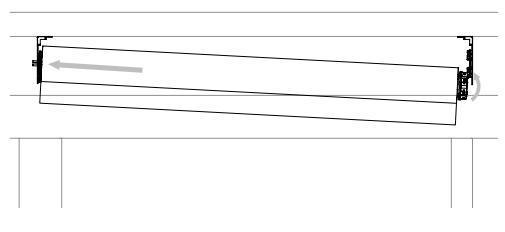

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the same step 4 for the following remaining shades.

---

Step 4: Adjusting the Rolls

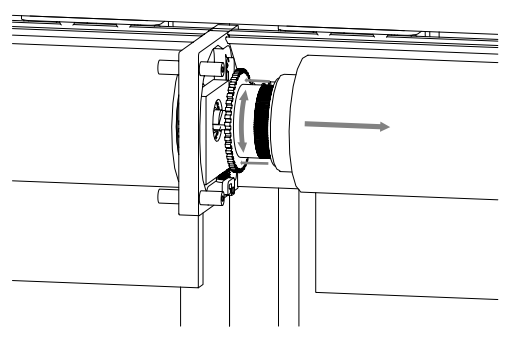

• Adjust/deploy idler with provided tool.
• Rotating this will cause the

---

Step 5: Leveling the Hembars:

• If shade is not properly level.

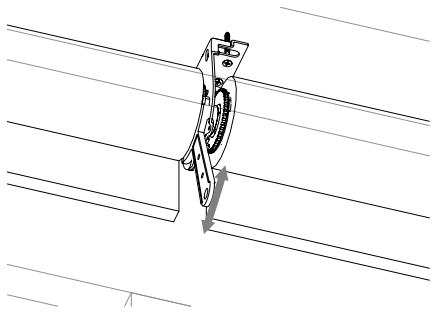

• Pull the inner part of idler that connects to the previous shade idler and leave it connected.
• Rotate shade until is properly level with previous shade.
• Then push the shade back into the idler

---

---

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
