TRO.Y 2 Spec Sheet

Q: What is TRO.Y 2?

TRO.Y 2 is a professional IP control gateway with a built-in 4 port 485 data hub. It features web browser-based commissioning, real time clock for scenes and events, and third party control integration with Control4, Crestron, Savant, Lutron, ELAN, and URC.

Q: What drivers are available for TRO.Y 2?

TRO.Y 2 has drivers for Control4, Crestron & Crestron HOME, ELAN, Josh (via C4 or Crestron driver), Lutron, RTI (coming soon), Savant, and URC.

Q: What is the maximum wiring distance for TRO.Y 2?

For 485 connections, the maximum distance is 200 feet per port (4 ports total). For Ethernet, the maximum distance is 328 feet from the router using standard Cat5e cable.

Q: How many devices can TRO.Y 2 support?

TRO.Y 2 supports 16 bus power units maximum per port, with 4 ports total, allowing for extensive shade and motor control across large installations.

Q: What products work with TRO.Y 2?

TRO.Y 2 works with Nano Shades, Zen 2 Shades, Solo 3 Screens, Decoflex keypads, Janus, Fontus, Duocoup, LinkPro Z, Moab, Helen, TaHoma, Situo RTS remotes, Pegasus, and more. Some products require a wireless bridge.

Q: How is TRO.Y 2 mounted?

TRO.Y 2 is 1RU/Half Rack compatible and can be mounted in half rack, full rack (single or with Janus), structured wiring box, or Din rail configurations using the included mounting hardware.

Specifications

Features

Built-in Real Time Clock

Create scenes and events for any motor type(s)

IP control with built in 4 port 485 data hub

Third party control integration with 485 motors via PoE (IP) and RS232

16 bus power units max per port (x4)

Advanced control options for all motor types, RTS and Zigbee via wireless bridge links

Built-in web browser based commissioning, multi-platform compatible (PC/MAC/Mobile)

Single interface for any motor, keypad, and wireless bridge programming

Third party lighting keypad integration

4x the processing and bus architecture compared to other 485 gateways

Innovative SI proprietary site files and templates to store and accelerate commissioning

Exclusive assignable node IDs for any motors saving time and money on third party controls

Power

InputPoE (AT/BT) 48v DC

Consumption5 Watts

Max wiring distance

485 (per port)200'

Ethernet328'

Material

TypeSheet metal plenum

UseIndoor only

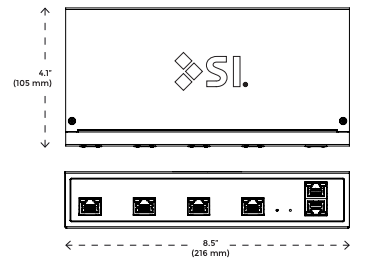

Dimensions

8.5" L x 4.1" D x 1.69" H

216 mm x 105 mm x 43 mm

1RU/Half Rack compatible

Compliance

CertificationCE Approved

Drivers

Control4Crestron & Crestron HOMEELANJosh (via C4 or Crestron driver)LutronRTI (coming soon)SavantURC

Supported protocols

TCP, UDP, TELNET Client, WEB Server, HTTP, UPNP, SDDP, Somfy Digital Network (SDN), The Somfy Synergy API, Zigbee/RTS via wireless communication links

485 ports 1-4 pinouts

485 Connection (TIA 568B) - Up to 200' max

1Data + WHT/ORG

2Data - ORG

3N/A WHT/GRN

4Power + BLUE

5Power + WHT/BLUE

6N/A GRN

7Ground - WHT/BRWN

8Ground - BRWN

Helen port pinouts

232 Connection EIA-561 (DCE) - Up to 50' max

1N/A WHT/ORG

2N/A ORG

3N/A WHT/GRN

4Ground (SG) BLUE

5Data Output (RxD) WHT/BLUE

6Data Input (TxD) GRN

712v DC(+) Output WHT/BRWN

8N/A BRWN

PoE pinouts

IEEE 802.3 Connection (TIA 568B) - Up to 328' max

1DC + A WHT/ORG

2DC + A ORG

3DC - B WHT/GRN

4N/A BLUE

5N/A WHT/BLUE

6DC - B GRN

7DC - D WHT/BRWN

8DC - D BRWN

Parts in the box

#2027461 TRO.Y 2 unit, PoE Power Injector, Cat5e Patch Cable, 2 Universal Rack Ears, 1 Rack Mount Fascia, 10 Universal Mounting screws, 2 Din Rail Screws, 1 Long Rack Ear, 1.5 mm Hex Tool, 2 Universal Din Rail Brackets, 4 Rack Mount Screws, Quick Start Guide

Works with

Nano ShadesZen 2 ShadesSolo 3 ScreensDecoflex keypadsJanusFontusDuocoupLinkPro ZMoabHelenTaHoma switch & TaHomaSituo RTS remotesPegasusSmoove keypadsSidekick keypadsTelis remotesSolo remoteBond Bridge Pro w/ J4M35Jopplin enclosure kits

* Requires wireless bridge

32 shade block diagram example

Common mounting options

Half rack

Full rack - single

Full rack (TRO.Y & Janus)

Din rail mounting

Din rail mounting - 2

Structured wiring box

Alternative mounting options

Using universal rack ears

Using universal din rail brackets
