Josh.ai Integration Guide

Connect your TRO.Y system to Josh.ai for intelligent voice control and home automation

Overview

i

Prerequisite: Ensure both the TRO.Y and JOSH devices are connected to the same network.

▶

Video Tutorial

▼

!

Important: Currently Josh AI will not import groups from TRO.Y, and RTS motors connected via Pegasus.

→

Auto-Discovery

+

Manual Setup

?

Troubleshooting

Steps for Integration via Auto-Discovery

1

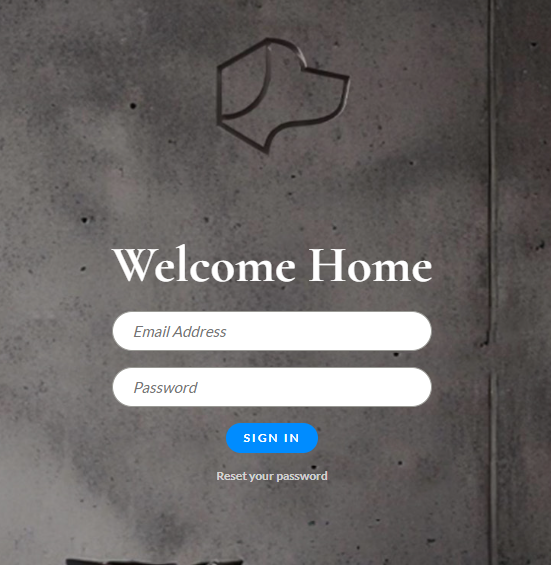

Log in to Josh Portal

▼

Log in to the JOSH Portal with your credentials.

2

Navigate to Configure Devices

▼

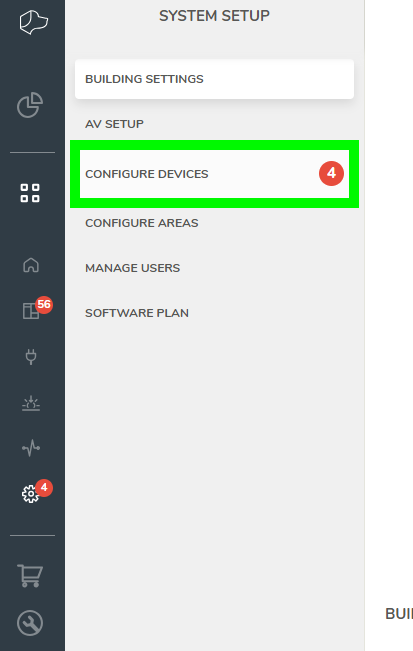

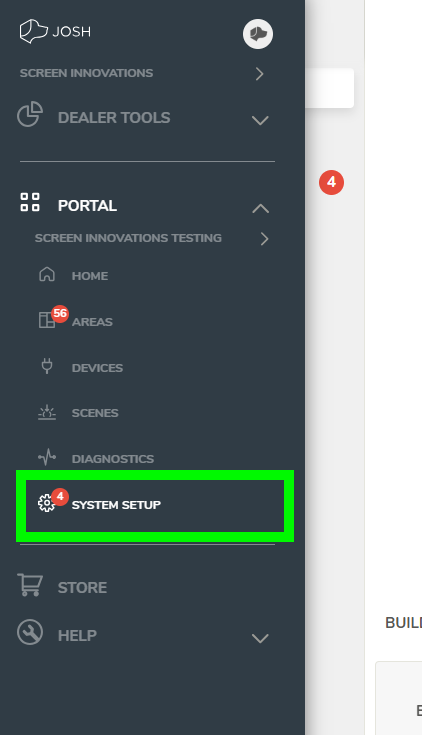

Navigate to Portal → System Setup → Configure Devices.

3

Check for Auto-Discovery

▼

If the TRO.Y device was automatically discovered, it will appear in the Configure Devices list.

i

If your TRO.Y device was not automatically discovered, proceed to the Manual Integration section.

4

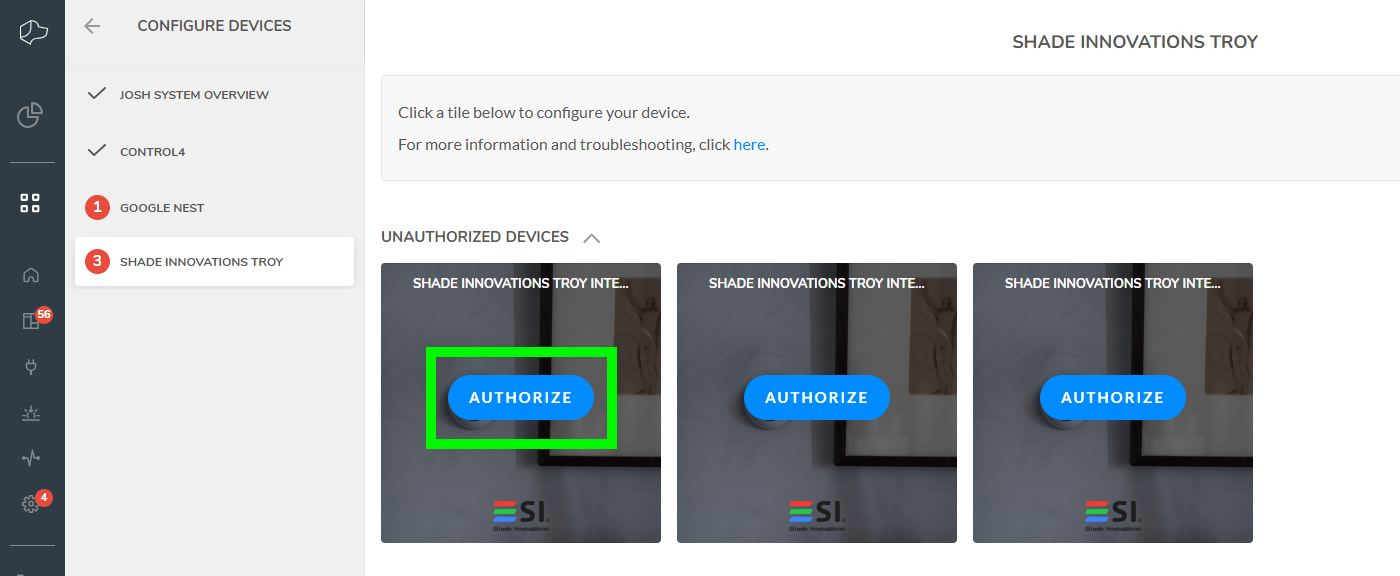

Authorize TRO.Y

▼

Select the Shade Innovations TROY from the list you wish to integrate and click Authorize.

5

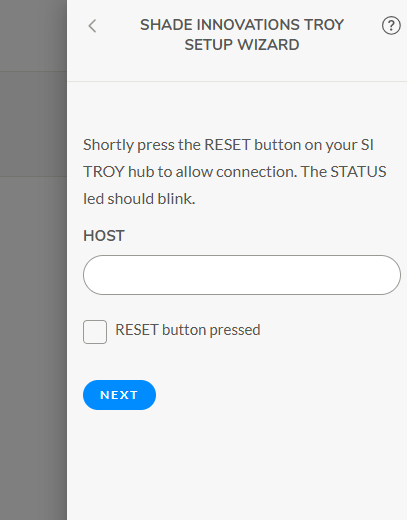

Enter IP Address & Authenticate

▼

Enter the TRO.Y device's IP address, then tap the reset button on the front of the TRO.Y. The red LED should begin blinking. Click Next.

6

Devices Populate in Areas

▼

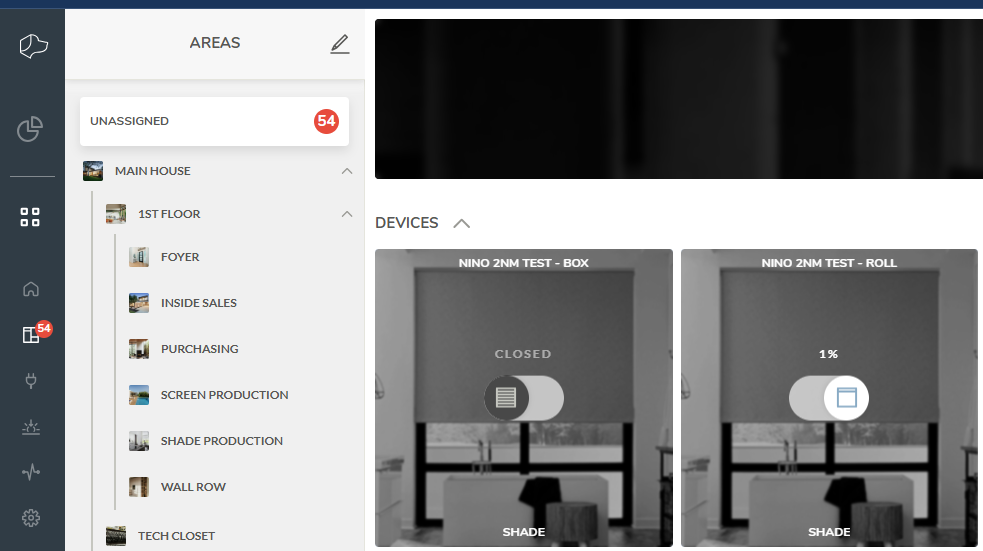

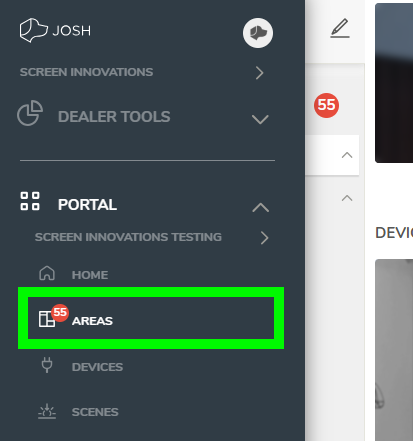

The devices connected to your TRO.Y will populate in the JOSH system under the Areas tab.

7

Assign Devices to Areas

▼

There are a few ways to assign devices to their area:

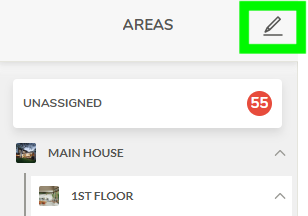

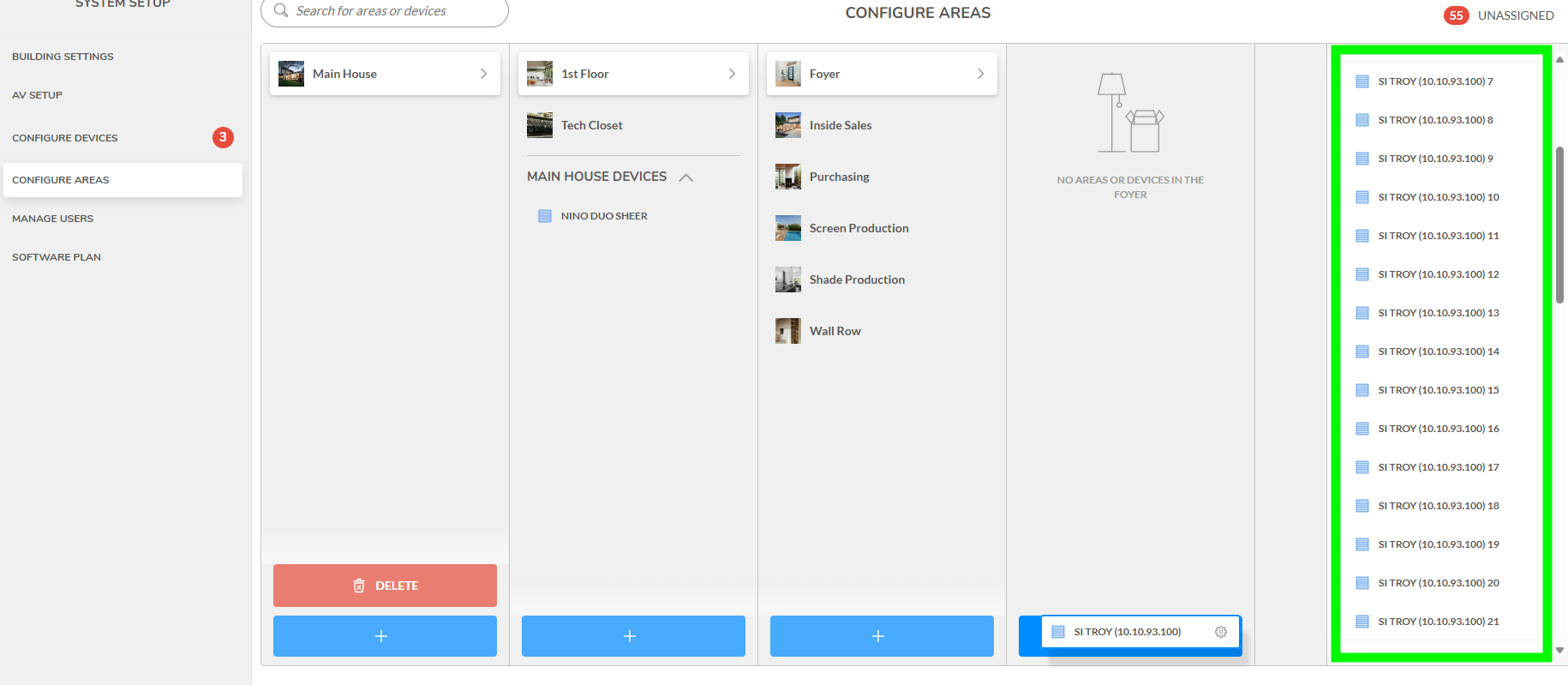

• Drag and Drop: Click Configure Areas to organize devices by dragging and dropping them into their respective areas. (Note: You have to drag and drop onto either the blue + button, or red delete button.)
• Settings Menu: Click the gear settings icon on the device itself, and assign a room through the drop down menu.
• Aliases: You can also assign aliases to your devices to better organize your system.

8

Control Your Devices

▼

Once configured, you can control TRO.Y devices through the JOSH system using the Areas page, mobile app, or voice commands.

Manual Integration (If TRO.Y is Not Auto-Discovered)

1

Navigate to Configure Devices

▼

Navigate to System Setup → Configure Devices.

2

Add Integration

▼

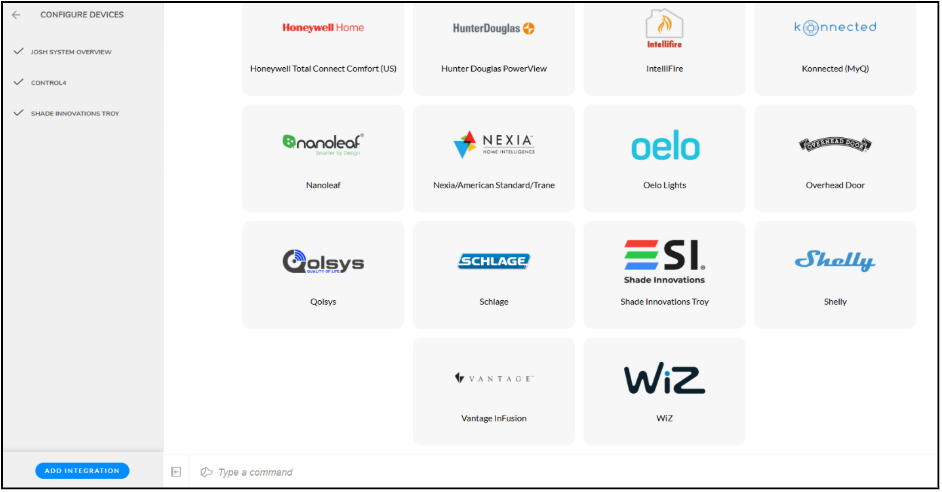

Click Add Integration, then search for and select the Shade Innovations logo.

3

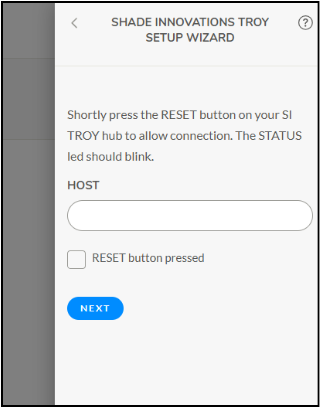

Enter IP Address & Authenticate

▼

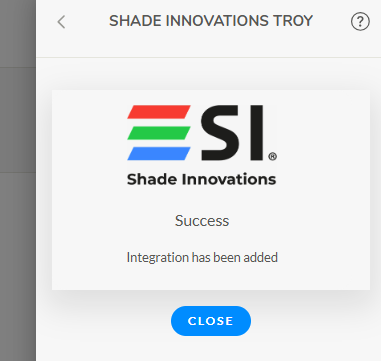

Enter the TRO.Y device's IP address, then tap the reset button on the front of the TRO.Y. The red LED should begin blinking. Click Next.

4

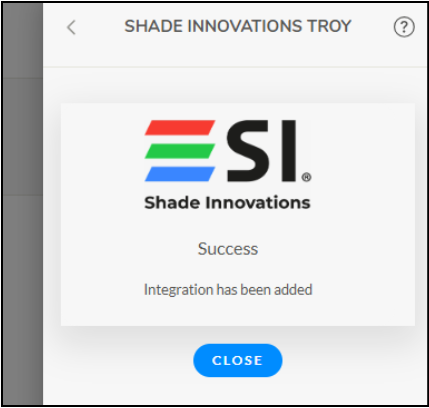

Devices Populate

▼

Devices will begin populating under the Areas tab.

!

If the TRO.Y device still does not connect, network issues may be preventing JOSH from detecting it. See the Troubleshooting section below.

Troubleshooting Tips

?

Common Issues & Solutions

▼

1

Verify Network Settings

Ensure both TRO.Y and JOSH are on the same network and can communicate with each other.

2

Power Cycle Devices

Power cycle both the TRO.Y and JOSH devices to reset network connections.

3

Confirm LED Status

Confirm the red LED is flashing on TRO.Y when attempting integration. This indicates the device is in pairing mode.

Contact Support

☎

Screen Innovations Support

▼

For issues, contact Screen Innovations:

• Phone: [phone] Option 3
• Website: www.screeninnovations.com
