Adding an RTS motor to the Bond Bridge Pro

Screen Innovations

Device Setup

▼

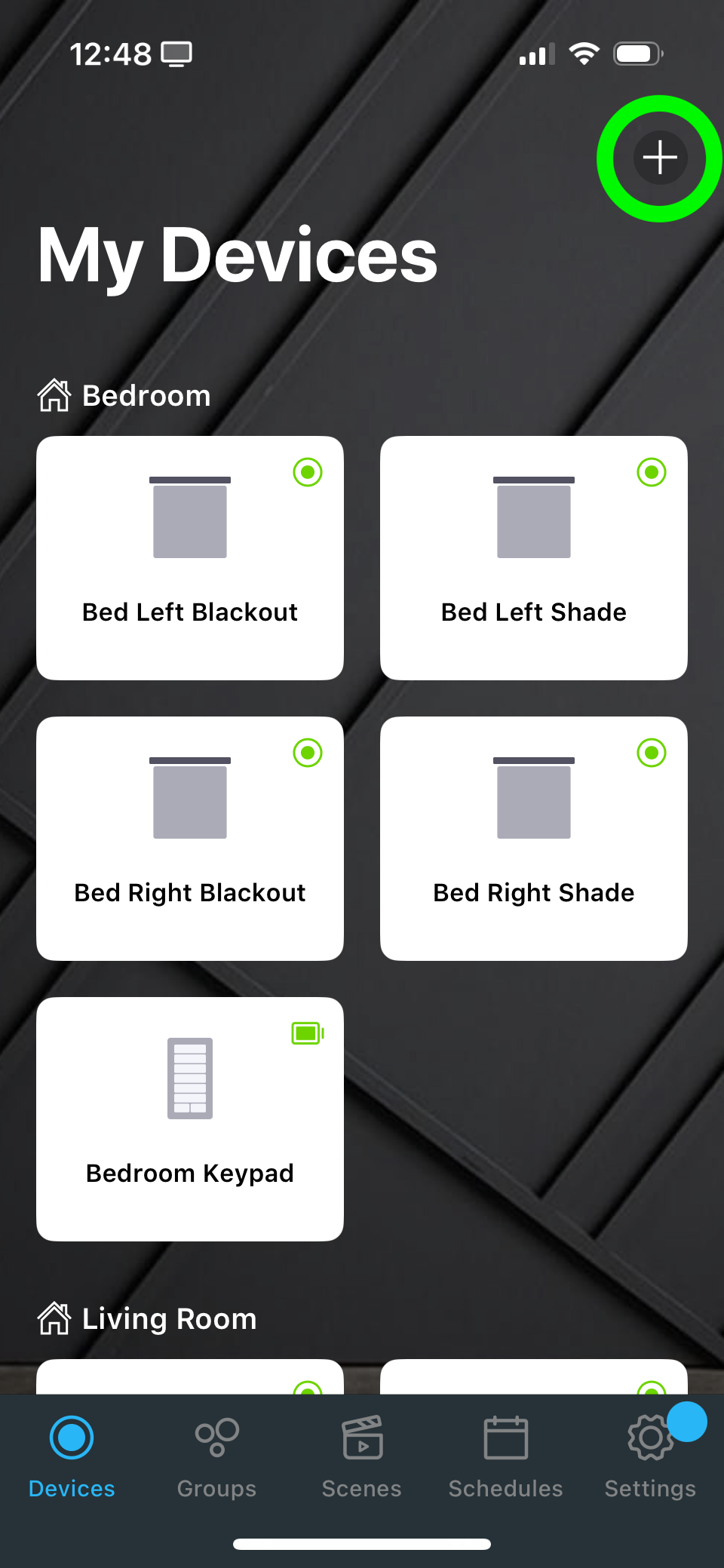

1. Access device menu: From the devices tab, press the + button in the top right corner of the screen

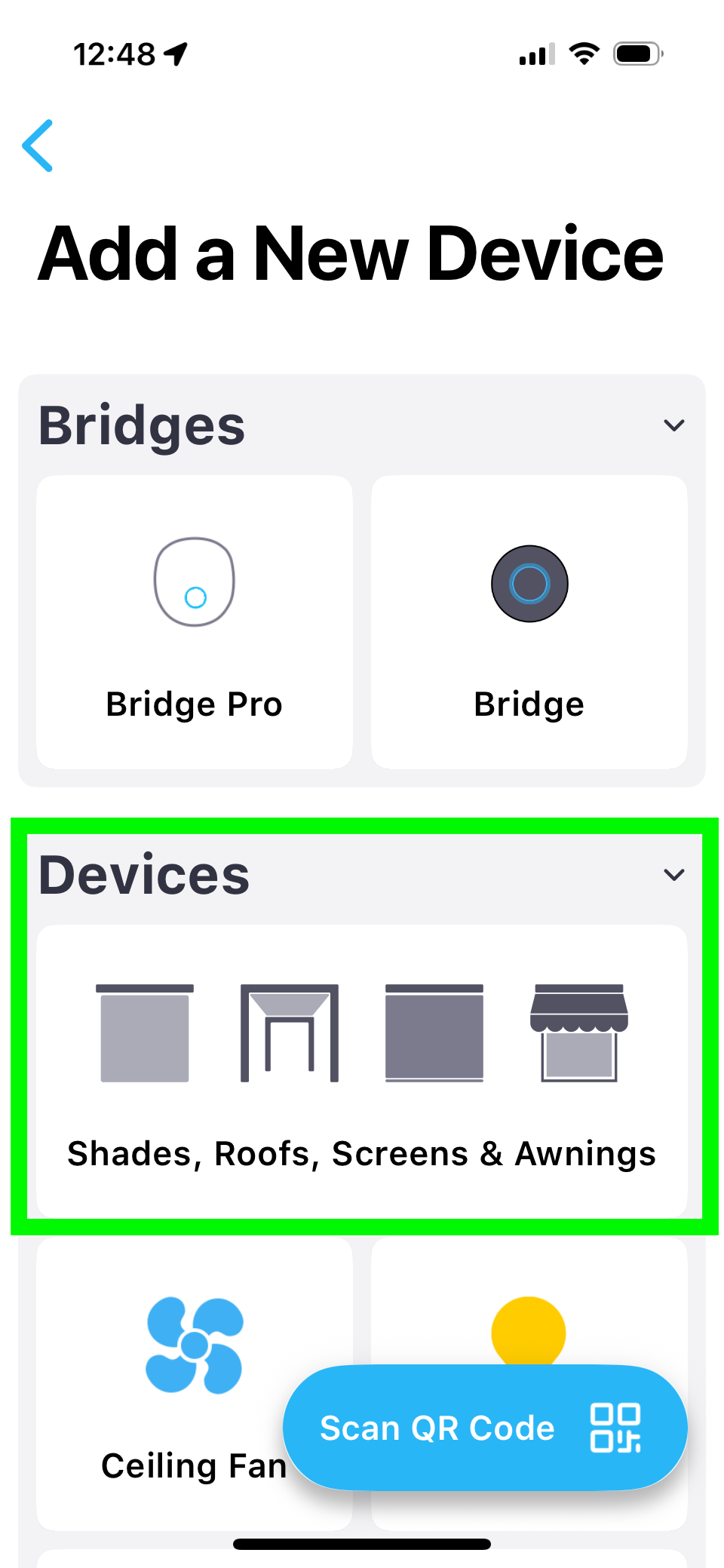

2. Select device category: Under Devices, select the Shades, Roofs, Screens & Awnings button

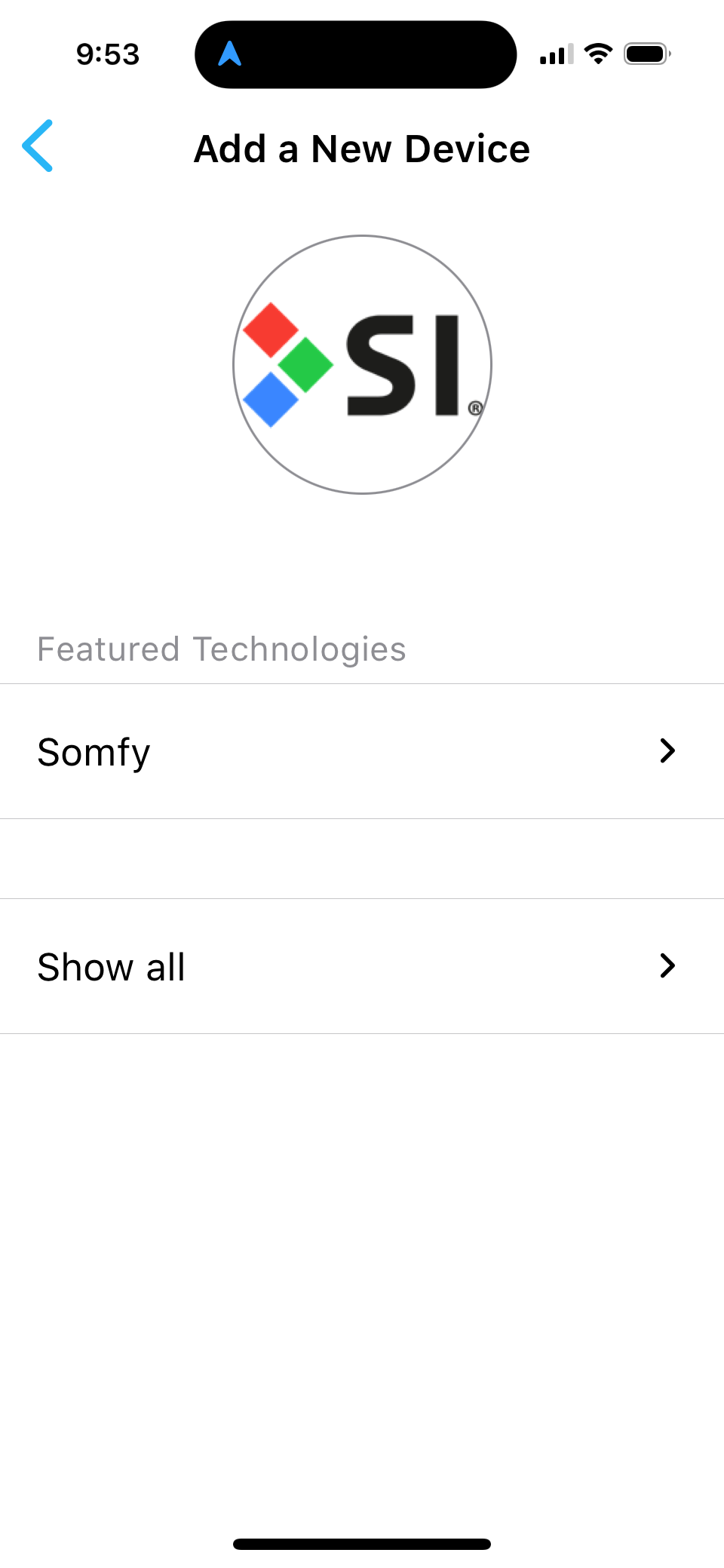

3. Choose motor brand: Select SOMFY

Motor Pairing Process

▼

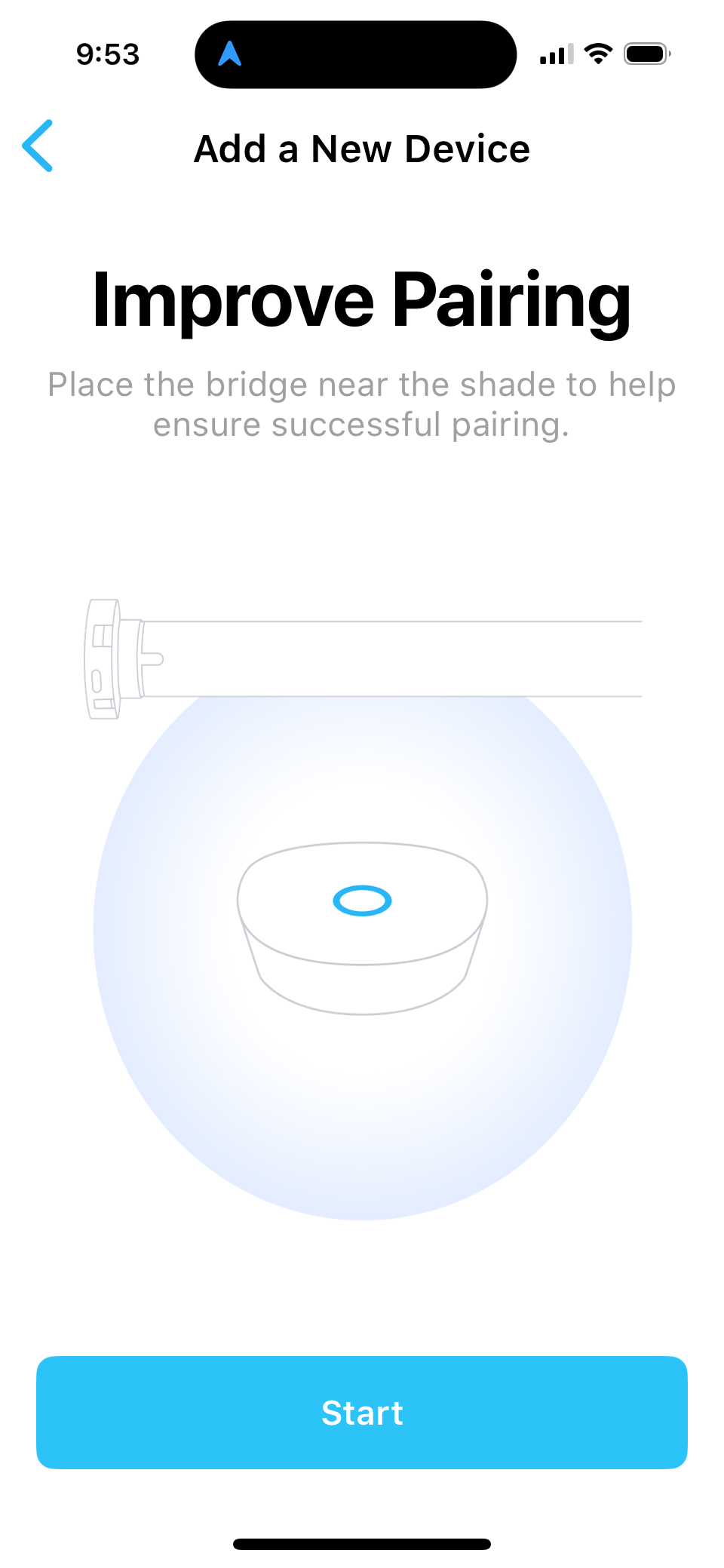

Tip: Move the motor closer to the Bond Bridge Pro if possible to ensure reliable pairing.

1. Prepare for pairing: Move the motor closer, if possible

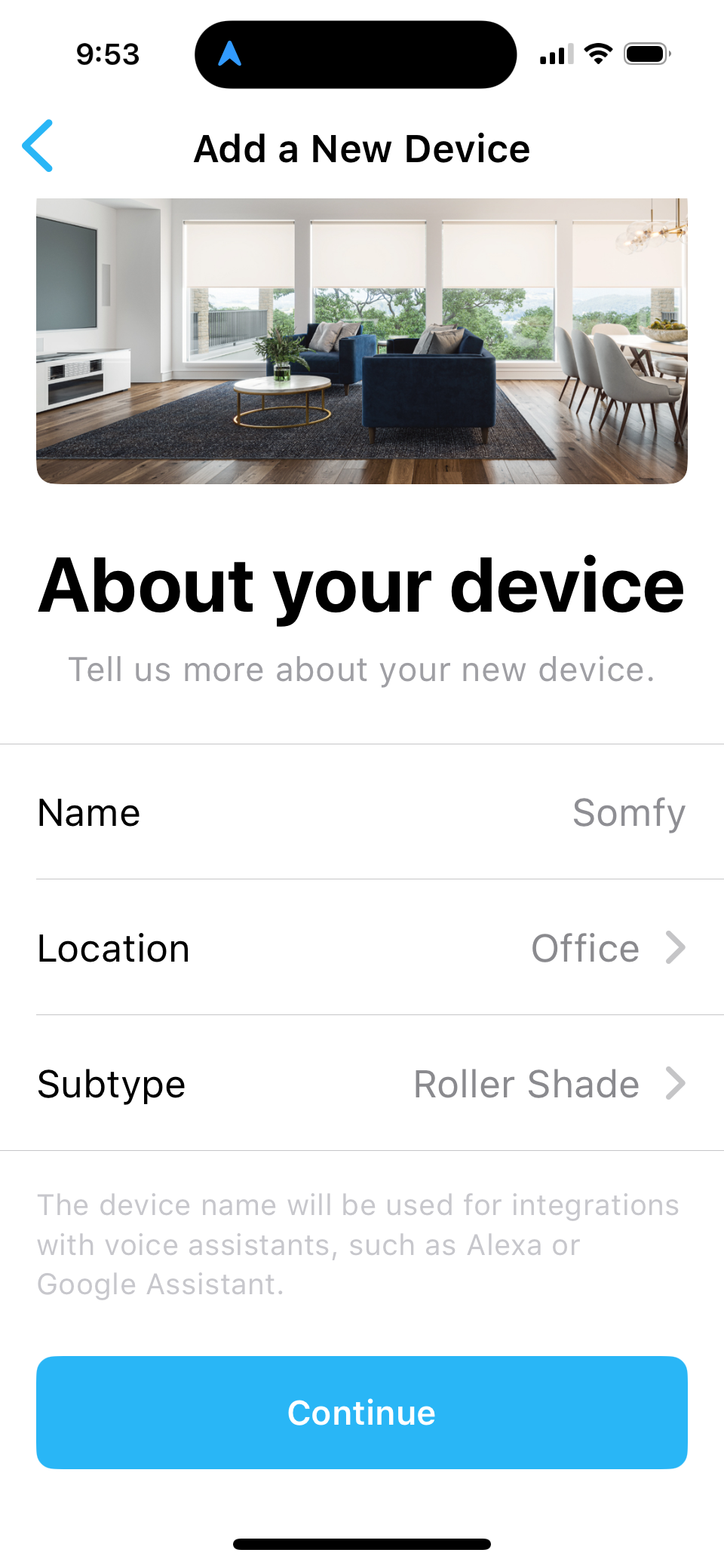

2. Configure shade details: Name and locate the shade, then press Continue

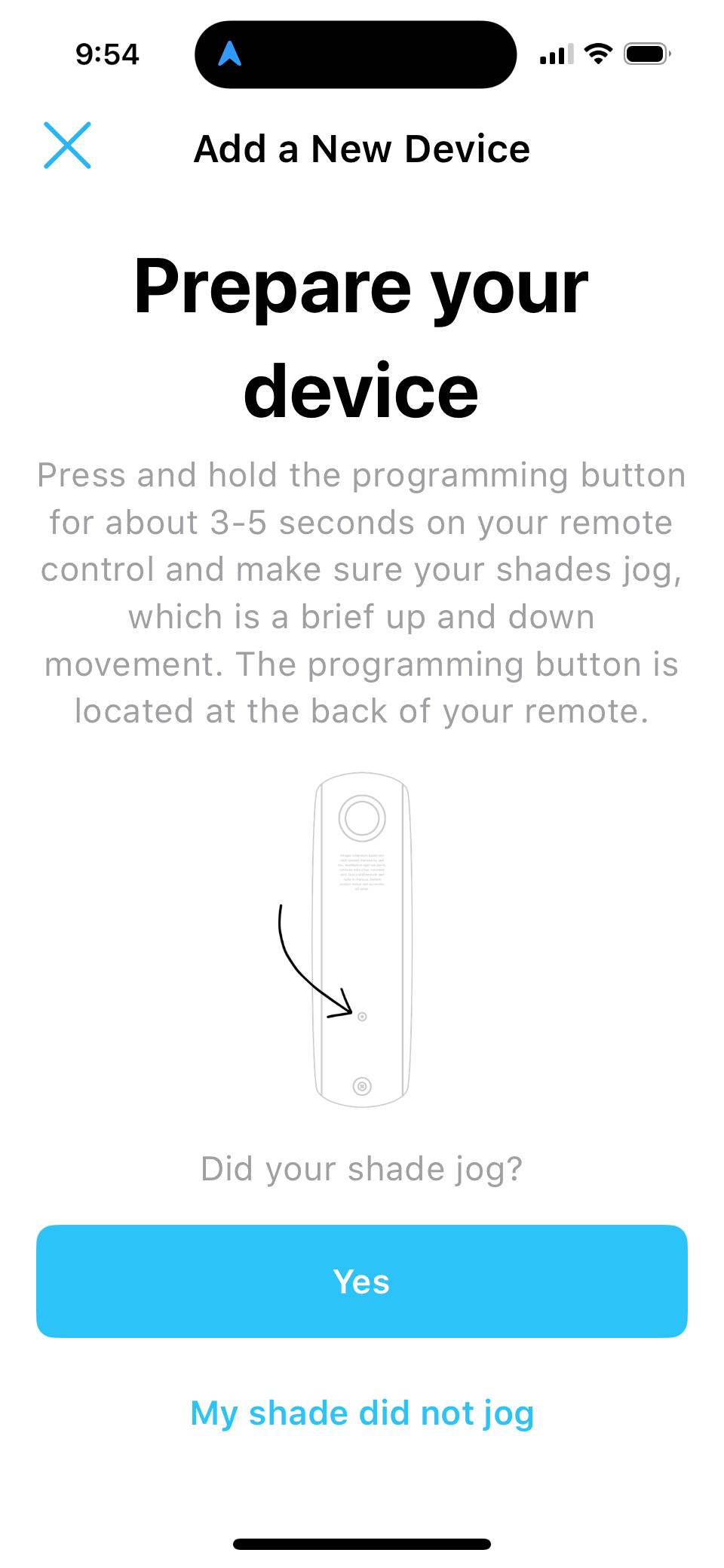

3. Activate pairing mode: Press and HOLD the programming button on the back of the remote until the shade jogs once

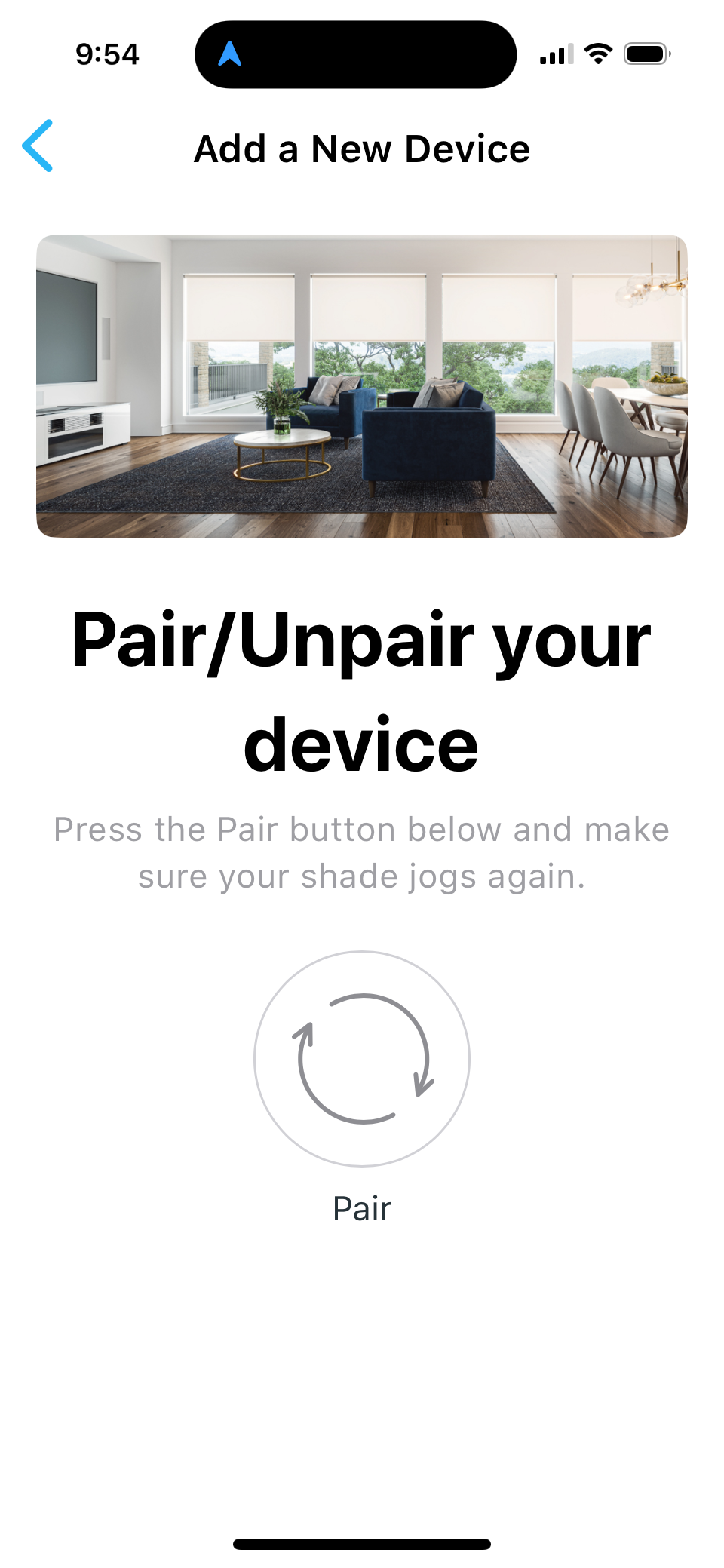

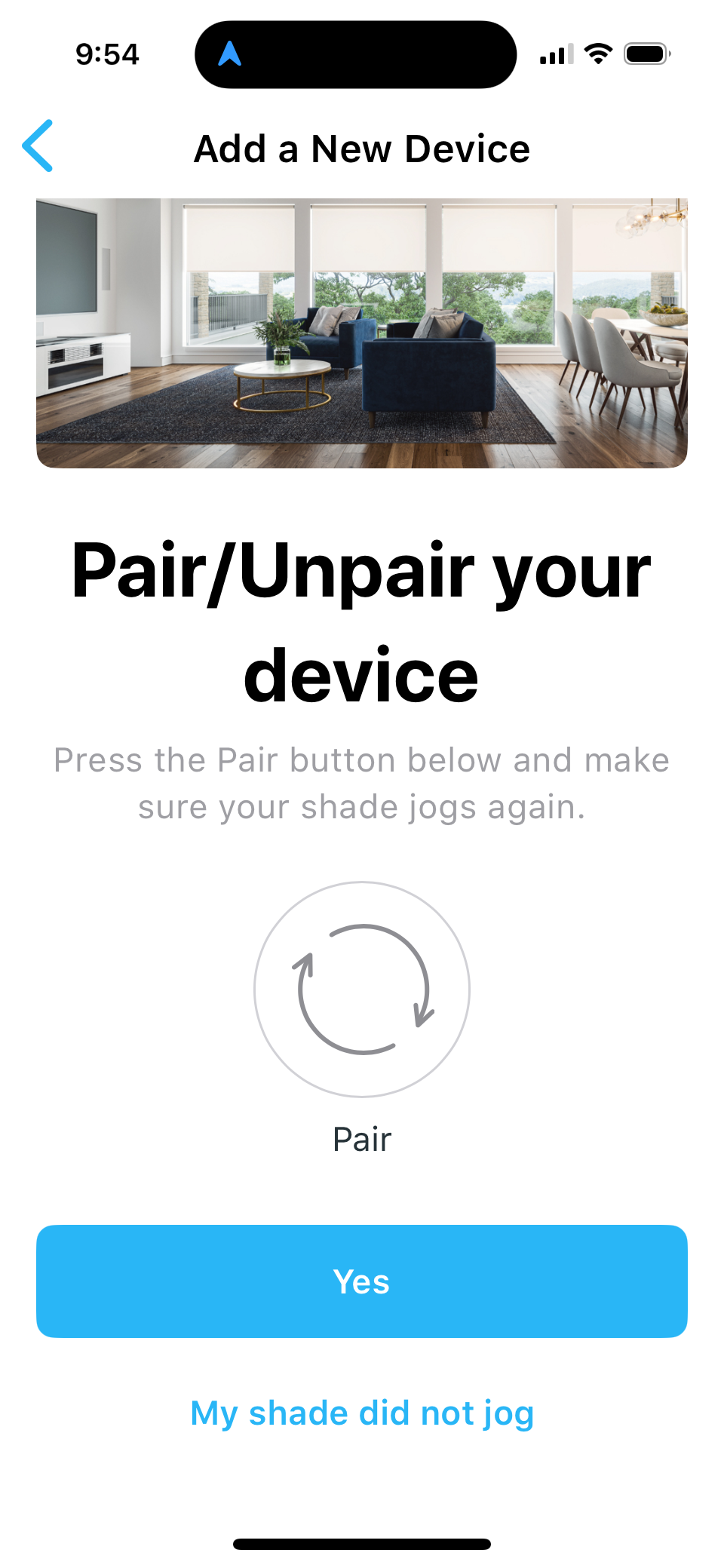

4. Initiate pairing: Press the PAIR button

5. Confirm pairing: If your shade jogged, press the YES button

Initial Shade Testing

▼

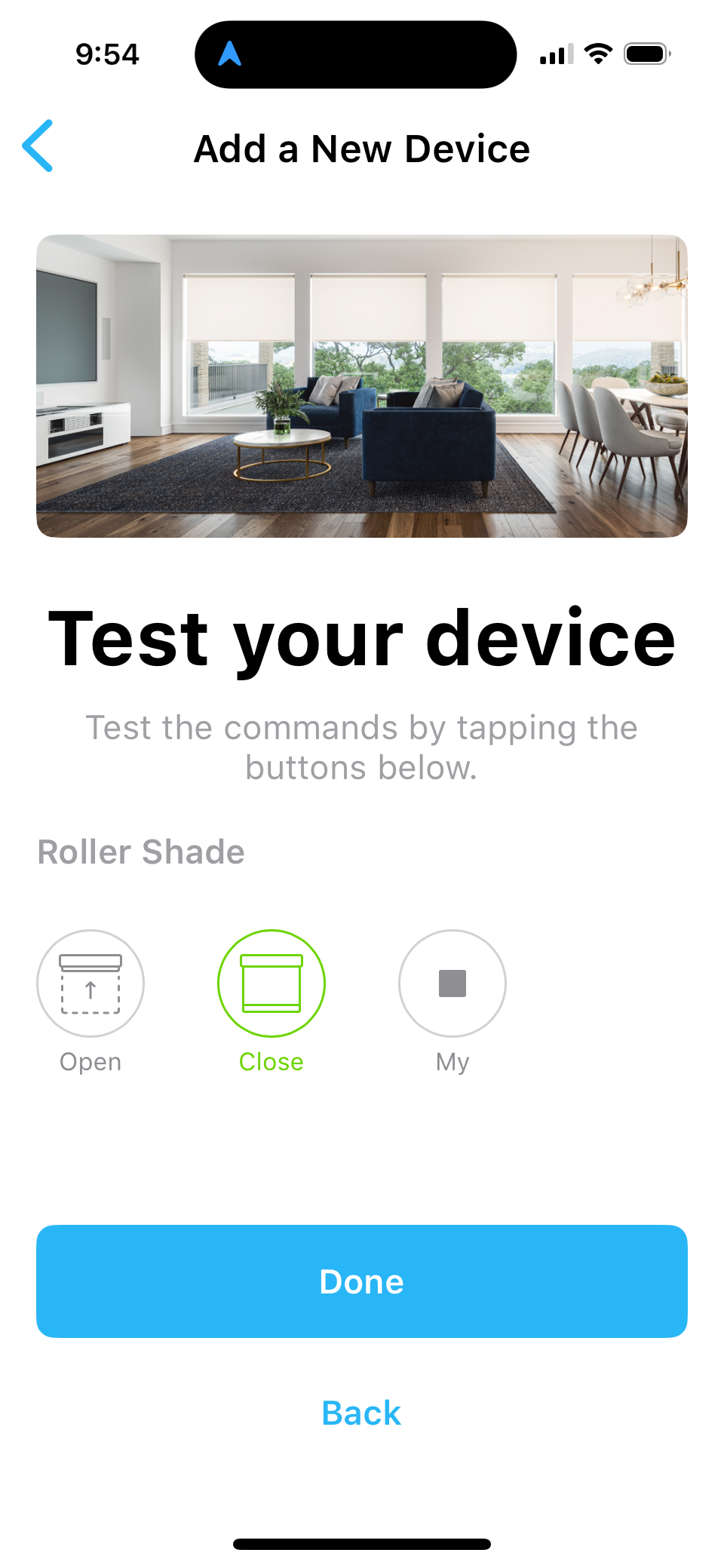

1. Test operation: Test the shade, then press DONE

Slider Calibration

▼

Info: This process calibrates the app's position sliders by timing how long it takes the shade to fully open.

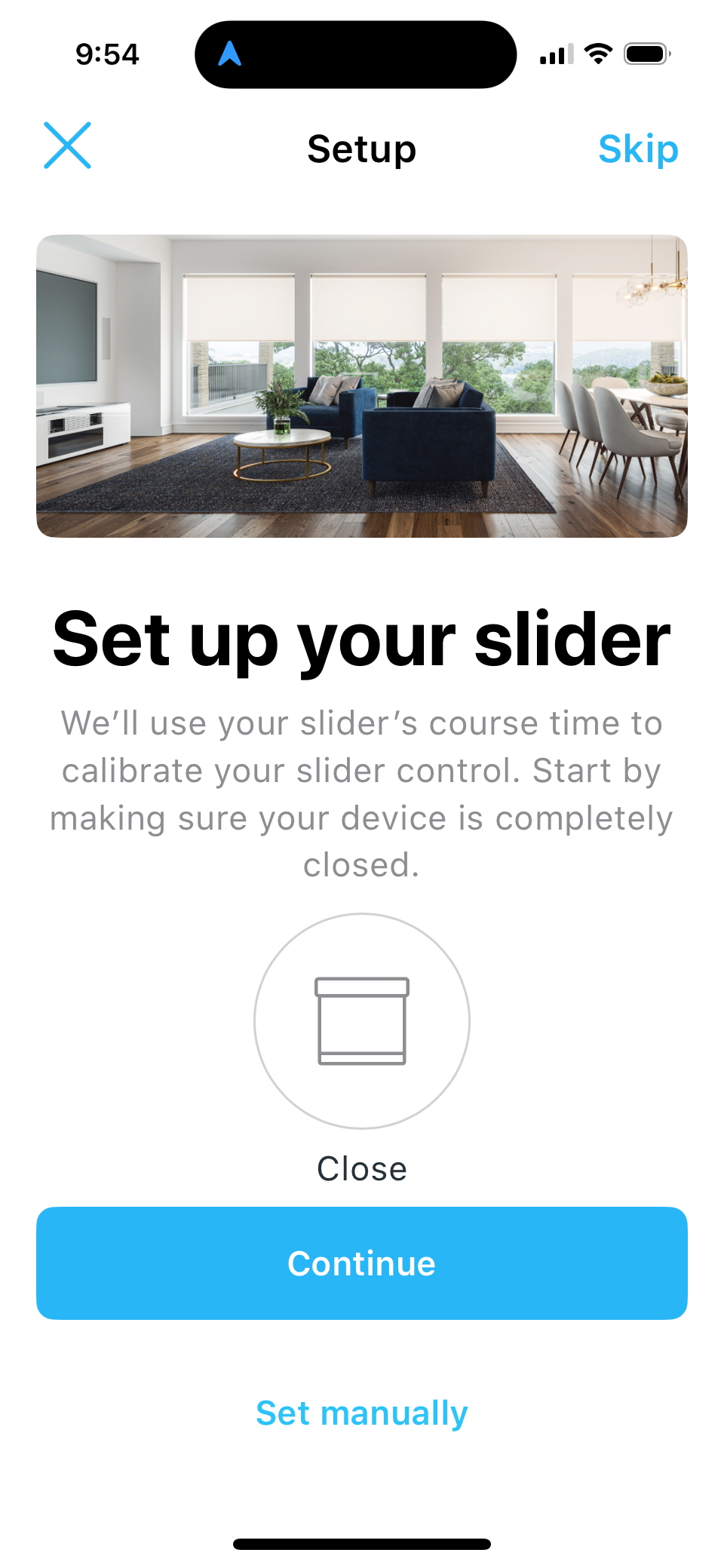

1. Begin calibration: Calculate Sliders

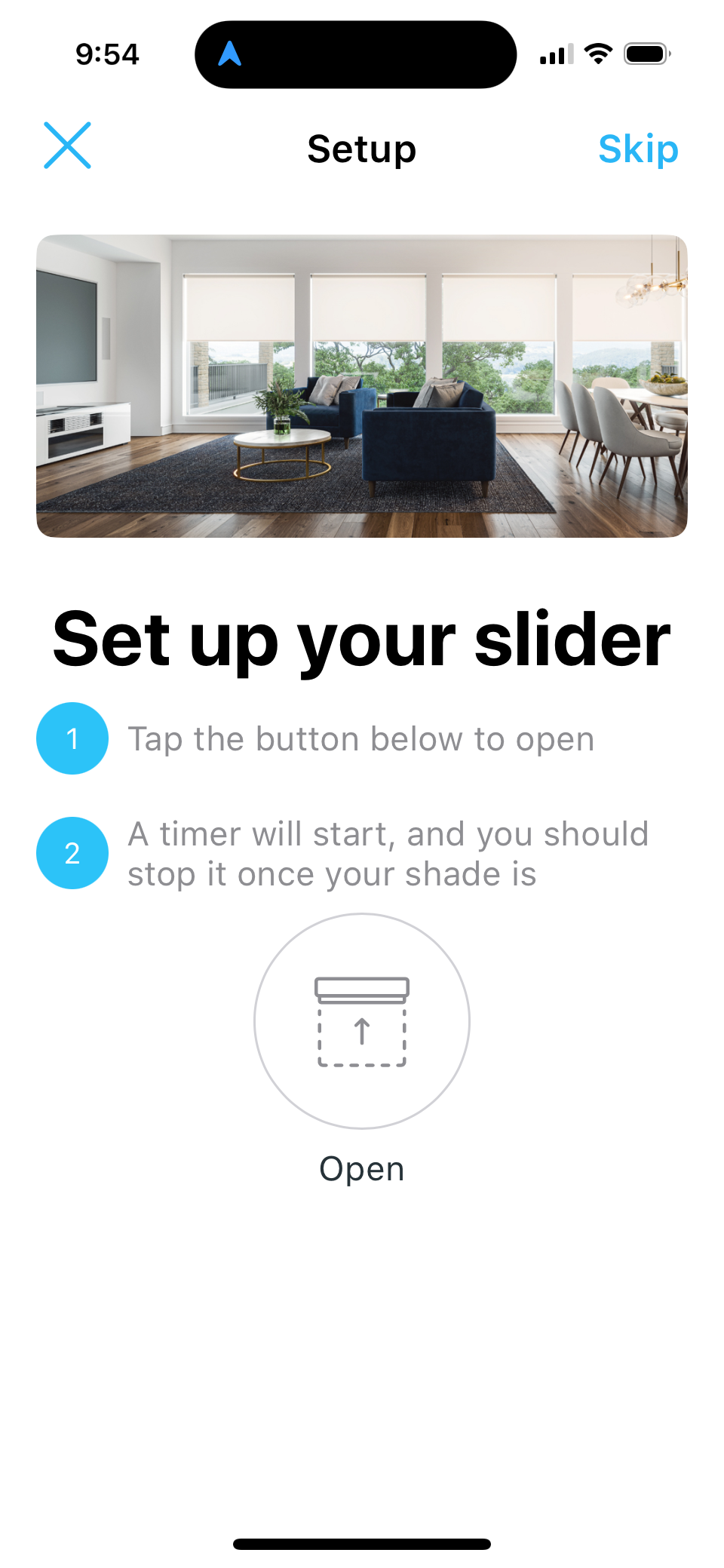

2. Start timing: Press the UP Button

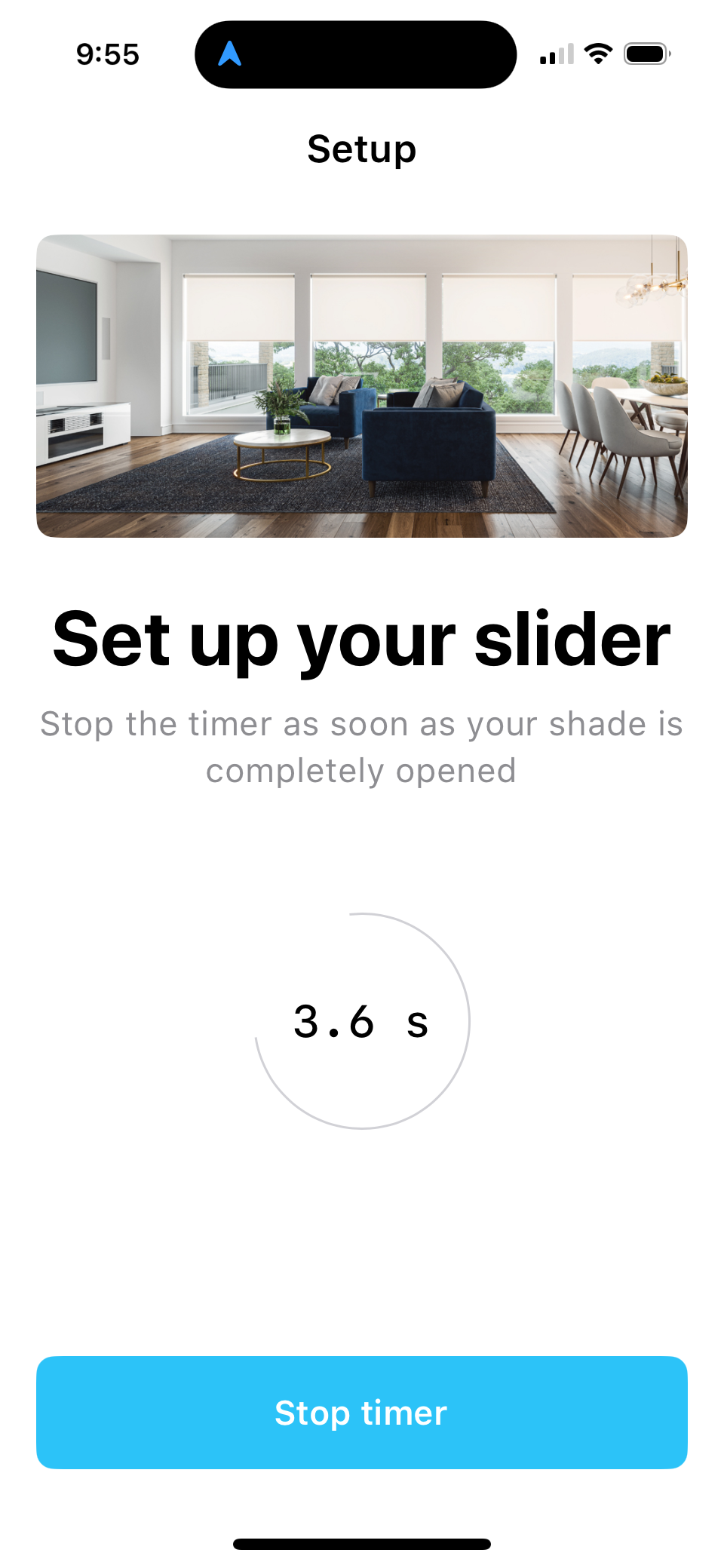

3. Record timing: When the shade fully opens, press the STOP TIMER button to record the time

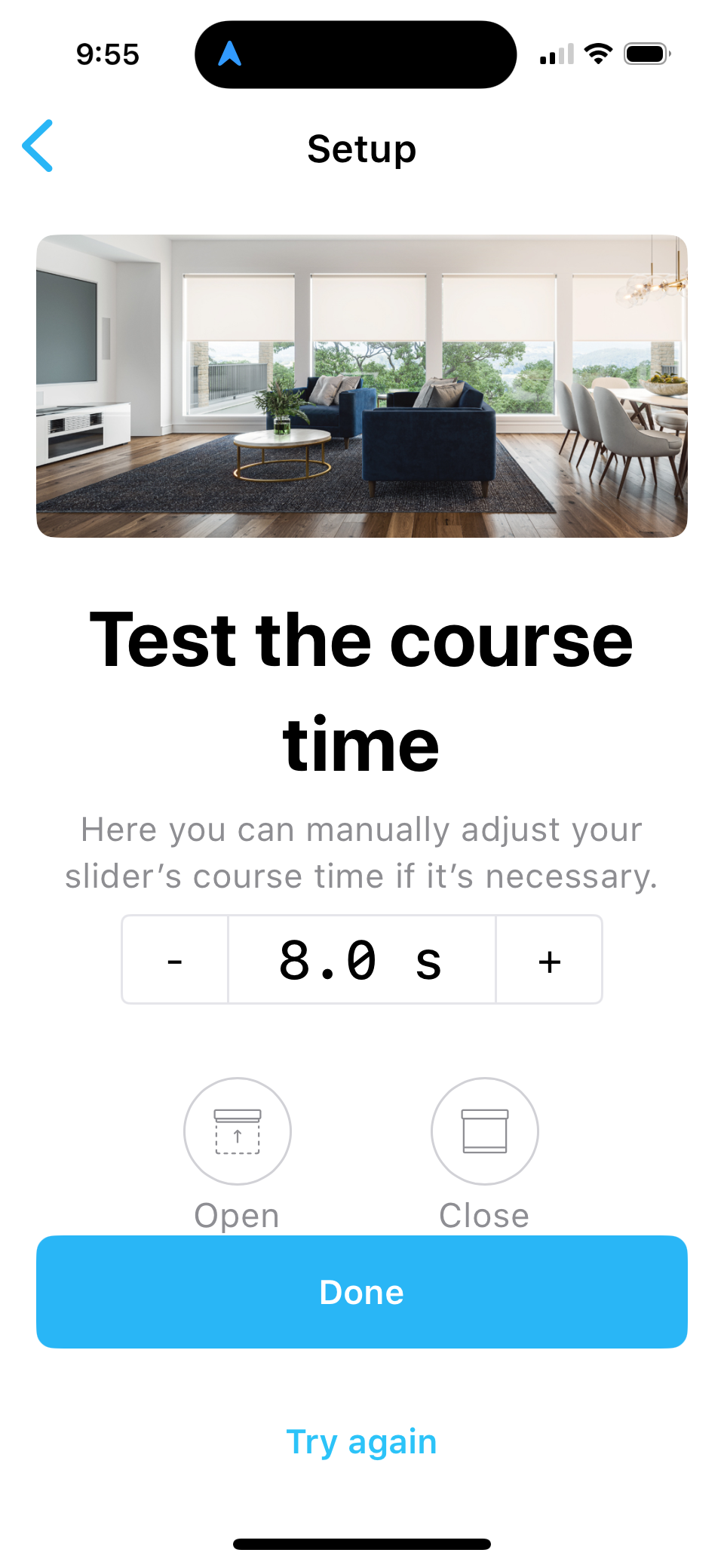

4. Final testing: Test the shade, then press DONE

Setup Completion

▼

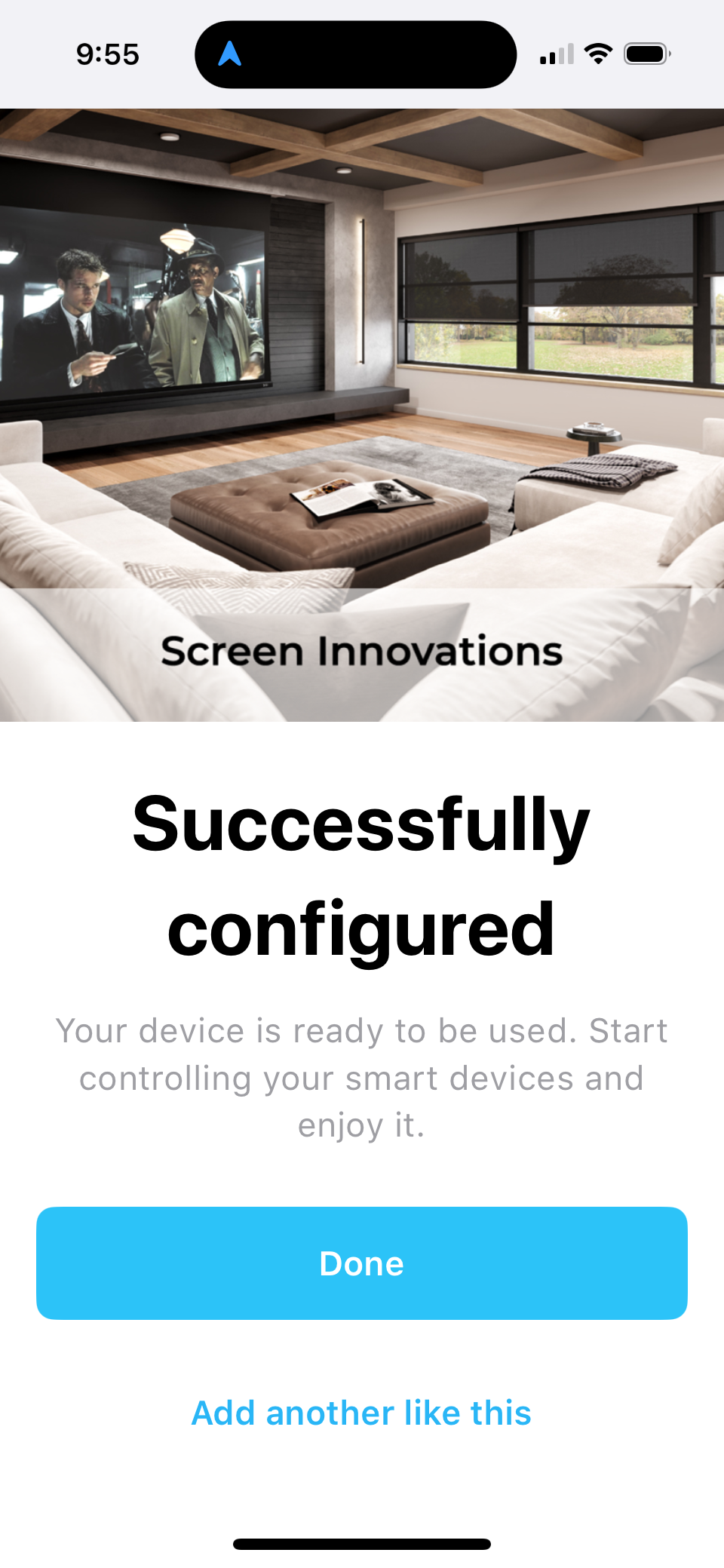

1. Finish setup: Press DONE, or add other like this to add another shade

Tip: You can repeat this process to add multiple SOMFY RTS motors to your Bond Bridge Pro system.

Screen Innovations | screeninnovations.com | Support: 512.832.6939 (Option 3)

☰
