Table of Contents

Setup

Wake up your shade

Adjusting Limits

Changing Motor Rotation

Changing Motor Speed

Tilt Mode Toggle

Factory Reset Motor

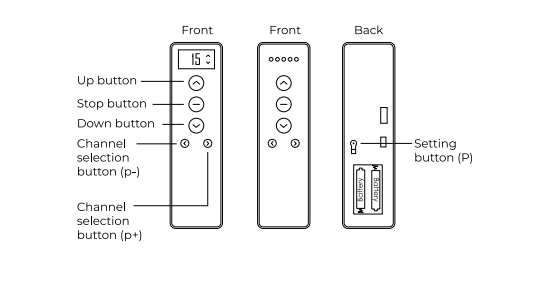

Remote Settings

Adding a Remote

Removing a Remote

Pairing an additional Nino motor to a Remote

Unpair a remote from a Nino motor

---

Setup

Wake up your Shade

Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog



Adjusting Limits

Adjusting the Upper limit

• Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
• Move the shade to the desired location. c. Simultaneously press “Up” & “Stop” on the remote until the motor jogs once. Adjusting the Lower limit a. Simultaneously press “Down” & “Stop” on the remote until the motor jogs once. b. Move the shade to the desired location.
• Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.

Adjusting the Lower limit

• Simultaneously press “Down” & “Stop” on the remote until the motor jogs once.
• Move the shade to the desired location.
• Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.

---

Change Nino Motor rotation

• With no limits
  • Press and hold the “Up” & “Down” button on the remote until the motor jogs once.
• With limits
  • Press the programming button on the back of the remote until the motor jogs once.
  • Simultaneously press the “Up” & “Down” button for one until the motor jogs once.

---

Changing Motor Speed

Increasing Speed

• Press the programming button on the back of the remote until the motor jogs once
• Press the “Up” button c. Press the “Up” button to increase speed, or “Down” to decrease speed. The motor will jog to indicate current set speed.
  • 1 jog level 1
  • 2 jog level 2
  • 3 jog level 3
• If motor does not respond, it has reached its maximum speed.

Decreasing Speed

• Press the programming button on the back of the remote until the motor jogs once
• Press the “Down” button
• Press the “Down” button to decrease speed, or “Up” to increase speed. The motor will jog to indicate current set speed.
  • 1 jog level 1
  • 2 jog level 2
  • 3 jog level 3
• If motor does not respond, it has reached its maximum speed

---

Tilt Mode

To switch between tilt mode (moves an inch with each press) and running modes (moves continuously)

• Ensure the shade limits are set, and then follow these steps below:
  • Using the remote, hold the UP and DOWN buttons for around 5 seconds; the motor will jog once.
  • After the motor jogs, press the STOP button, the motor will jog once, indicating it has entered Tilt mode, this is a toggle feature.

NOTE: To return to running mode for continuous movement, simply follow the procedure outlined above again.

---

Factory Reset the Motor

⚠️ Warning: This will erase limits, and any paired remotes

• Push and Hold the Motor Head button for 4 Jogs (Down - Up)

---

---

Nino Remote Settings

Adding a Remote

• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the new Remote control you want to add until the motor jogs once

Removing a Remote

• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the Remote control currently paired to the motor until the motor jogs once
• Press the programming button on the new Remote control you wish to remove until the motor jogs once

Pairing an additional Nino motor to a Remote

• Press the programming button on the head of the motor for 1 jog.
• Press the “Stop” button on the remote for 1 jog.

Unpair a remote from a Nino motor

• Press the programming button on the head of the motor for 1 jog.
• Press the “Stop” button on the remote for 1 jog.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
