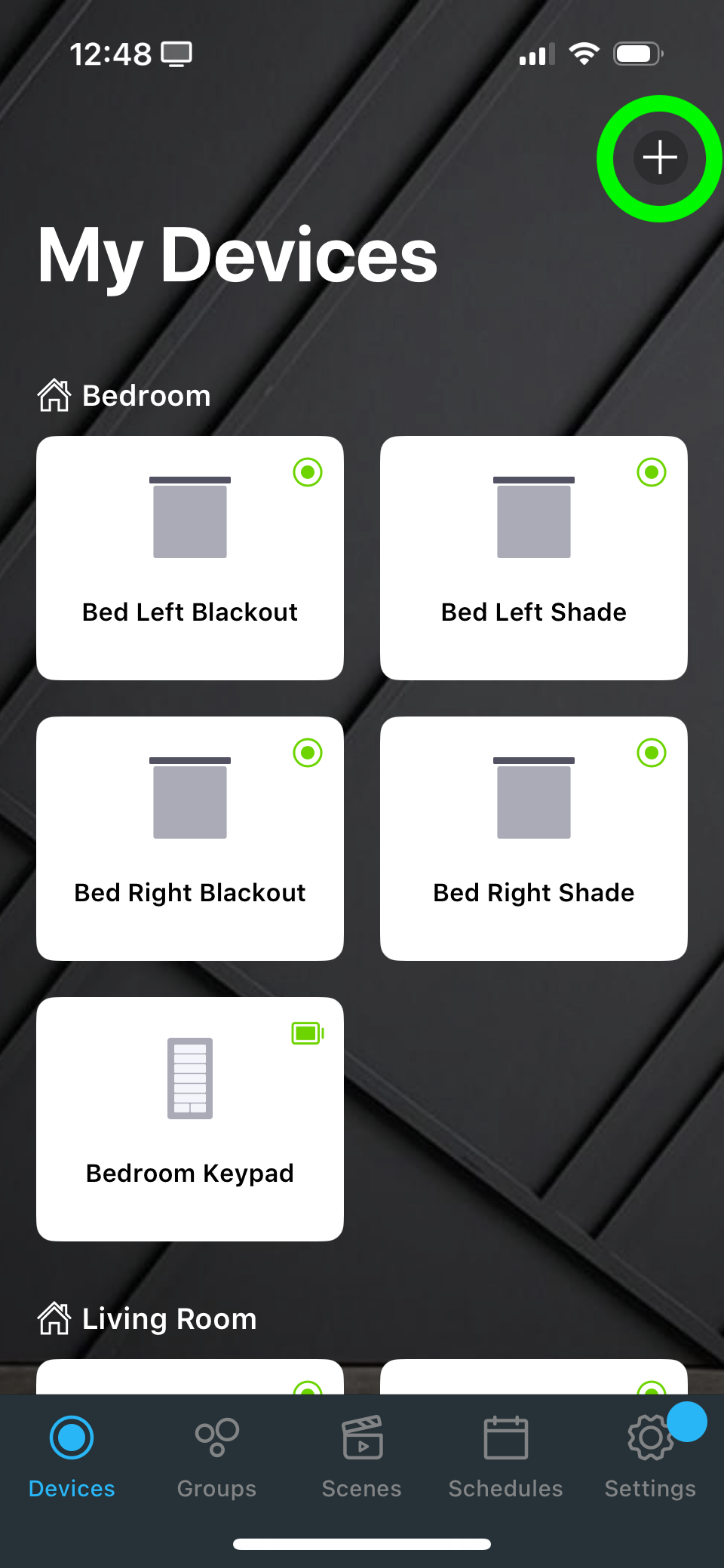

• From the devices tab, press the + button in the top right corner of the screen

---

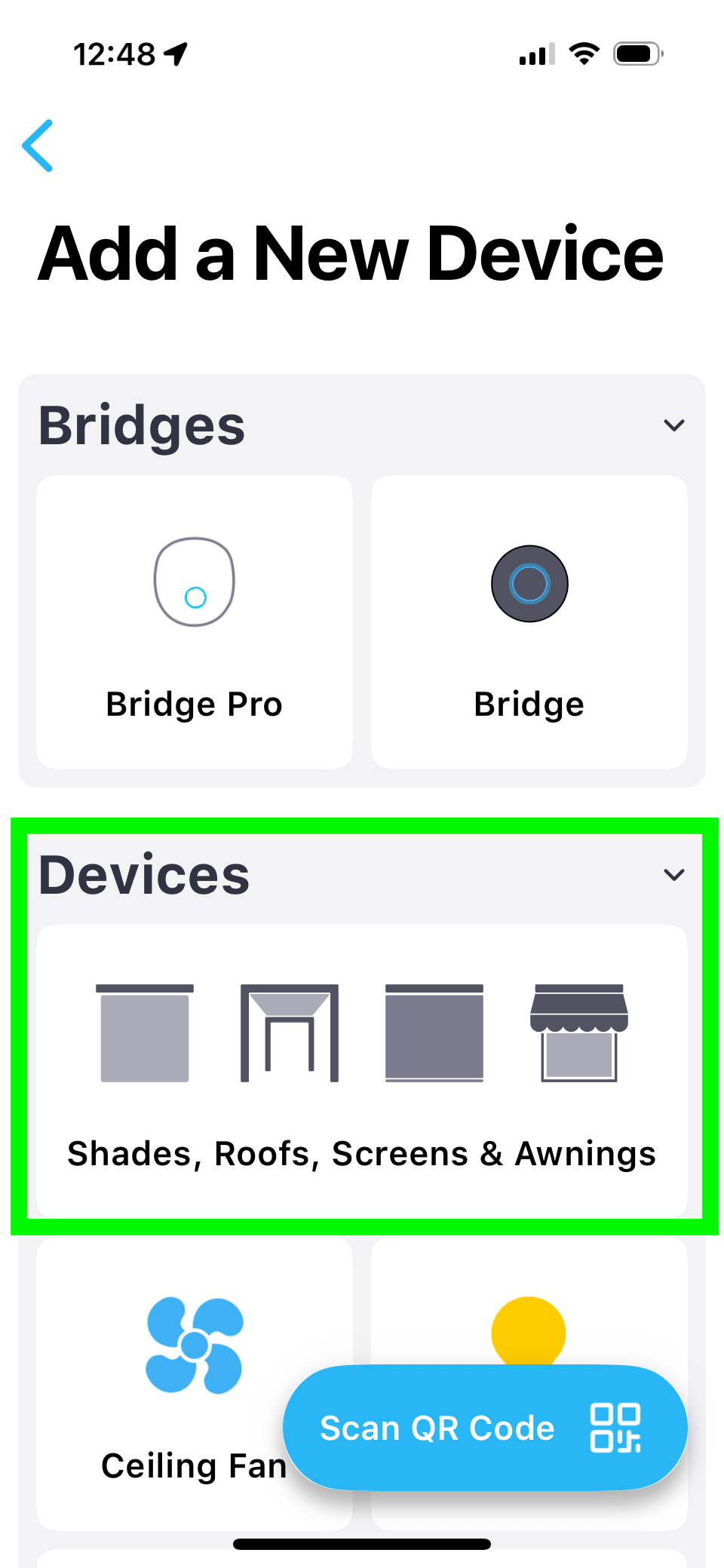

• Under Devices, select the Shades, Roofs, Screens & Awnings button

---

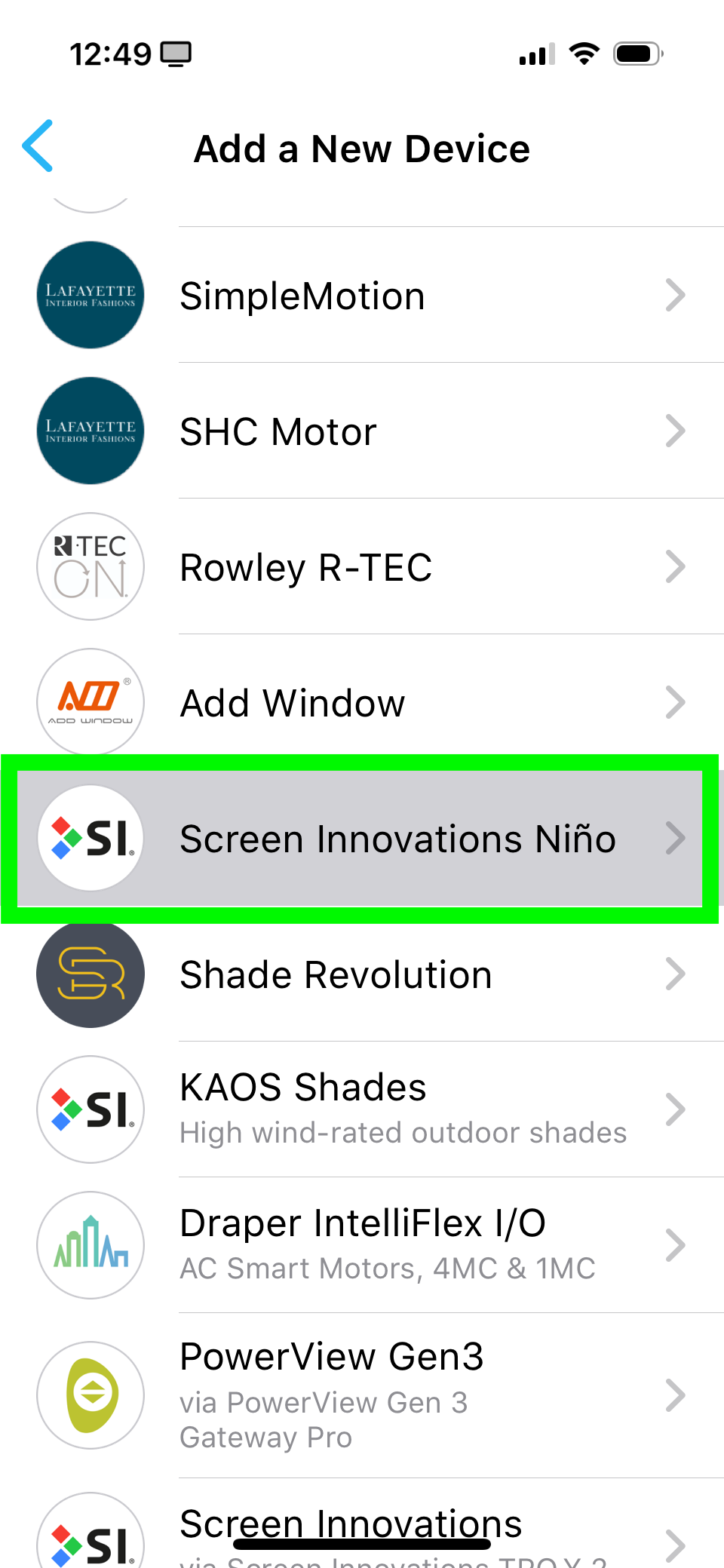

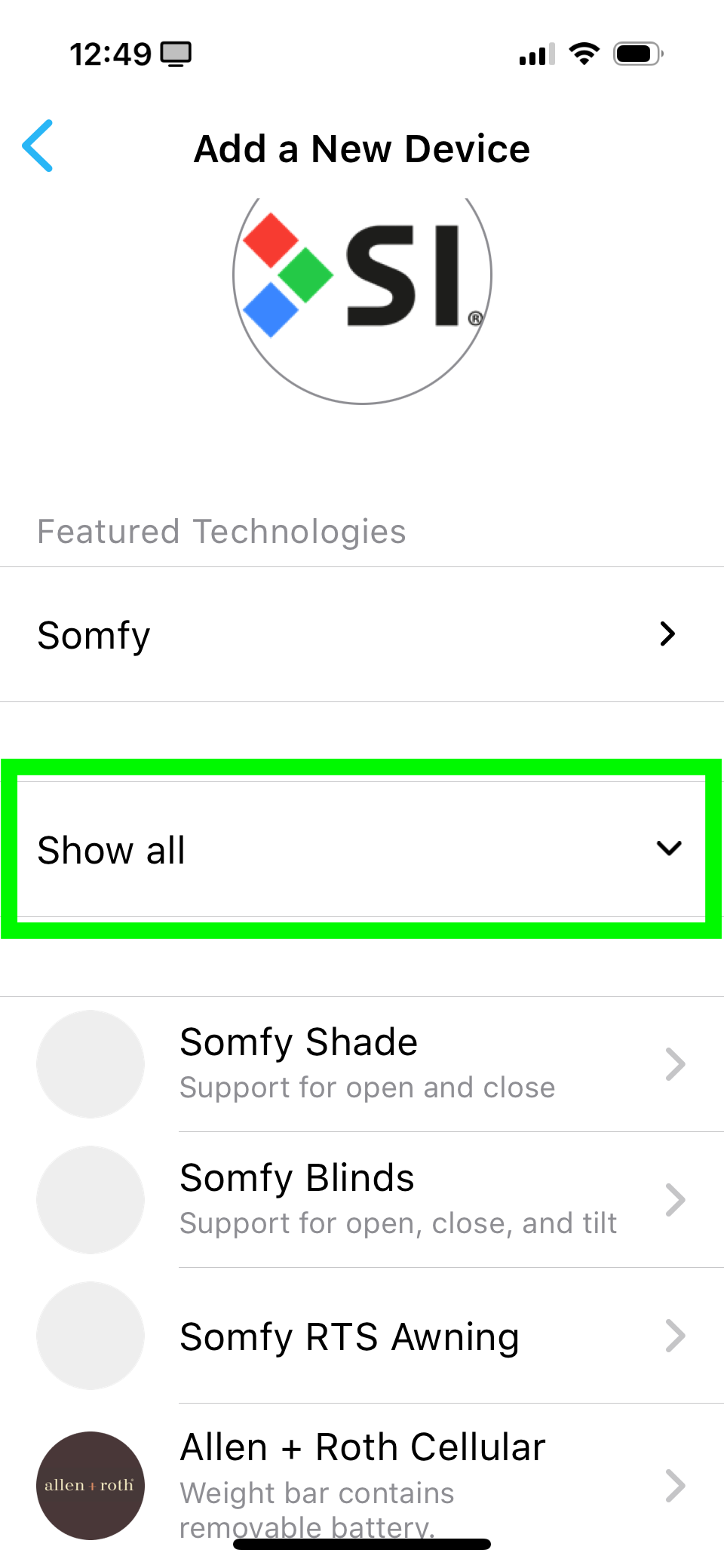

• Click the Show All to open the list, scroll down and select Screen Innovations Niño

⚠️ Warning: This list is NOT in alphabetical order

.

---

• Press the Start button

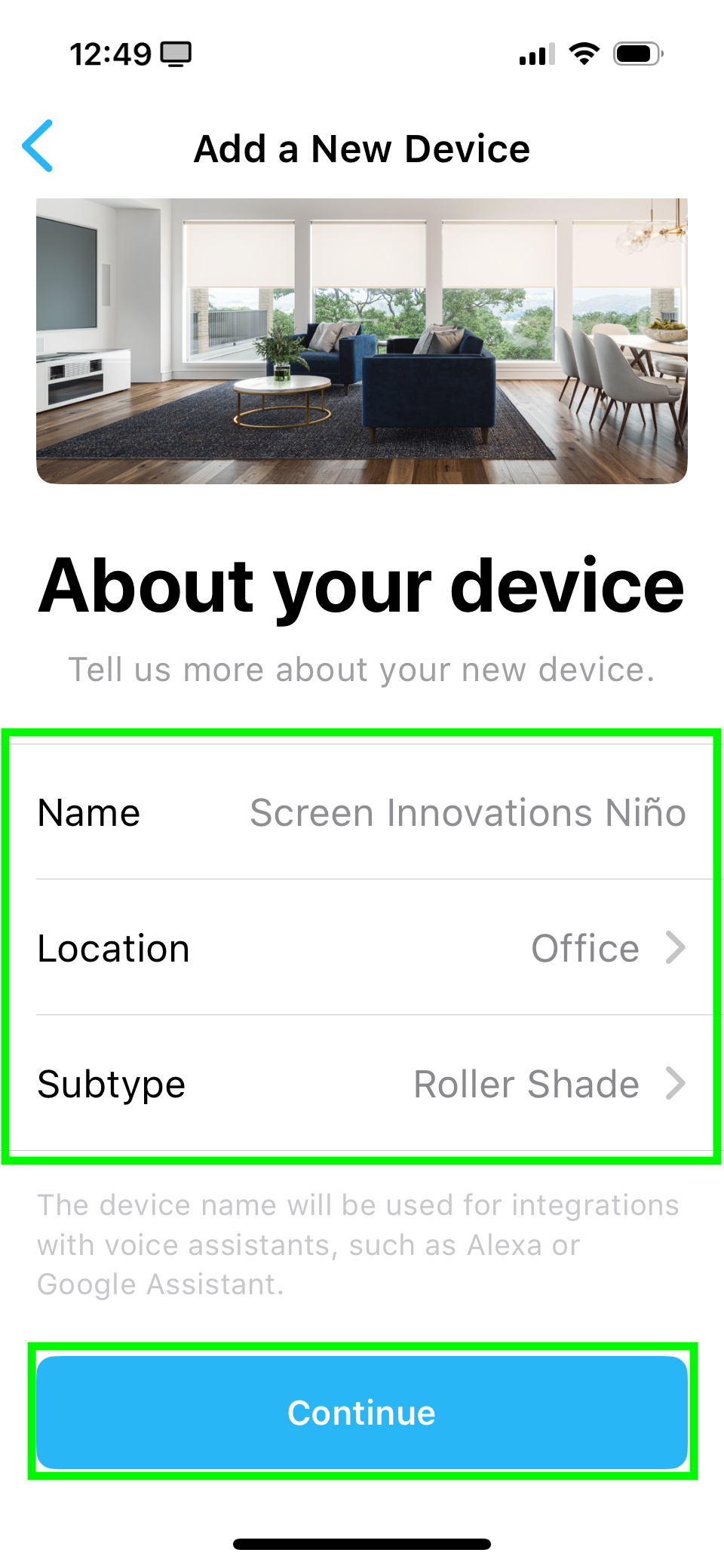

• Name your shade, and assign it to a room
• press Continue

---

• Remove the battery cover from the remote

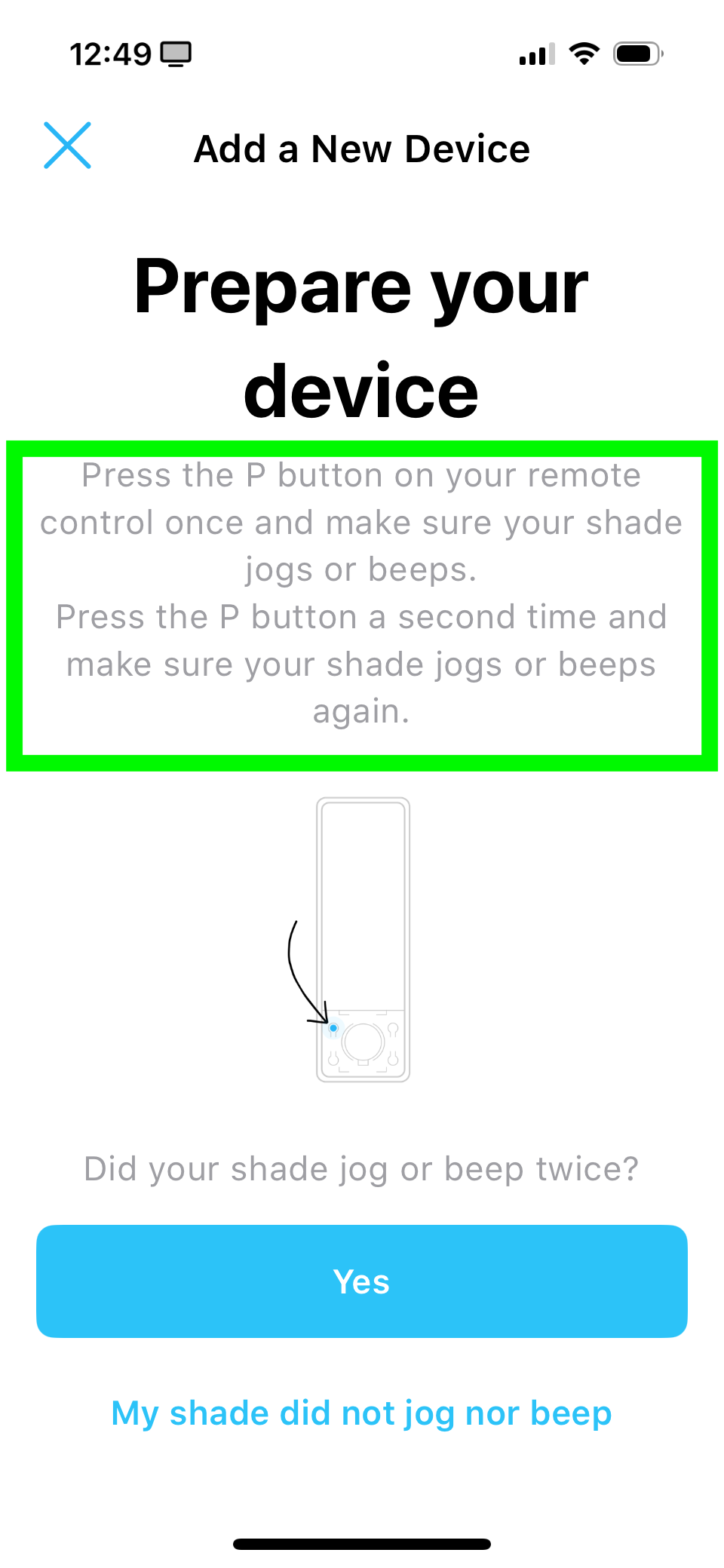

• Press and hold the P button until the shade jogs once, then release the button
• for a second time, push and hold the P button until the shade jogs once again, then release the button
• Press the Yes button to continue

---

• Press the Pair button

---

• Once the shade jogs, press the Yes button at the bottom of the screen

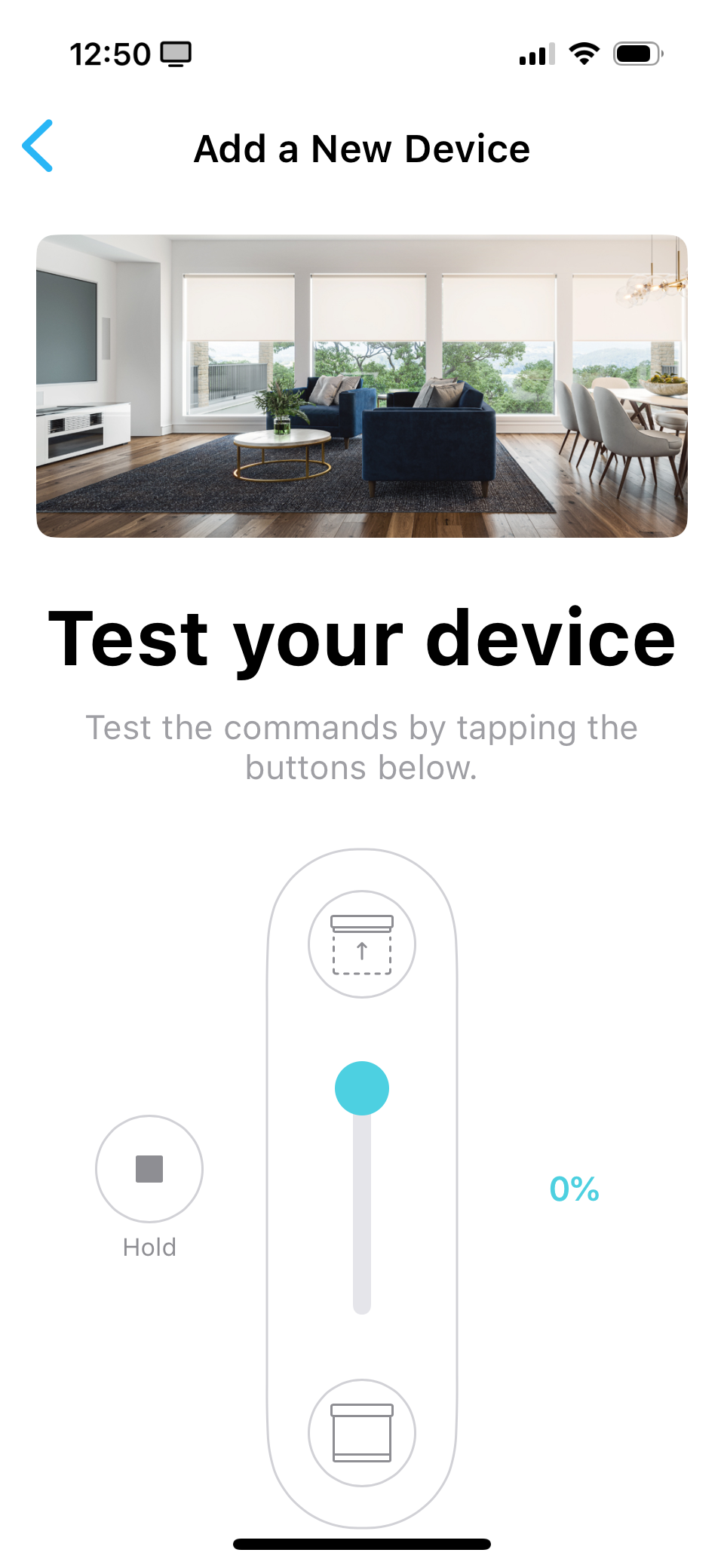

• Test the shade, then press the Done button

---

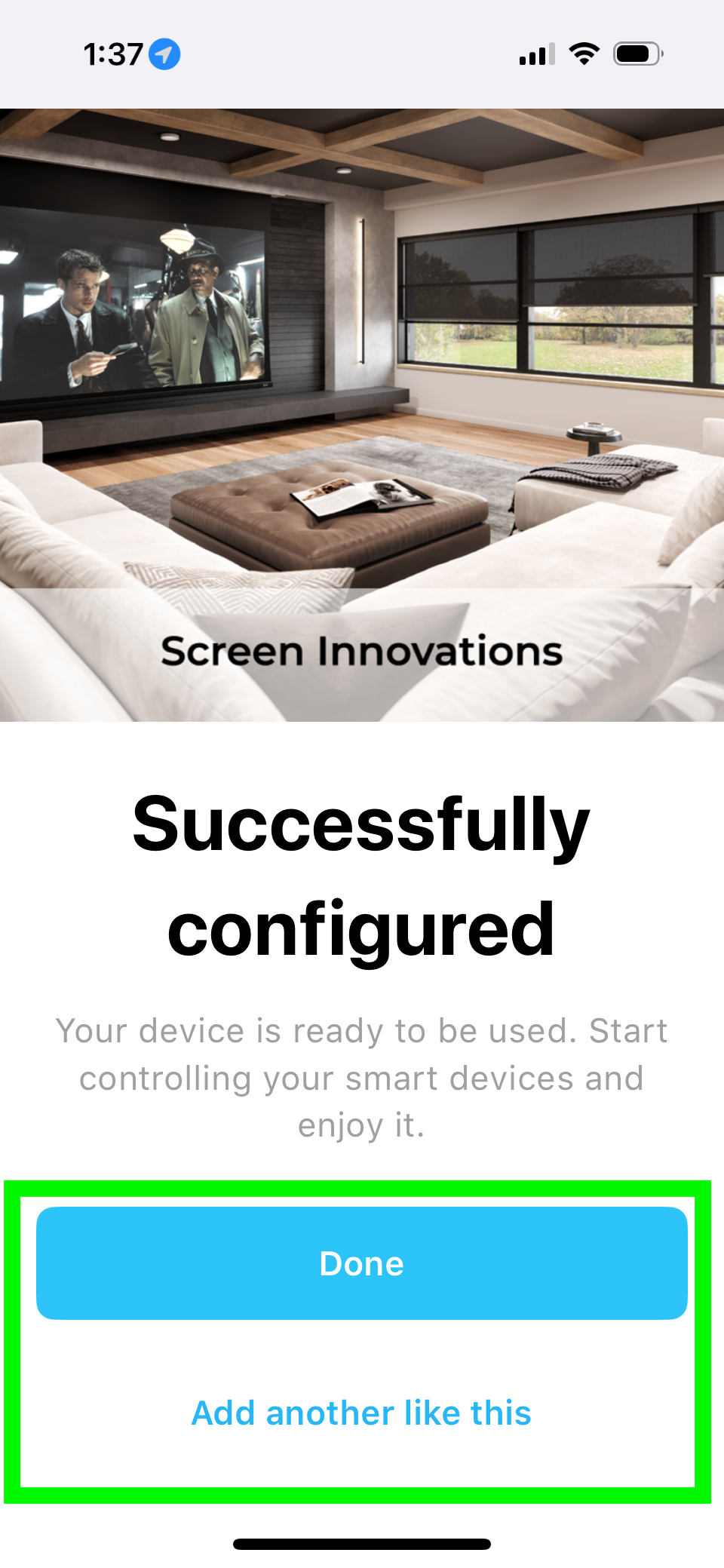

• Now your shade is added to the Bond, press Done to finish, or add another like this to add more shades

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
