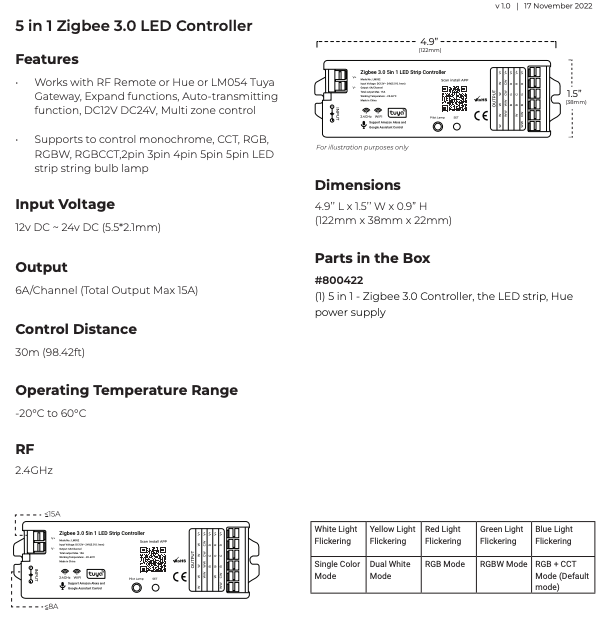

IP LED Kit - Spec Sheet

↑ ◔

v 1.0 | November 2022

IP LED Controller

5 in 1 Zigbee 3.0 LED Strip Controller

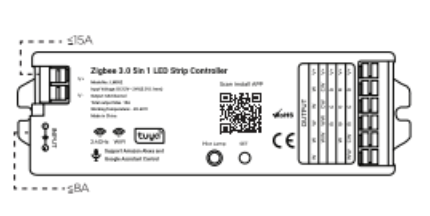

Top View

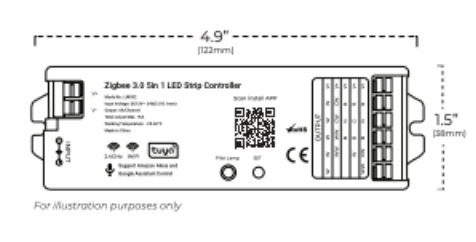

Side View

Features

Works with RF Remote or Hue or LM054 Tuya Gateway

Expand functions, Auto-transmitting function

DC12V DC24V, Multi zone control

Supports monochrome, CCT, RGB, RGBW, RGBCCT LED strips

2pin 3pin 4pin 5pin LED strip string bulb lamp

Zigbee 3.0 protocol with 2.4GHz RF

Power

Input voltage 12-24v DC

Connector 5.5*2.1mm

Output

Per channel 6A

Total max 15A

Radio

Frequency 2.4GHz

Control distance 30m (98.42ft)

Dimensions

4.9" L × 1.5" W × 0.9" H

122 mm × 38 mm × 22 mm

Environment

Operating temp -4°F to 140°F

Metric -20°C to 60°C

Light Modes

	White Light Flickering	Yellow Light Flickering	Red Light Flickering	Green Light Flickering	Blue Light Flickering
Single Color Mode	Dual White Mode	RGB Mode	RGBW Mode	RGB + CCT Mode (Default mode)

Parts in the Box

#800422 (1) 5 in 1 — Zigbee 3.0 Controller, the LED strip, Hue power supply

Compliance

Certification CE

Protocol Zigbee 3.0

Works With

Philips Hue Bridge
