IP LED Kit (Old Version)

---

Initial Setup – Connecting LED IP to Philips Hue

Before starting, make sure your Hue Bridge is powered on and connected to your Wi-Fi network.

---

🔧 Steps to Connect:

1. Plug in the LED IP power supply to an outlet.
   – The LEDs will turn white after a few seconds.

2. Open the Philips Hue app on your phone or tablet.
   – Go to Settings > Light setup.

3. Tap the “+” button, then select “Search”.

4. Wait a few seconds.
   – Once connected, the LEDs will turn green.

5. In the Hue app, you’ll see:
   – "Extended Color Light 1"
   – "Dimmable Light 1"

   ✅ Use "Extended Color Light 1" to control your LEDs.
   ❌ Delete "Dimmable Light 1" (it’s not needed).

6. You can now rename the light and use it like any other Hue lamp!

---

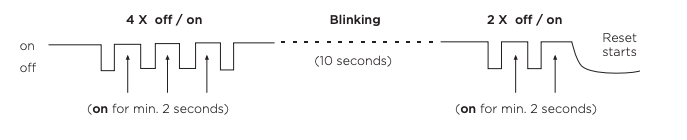

Reset – Required to Connect to a Different Philips Hue

Follow these steps to reset your LED IP before pairing it with a new Hue Bridge:

---

🔧 Steps to Reset:

1. Make sure the LED IP is powered on.

2. Turn it off for at least 2 seconds.

3. Turn it back on and wait for the LEDs to light up.

4. Repeat the off/on process a total of 4 times.

5. The LEDs will now blink for 10 seconds.

6. After blinking stops, repeat the off/on process 2 more times.

7. The LED IP will reset, and the LEDs will return to white.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
