Wirepath Enclosure Instructions

Janus

Author: Dan Rosen • Last Updated: May 14, 2026 17:13 • Estimated Read Time:

Dan Rosen

May 14, 2026 17:13 Updated

Wirepath Enclosure Instructions - Screen Innovations

Panel Installation

▼

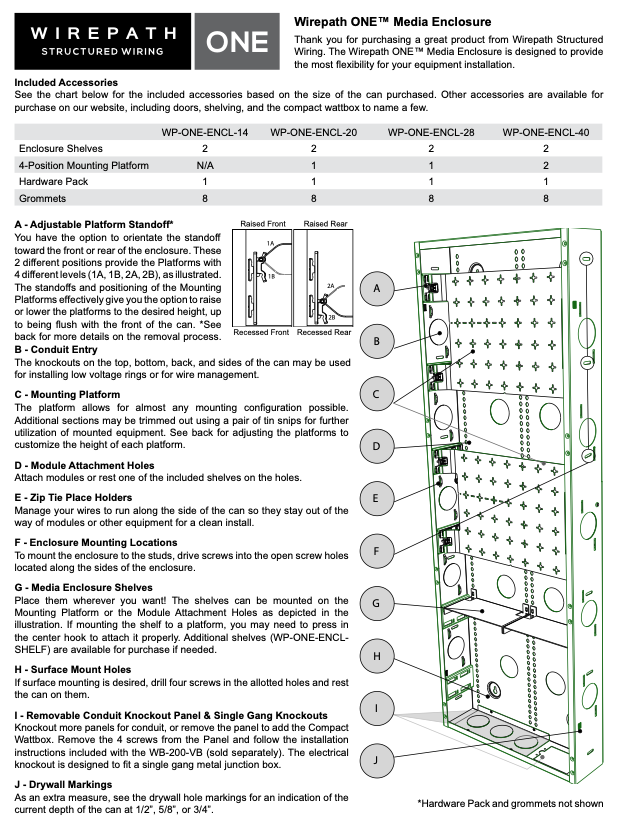

Wirepath enclosure panel installation diagram showing mounting configuration

Detailed panel installation steps and component placement for Wirepath enclosure

▼

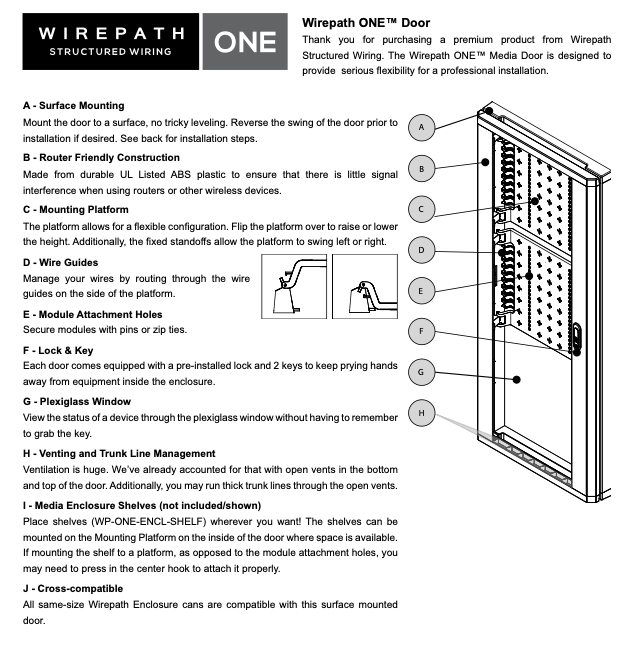

Wirepath enclosure door installation process and hinge alignment

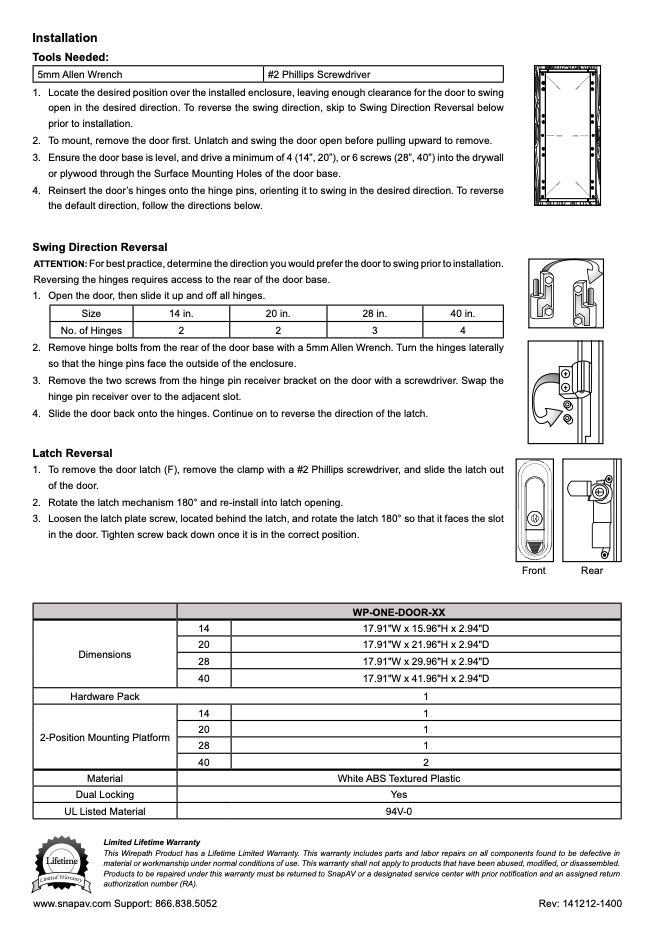

Final door installation steps showing proper closure and lock mechanism

▼

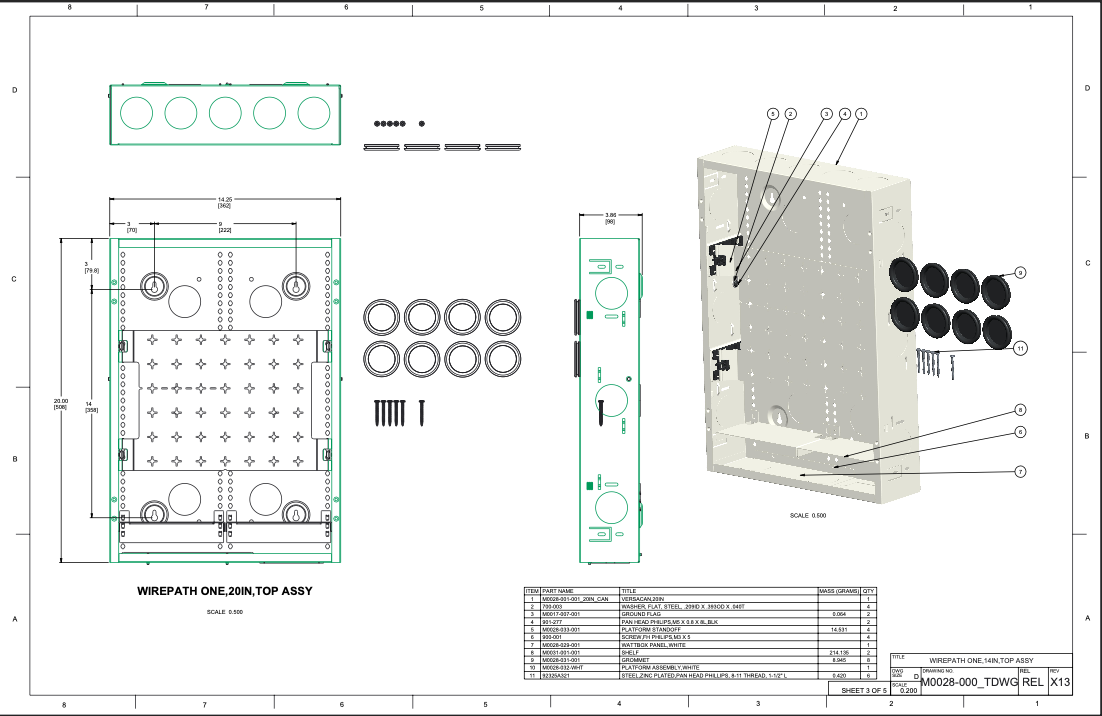

Technical drawing of Wirepath enclosure panel dimensions and specifications

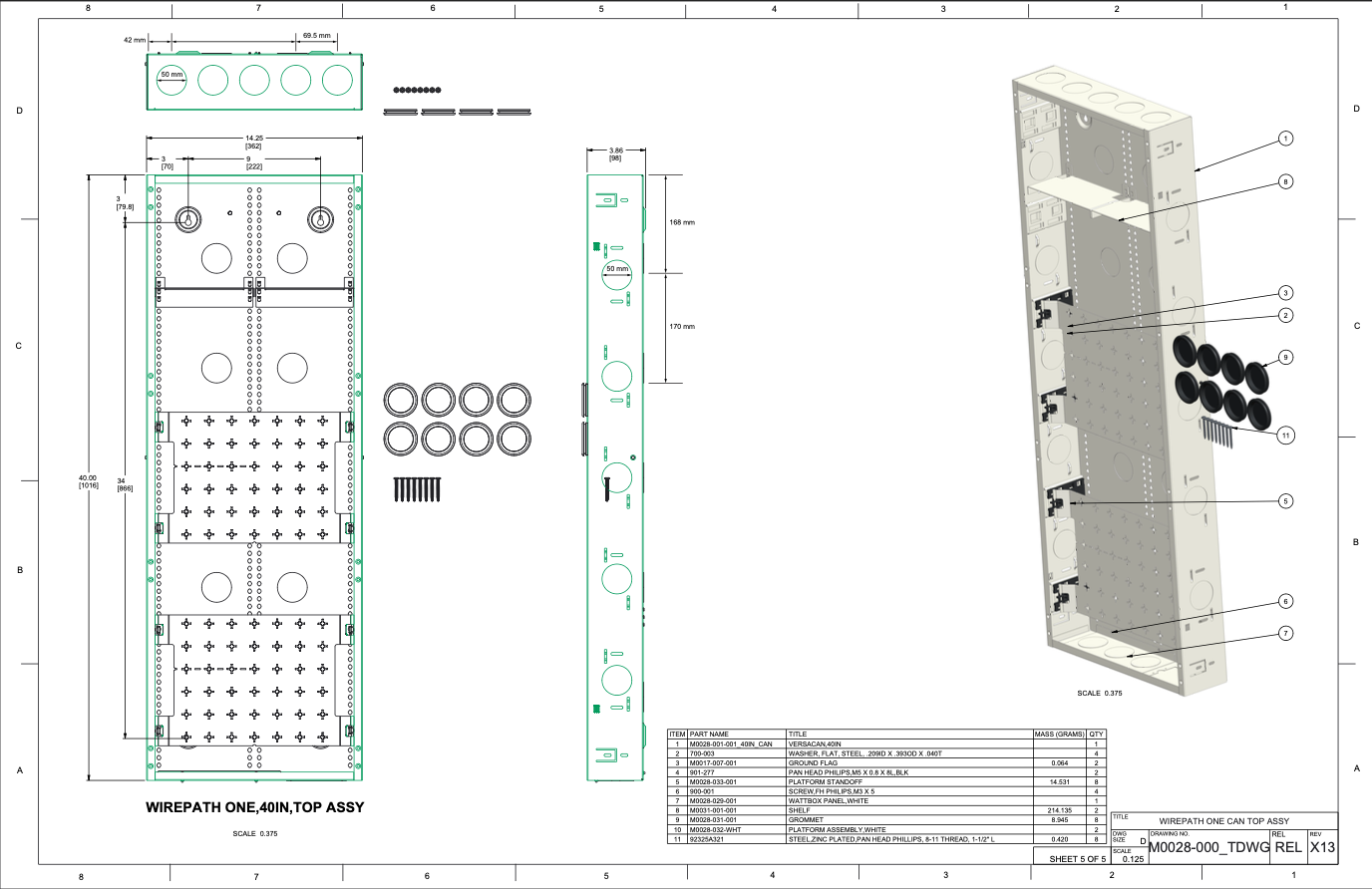

Detailed panel schematic showing measurements and mounting points for Wirepath enclosure

Support: For issues, contact Screen Innovations at 512.832.6939 Option 3 or visit www.screeninnovations.com
