Jopplin Kit

---

• Installation Instructions
• Parts in the Box
• Wirepath Panel

---

Installation Instructions

1. Secure your Janus unit(s) into the Stack Mount Bracket(s) using the provided stack mount screws.

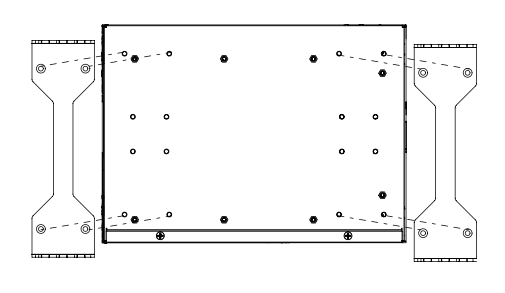

2. Attach the two shovels to the power supply using the shovel screws, as illustrated below.

3. Mount the stacked Janus assembly to the enclosure with the included snap rivets.

4. Assemble the top and bottom Power Supply Brackets, then insert the Janus Power Supply(ies) as shown on the first page. There are designated holes for both the 275 and 375 power supplies. Note: Only two of these holes can be used, depending on the power supply model. If using both the 275 and 375, ensure to use the 375-specific holes.

5. Attach the upper and lower power supply brackets and the power supply(ies) to the enclosure.

6. Route the power supply cable(s) from the power supply(ies) to the Janus unit(s) installed in the Stack Mount(s). Depending on the connection face on the Janus unit, you may need to use the 90° power connectors and the power cable extensions provided with the power supply(ies).

   Note: To mount the IP gateway within the enclosure, use the included DIN rail.

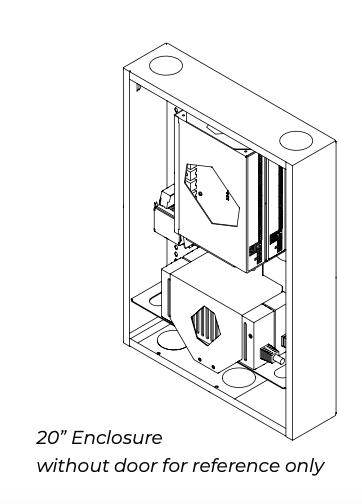

7. Optionally, if your kit includes an enclosure, scan the QR code below to access installation and cutout drawings.

💡: If your Stack Mount is positioned at the edge of the enclosure, use the included 90° Power Connectors for proper cable alignment.

---

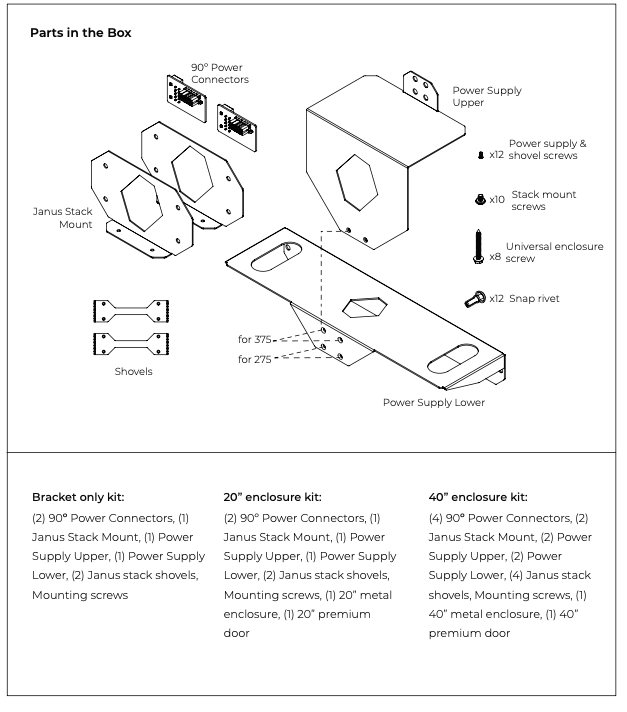

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
