Pegasus standalone

RTS motor programming, smart repeater setup, and RS-485 integration guide

Overview

Note: These instructions are for using the Pegasus in "Standalone" mode. Click here if you are using the Pegasus with the TRO.Y 2

Pegasus is a versatile device that can control RTS motors, act as a smart repeater, learn remotes and sensors, and bridge between RTS and RS-485 systems. Use the sections below to configure Pegasus for your specific application.

Button guide

Program RTS motor

Smart repeater

Learn remotes

Factory reset

Pinouts

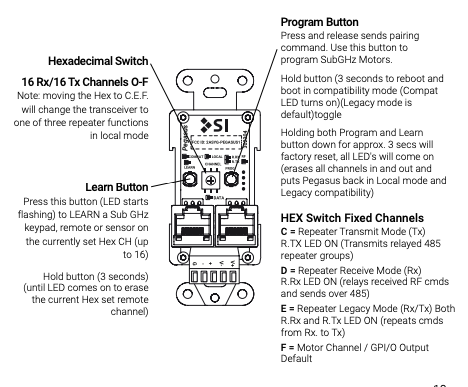

Button guide

Pegasus button layout

▼

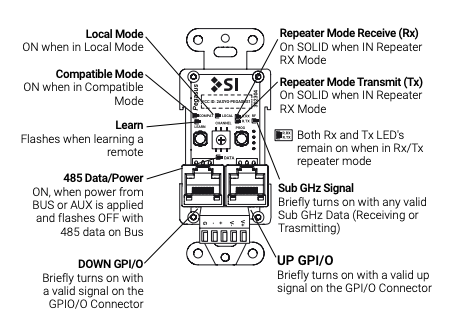

LED details

LED indicator reference

▼

Programming an RTS motor

Setup instructions

▼

You can control the RTS motor using GPI/O inputs or 485 commands.

1

Power up Pegasus

Use the Terminal Block or 485 Bus to supply power. Make sure the Local LED (red) is ON.

2

Put the motor in learn mode

• With a remote: Press and hold Up + Down until the motor jogs once.
• Without a remote: Press and hold the programming button on the motor head until it jogs once.

Tip: You can also push and hold the programming button on the back of the remote until the shade jogs.

Note: Some RTS motors have a yellow LED that will start flashing in learn mode.

3

Program the motor to Pegasus

Press the PROG button on Pegasus. The motor will jog once, confirming it's been paired.

Video tutorial

RTS smart repeater setup

Setup instructions

▼

Any valid RTS signal received will be retransmitted automatically.

1

Power up Pegasus

Use the Terminal Block or 485 Bus for power. Confirm the Local LED (red) is ON.

2

Set channel

Turn the HEX switch to Channel E.

3

Verify signal

Make sure both the R.RX and R.TX LEDs turn ON and stay lit.

Learning a remote, keypad, or sensor

Setup instructions

▼

1

Power the device

Use the Terminal Block or 485 Bus for power.

2

Check LEDs

• Compat LED should be OFF
• Local LED (red) should be ON

3

Set channel

Turn the HEX dial (0-F) to the channel you want to use for learning.

4

Start learning mode

Press the Learn button - the Learn LED will start flashing.

5

Pair the device

• Press the program button on the remote, keypad, or sensor.
• If it transmits successfully, the RF LED will light up and the Learn LED will stop flashing.

Note: The program button is usually on the back. You may need to remove the cover to access it.

6

Test the connection

Connect a 485 motor to one of the 485 ports to test the paired device.

Note: Pegasus can be plugged into a Janus, Suite 16 or Data Hub to control a RS-485 motor

7

To learn more devices

Repeat steps 3-6 for each new device - up to 16 devices total.

Learning Pico remotes to control a RS-485 motor

Setup instructions

▼

1

Power up Pegasus

Use the Terminal Block or 485 Bus to power the unit.

2

Check LEDs

• Make sure the Local LED (red) is ON.
• If the Compat LED is already ON, skip the next step.

3

Enable compatibility mode (if needed)

• Press and hold the PROG button for 3 seconds.
• LEDs will flash, and the Compat LED will turn ON.

4

Select channel

Turn the HEX dial (0-F) to the channel you want to use.

5

Enter learning mode

Press the Learn button - the Learn LED will begin flashing.

6

Pair a remote, keypad, or sensor

• On the device, hold any button for about 7 seconds.
• When the Learn LED stops flashing, the device is paired.

7

Test the connection

Make sure a 485 motor is powered and connected to one of the 485 ports.

Note: Pegasus can be plugged into a Janus, Suite 16 or Data Hub to control a RS-485 motor

Use the paired remote/device to test operation.

8

To learn more devices

Repeat steps 4-7 for each device (up to 16 total).

RTS to 485 smart receiver setup

Setup instructions

▼

Any valid RTS signal received will be converted and sent over the 485 bus - allowing another Pegasus (set up as an RTS Smart Transmitter) to retransmit up to 4000' away.

1

Power up Pegasus

Use the Terminal Block or 485 Bus. Confirm the Local LED (red) is ON.

2

Set channel

Turn the HEX switch to Channel D.

3

Verify LED

Ensure the R.RX LED is ON and steady.

4

Connect data cable

Plug a CAT 5e or better (24AWG) cable into one of the 485 data ports.

485 to RTS smart transmitter setup

Setup instructions

▼

Any valid 485 Smart Receiver group message will be converted and transmitted as an RTS signal.

1

Power up Pegasus

Use the Terminal Block or 485 Bus. Confirm the Local LED (red) is ON.

2

Set channel

Turn the HEX switch to Channel C.

3

Verify LED

Make sure the R.TX LED is ON and steady.

4

Connect data cable

Plug a CAT 5e or better (24AWG) cable into one of the 485 data ports.

Factory reset

Reset instructions

▼

1

Press and hold

Press and hold both the Learn and Program buttons.

2

Wait for confirmation

Hold for about 3 seconds until all LEDs turn on.

This will:

• Erase all stored remotes and motors
• Reset modulation to Legacy
• Return Pegasus to Local mode

IR hex codes

IR command codes

▼

UP:

0000 006c 0000 000c 0006 011b 0006 011b 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 011b 0006 08a4

STOP:

0000 006c 0000 000c 0006 011b 0006 011b 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 011b 0006 011b 0006 08a4

DOWN:

0000 006c 0000 000c 0006 011b 0006 011b 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 00bb 0006 011b 0006 00bb 0006 08a4

Pinouts

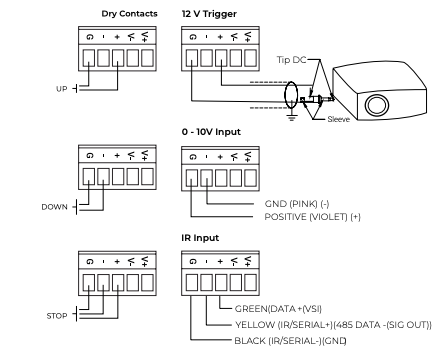

GPI/O and dry contact pinouts

▼

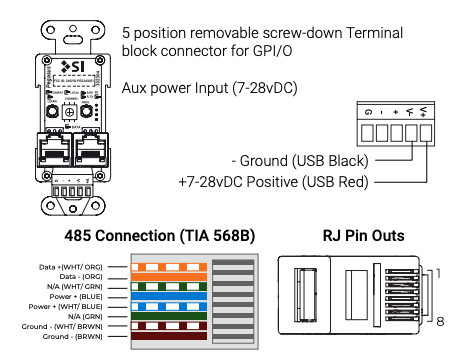

RJ45 and power pinouts

▼

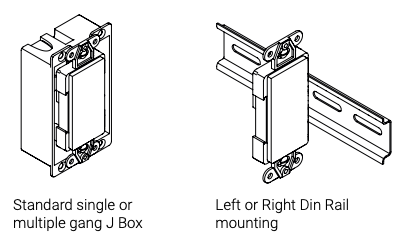

Mounting options

Mounting instructions

▼

Warning: Do not mount Pegasus in a metal J box

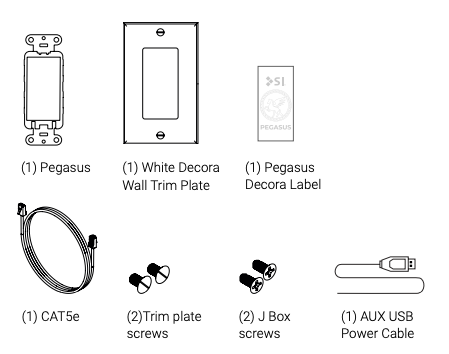

Parts in the box

Included components

▼

Support

For issues, contact Screen Innovations:

• Phone: [phone] Option 3
• Website: www.screeninnovations.com
