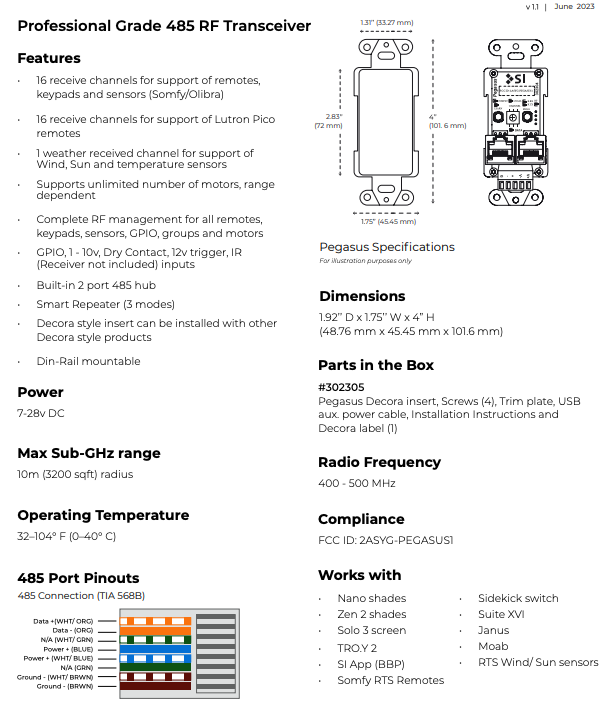

Pegasus - Spec Sheet
Screen Innovations
Pegasus
Professional Grade 485 RF Transceiver
Features
16 receive channels for support of remotes, keypads and sensors (Somfy/Olibra)
16 receive channels for support of Lutron Pico remotes
1 weather received channel for support of Wind, Sun and temperature sensors
Supports unlimited number of motors, range dependent
Complete RF management for all remotes, keypads, sensors, GPIO, groups and motors
GPIO, 1-10v, Dry Contact, 12v trigger, IR (Receiver not included) inputs
Built-in 2 port 485 hub
Smart Repeater (3 modes)
Decora style insert can be installed with other Decora style products
Din-Rail mountable
Specifications
Power
Input voltage
7-28v DC
Radio
Frequency
400 - 500 MHz
Max range
10m (3200 sqft)
Environment
Operating temp
32-104°F
Metric
0-40°C
Dimensions & Compliance
Dimensions
1.92" D × 1.75" W × 4" H
48.76 mm × 45.45 mm × 101.6 mm
Compliance
FCC ID
2ASYG-PEGASUS1
Pinouts & Parts
485 Port Pinouts (TIA 568B)
| Pin | Function | Wire Color |
|---|---|---|
| 1 | Data + | WHT/ORG |
| 2 | Data - | ORG |
| 3 | N/A | WHT/GRN |
| 4 | Power + | BLUE |
| 5 | Power + | WHT/BLUE |
| 6 | N/A | GRN |
| 7 | Ground - | WHT/BRWN |
| 8 | Ground - | BRWN |
Parts in the Box
Part Number: #302305
- Pegasus Decora insert
- Screws (4)
- Trim plate
- USB aux. power cable
- Installation Instructions
- Decora label (1)
Works With
Screen Products
- Nano shades
- Zen 2 shades
- Solo 3 screen
- TRO.Y 2
Control Systems
- SI App (BBP)
- Suite XVI
- Janus
- Moab
Remote Controls
- Somfy RTS Remotes
- Sidekick switch
- RTS Wind/Sun sensors
