Short Throw Motorized: Control Instructions

---

Intelligent motorized screen has 4 control options:

• IR control
• Wall Switch and Dry contact control
• RS485 or RS232 control
• Manual control (cycle control button)

---

• UP : screen UP
• STOP: screen STOP
• DOWN: screen DOWN
• Mirco-up: retract the screen in small increment
• Mirco-down: lower the screen in small increment
• IR: transfer signal by IR (Wavelength: 940Nm)

---

IR Control

Programming code setting:

• Screen connects to power within 10 seconds(in programming mode)
• Press the UP & STOP button remove as together on the remote.
• Pairing is completed.

---

Programming code clearing:

• Screen connects to power within 10 seconds(in programming mode)
• Press the UP & STOP button together on the remote.
• Clearing is completed.

---

Manual control

• The Manual Control button is located on the left side of the enclosure near the RJ45 connection.

---

Dry Contact

• Please check the wire and function in the below for RJ45

Using a 568B Termination:

UP: BLUE (Pin 4) and BROWN (Pin 8)

DOWN: BLUE (Pin 4) and WHITE/BLUE (Pin 5)

STOP: BLUE (Pin 4) and WHITE/BROWN (Pin 7)

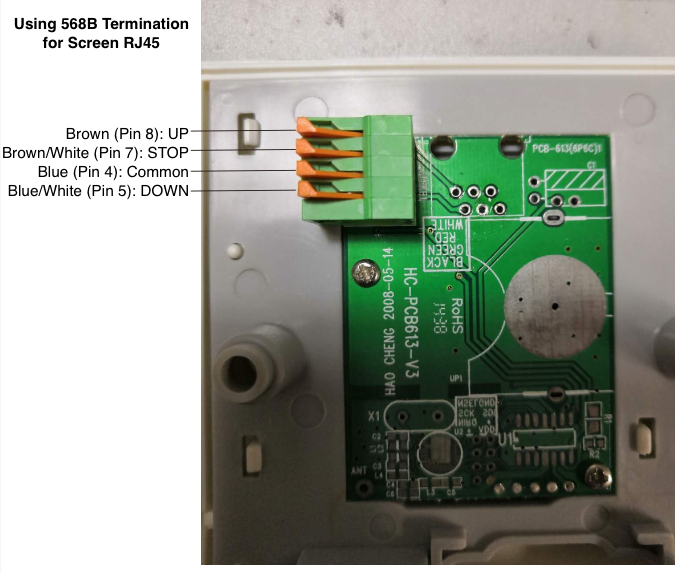

Wall Switch Pin out

---

RS485 or RS232 control

RS485 / RS232 port setting:

• Baud Rate: 2400
• Data Bits: 8
• Odd-even check: None
• Stop bits: 1

---

Hexadecimal control code:

• Up: ff ee ee ee dd
• Stop: ff ee ee ee cc
• Down: ff ee ee ee ee
• Some central control need to reset address code: ff ee ee ee aa

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
