Short Throw Motorized: Wall/Ceiling Installation Instructions

---

• Please ensure that the upper and lower mounting brackets are installed at the correct distance and in the correct position.
• Use the appropriate screws for installation according to the type of wall material.
• For wooden walls, use tapping screws, while for concrete walls, use tapping screws with an expansion fixture.
• Failure to use the correct screws may result in improper installation or damage to the wall or product. After installation, verify that the screen is level and flat on both the left and right sides.
• Ensure that the screen is properly aligned and securely fastened to prevent any potential issues or damage.

---

Step 1: WALL OR CEILING INSTALLATION

• Before installation, determine the optimal mounting location for your cassette.

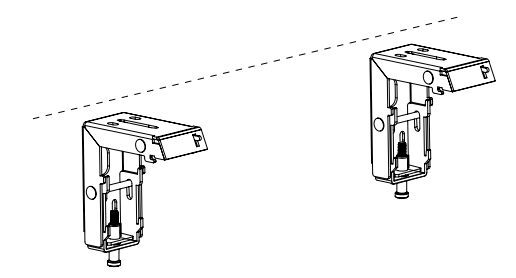

• For a secure and level installation, install the brackets between 1” and 8” from each side of the cassette.
• When ceiling mounting, it may be necessary to adjust the brackets by shimming one down to ensure proper alignment.
• To achieve a sturdy and stable installation, it is recommended that you mount the brackets to a stud for wall mounting or a joist for ceiling mounting.
• Mounting location and hardware for ceiling, flown, and wall brackets must be capable of handling a system weight of 55 pounds.”

---

Step 2: WALL OR CEILING INSTALLATION

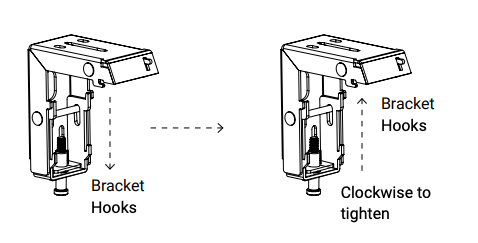

• Ensure the bracket latch is fully down by loosening the locking screw.

---

Step 3: WALL OR CEILING INSTALLATION

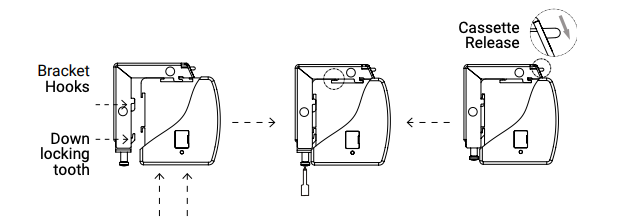

• To secure the casing, place the two ends of the casing flatly onto the bracket, ensuring proper alignment.
• Then, push the casing into the bracket until the locking tooth engages.
• You will hear a distinct locking sound when the casing is securely fixed onto the bracket.
• Once locked, tighten the lock screw to complete the installation.
• Please refer to the following illustration for guidance.
• To remove the screen, first loosen the locking screw, hold the release latch down and pull the screen away then down from the bracket.

---
