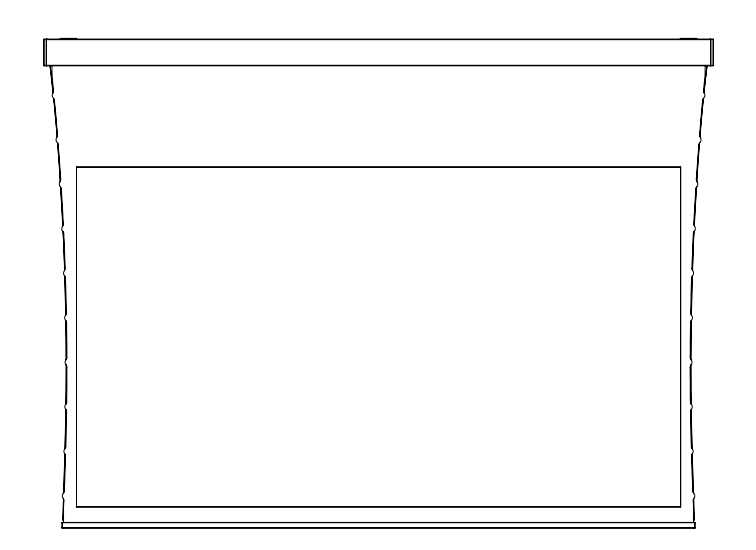

SOLO 3 – INDOOR
The future of screens, made modern.
Features
Clean industrial design blends into contemporary modern décor, available in White and Black
Available in 9 screen material options including Slate, Pure White, Pure Gray, Solar, and 360 Rear-Pro
CNC-cut tab tensioning ensures a flat, smooth-as-glass image
External or Flush mountable with multiple bracket options
New MOAB Control Board with 12v Trigger, IR, Dry Contact, IR Remote, and 485 on every low-voltage or AC-485 motor
Power in 3 motor types: patented magnetic rechargeable, 24v low-voltage, and AC power

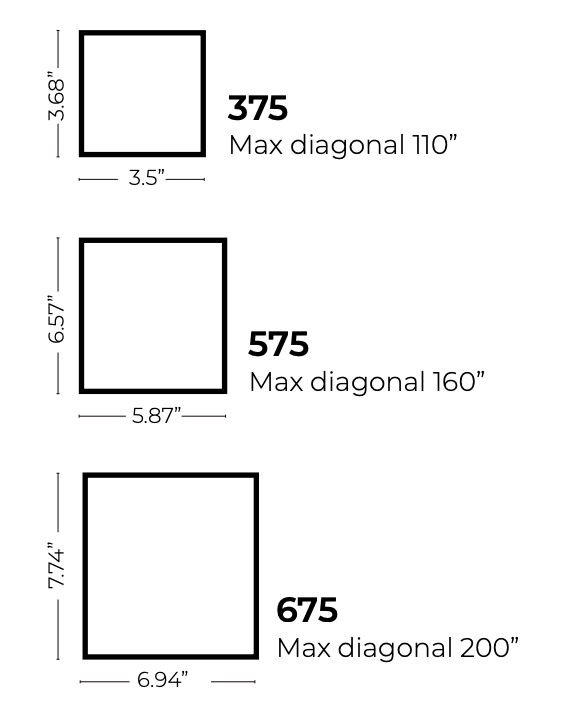

Cassette Sizes
375
Max diagonal 110"
Width:
3.5"
Height:
3.68"
575
Max diagonal 160"
Width:
5.87"
Height:
6.57"
675
Max diagonal 200"
Width:
6.94"
Height:
7.74"
Compatible Power Sources
Li. Rechargeable
RTS
Patented magnetic charging
375 only
24v DC
RS-485
Low voltage
110v AC*
RS-485
AC power
*220v international
Aspect Ratios
Supported
16:9 | 16:10
External Colors
White
Black
Flush Colors
White
Power Specifications
Operating Voltage
Class 2, 24–28v DC
Protection
Over/Under Voltage & Current
Janus (Optional)
Electrostatic & Galvanic Isolation
Power Source
SI-Supplied Required
Environment
Rated For
Indoor
Temperature Range
32° – 110° F
Max Humidity
90%
Wet Environments
Not Rated
Material Options
Slate 1.2
Slate AT 1.2
Pure White 1.3
Pure White AT 1.3
Pure Gray .85
360 Rear-Pro
Solar Gray
Solar White

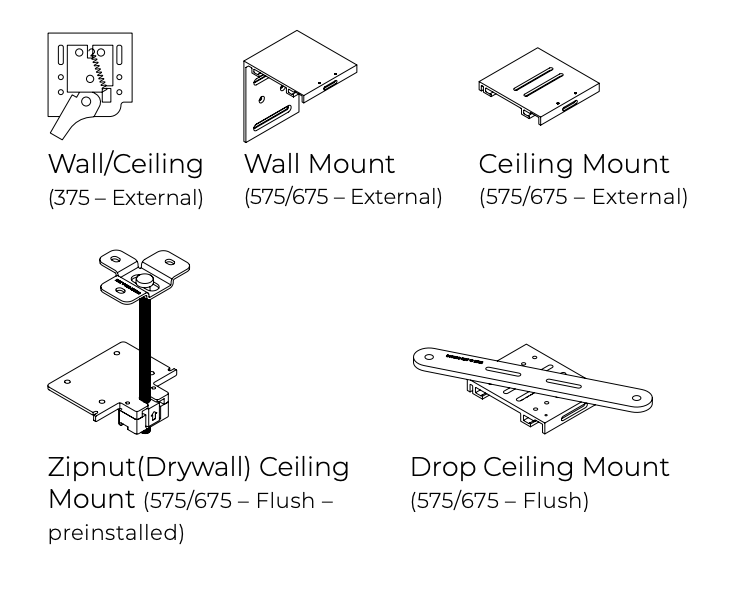

Bracket Options
External Mount
Wall/Ceiling
375 – External
Wall Mount
575/675 – External
Ceiling Mount
575/675 – External
Flush Mount
Zipnut (Drywall) Ceiling
575/675 – Flush (preinstalled)
Drop Ceiling
575/675 – Flush
Control Options
Contact Closure
Optional for RTS
12v Trigger
Optional for RTS
Built-in Infrared
Optional for RTS
RF Remote
Optional for 485
RS/RF-485 Keypad
Standard
IP Control
via TRO.Y / LinkPro Z
Native C4
via C4 ZBDMI
Flexible Configuration
Solo 3 – 485 Screens
Solo 3 – RTS Screens
* when using a compatible gateway
Size & Motor Compatibility
| Diagonal | External | Flush | Li. RTS | LV 485 | AC 110v | AC 220v |
|---|---|---|---|---|---|---|
| 80"–110" | 375 | 575 | 375 | 375 | 375 | NA |
| 110"–160" | 575 | 575 | NA | 575 | 575 | 575 |
| 160"–200" | 675 | 675 | NA | 675 | 675 | 675 |

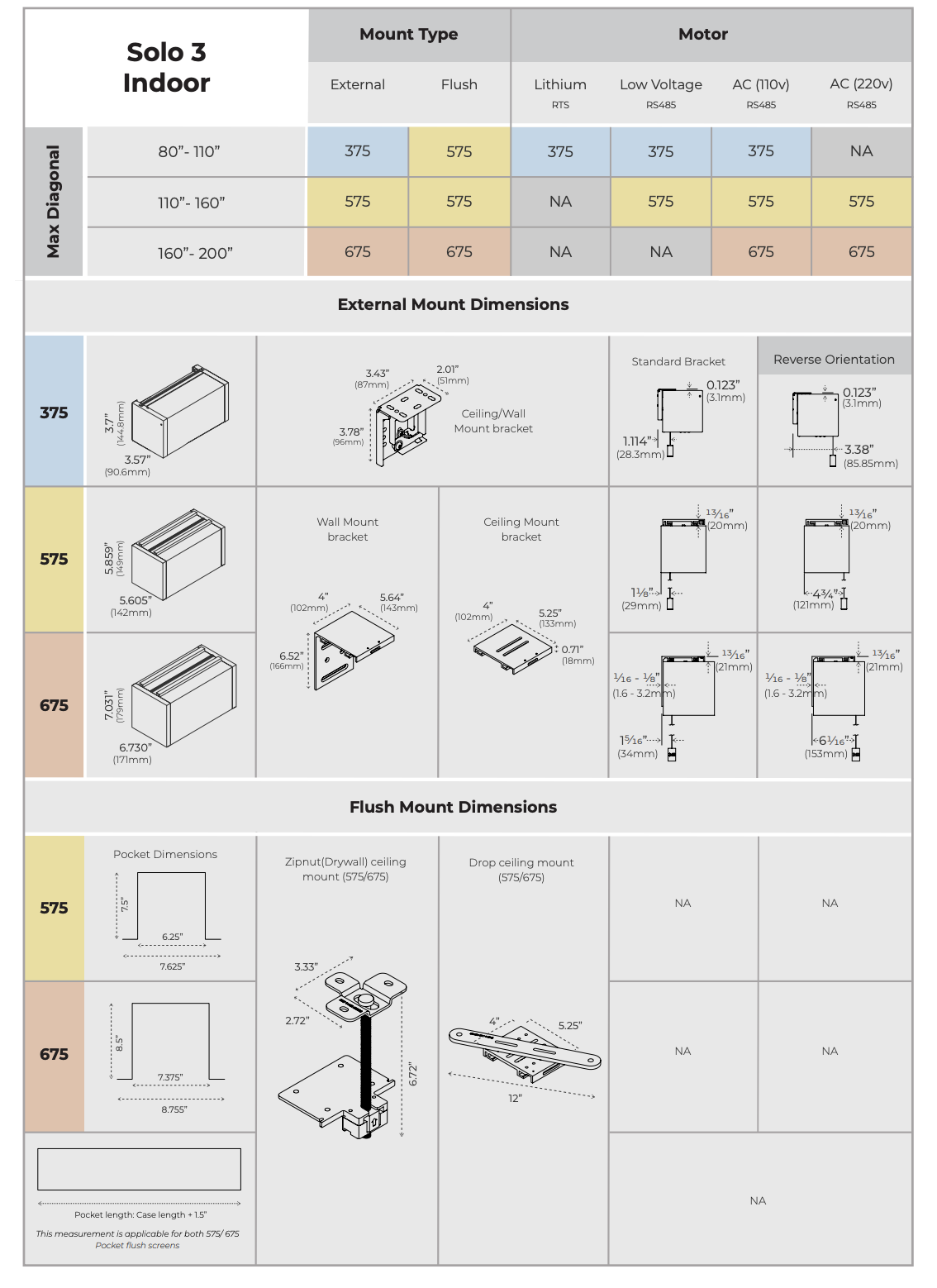

External Mount Dimensions
| Cassette | Case Width | Case Height | Bracket Details |
|---|---|---|---|
| 375 | 3.57" (90.6mm) | 3.7" (144.8mm) | Wall/Ceiling: 3.43" × 2.01" × 3.78" |
| 575 | 5.605" (142mm) | 5.859" (149mm) | Wall: 4" × 5.64" | Ceiling: 4" × 5.25" |
| 675 | 6.730" (171mm) | 7.031" (179mm) | Wall: 6.52" | Ceiling: 0.71" standoff |
Standard Bracket vs Reverse Orientation
| Cassette | Standard Bracket | Reverse Orientation |
|---|---|---|
| 375 | 0.123" offset | 1.114" depth | 0.123" offset | 3.38" depth |
| 575 | 1-1/8" (29mm) | 13/16" standoff | 4-3/4" (121mm) | 13/16" (20mm) standoff |
| 675 | 15/16" (34mm) | 1/16–1/8" gap | 13/16" (21mm) | 6-1/16" (153mm) | 1/16–1/8" gap | 13/16" |
Flush Mount Dimensions
| Cassette | Pocket Dimensions | Zipnut (Drywall) | Drop Ceiling |
|---|---|---|---|
| 575 | 6.25" × 7.625" × 12" | 3.33" × 2.72" | NA |
| 675 | 7.375" × 8.755" × 8.5" | 4" × 5.25" × 6.72" | NA |
Pocket Length: Case length + 1.5" — Applicable for both 575/675 pocket flush screens.
Screen materials may expand and contract slightly over time. SI allows a 1.5% tolerance within the viewing surface.
