- Engineered specifically for the Motorized Shade Industry, the 1K PoE Switch combines high-performance power delivery, streamlined efficiency, and outstanding value—all in one compact, game-changing device.
- Unlike traditional PoE switches that depend on bulky external power supplies, the 1K PoE features a built-in, silent, and cool-running power system. This integrated design not only reduces clutter but also ensures reliable, whisper-quiet operation tailored to professional shade automation environments.

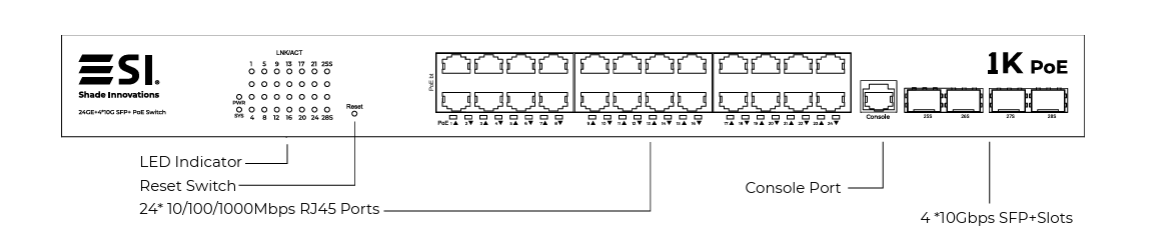

Front Panel
The front panel consists of 24*10/100/1000Mbps adaptive RJ45 ports and 4*10Gbps SFP+ slots and related indicators, as shown in the following figure:
-
10/100/1000Mbps RJ45 Ports:
- Supports 10Mbps, 100Mbps, or 1000Mbps rate adaptation, auto-MDI /MDIX, and each port has a corresponding indicator, that is, port indicators 1-24 as shown on the panel in the figure above.
-
10Gbps SFP+ Slots:
- SFP slots are independent SFP slots on the right of the panel. Each port has a corresponding indicator, that is, the indicator 25-28 on the panel in the figure above.
-
Reset Button:
- After holding the reset Switch for 5S, the initial state will be restored when the hand is released.
-
Console Port:
- The Console port is used to connect to the serial port of a computer or other terminal device to manage or configure Switch.

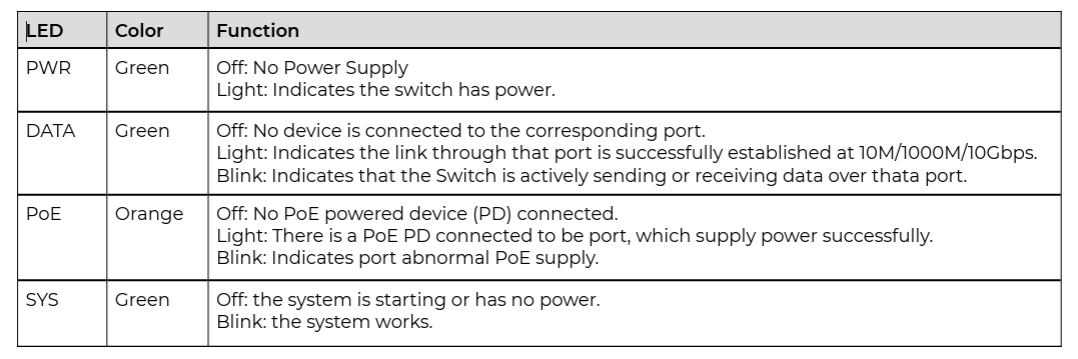

LED Indicator
The LED indicators of the Switch are shown in the following table. Users can monitor the work and running status of the Switch conveniently and quickly through the following indicators:

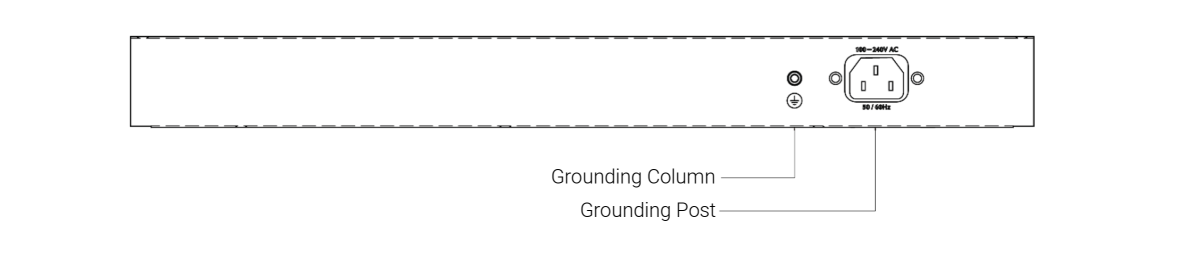

Rear Panel
-
AC Power Port:
- The power input ranges from 100-240V AC at 50/60 Hz.
-
Lightning Protection Grounding Post:
- To prevent lightning strike damage to the switch, please use the wire grounding post next to the AC power port.
Installation Guide
⚠️ Warning: To avoid equipment damage and personal injury, observe the following precautions:
- The Switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference.
- The humidity of the Switch equipment room should be lower than 90%.
- The grounding of the Switch shall comply with the grounding requirements described in this manual.
- The Switch voltage should be stable to prevent abnormal operation of the Switch caused by power supply voltage mutation, fluctuation and other phenomena.
- Keep a proper distance between the Switch and other devices.
- To avoid the danger of electric shock, do not open the chassis without authorization; If any fault occurs, contact support@shadeinnovations.com.
✅ Important: Use a three-hole socket with safe grounding, and ensure that the PGND cable of the power socket is properly grounded. Ensure sufficient space for heat dissipation and ventilation of the Switch.
Before installation, make sure that the proper working environment is available, including power requirements, adequate space, proximity to other equipment to be connected, and other equipment in place. Please confirm the following installation requirements
- Check whether cables and connectors required for installation are in place (less than 100m).
- Environment requirements: The operating temperature ranges from 0°C to 40°C and the relative humidity ranges from 5% to 90%.

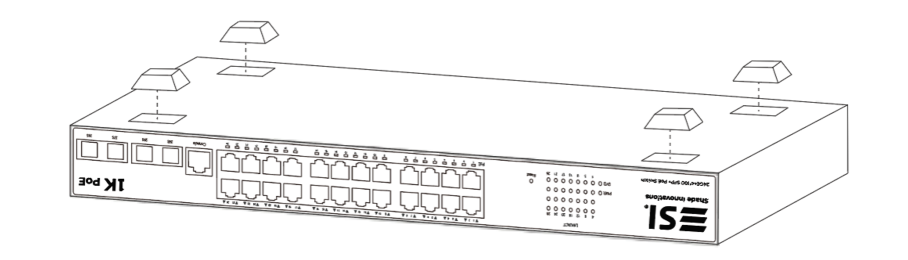

Desktop Installation
- Place the bottom of the Switch face up on a large enough stable desktop.
- Using the included footpads in the box, attach them to the bottom of the chassis of the Switch; this will prevent external vibration.
- Carefully position the Switch upright on the workbench.
- Check the grounding and stability of the rack you wish to install in.
Rack Mounting
⚠️ Warning: The rack mounting ears for this device are not used for bearing weight, they are only used for f ixation. It is highly recommended to install the switch with a shelf underneath, or if applicable, using guide rails on the rack.
- Install the included rack mounting ears to both sides of the front panel of the Switch using the provided screws.
Enabling the Switch
⚠️ Warning: Before powering on the device, ensure that the voltage is correct; otherwise, the device may be damaged. (Power input range: 100-240V AC 50/60Hz).
- After the Switch is plugged in, it automatically initializes.
PoE Motor Consumption

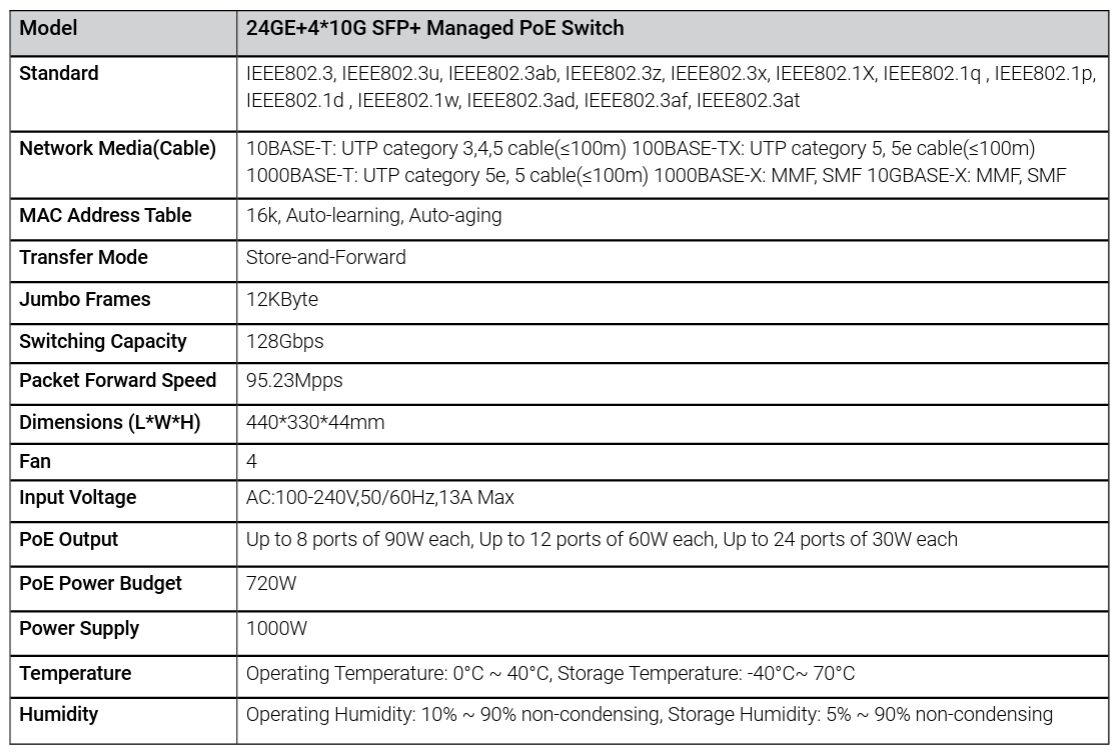

Specifications
For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
