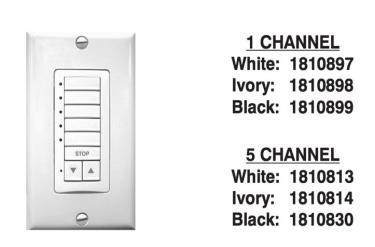

Somfy DecoFlex WireFree™ RTS Keypad Overview

▼

The DecoFlex RTS Switch is a wireless radio transmitter that works with all Somfy RTS motors and externally mounted RTS receivers.

Key Features

▼

• Wireless Control: Sends commands via radio waves (433.42 MHz)
• Power Supply: 3V lithium battery (CR2450)
• Operating Temperature: +5°C / 41°F to +40°C / 104°F
• Control Range: Up to 65 ft
• Design: Fits standard Decora wall plates

Adding a DecoFlex WireFree™ RTS Wall Switch

▼

Initial Installation Guide

Important: During the initial setup, it's recommended to only provide power to the motor or RTS receiver that you are programming. This prevents accidentally pairing with unintended devices.

Step-by-Step Instructions:

1. Put the RTS Motor or Receiver into Programming Mode
   • Follow the specific instructions included with your RTS motor or receiver to enter programming mode.
   • The motor or receiver will indicate it's ready (usually via movement or LED feedback).
2. Select the Channel on the DecoFlex Switch
   • Press the desired channel button on the DecoFlex switch.
   • The LED next to the button will light up, confirming your selection.
     (See Figure 1 for channel layout.)
3. Pair the Switch with the Motor or Receiver
   • Using a paperclip or similar tool, press and hold the small programming button on the DecoFlex switch for no more than 1 second.
   • The motor or receiver will confirm pairing—this may be a jog of the motor or a blink of an LED.

Once completed, the DecoFlex WireFree RTS switch will be paired and ready to control the selected motor or device.

Adding Additional Channels or DecoFlex WireFree™ Wall Switches

▼

Tip: You can expand your setup by adding more channels or additional DecoFlex switches. Follow the steps below to pair new devices with your existing motor or RTS receiver.

Step-by-Step Instructions:

1. Put the Motor or Receiver Back into Programming Mode
   • Using a paperclip or similar tool, press and hold the program button on the existing DecoFlex switch or channel that is already paired.
   • Hold for about 3 seconds.
   • The RTS motor or receiver will confirm programming mode (usually by jogging or flashing).
2. Select the New Channel or Switch to Add
   • On the new DecoFlex switch, press the channel button you want to pair.
   • The LED next to the button will light up, confirming your selection.
     (Refer to Figure 1 below for button locations.)
3. Finalize the Pairing
   • With a paperclip or tool, briefly press the programming button on the new DecoFlex switch (no more than 1 second).
   • The RTS motor or receiver will confirm the new pairing.

Reference – Figure 1

• LED Indicator – Lights up when a channel is selected
• Channel Buttons – Used to choose which channel to pair
• Program Button – Small button for pairing new channels/switches

Deleting Specific Channels or DecoFlex WireFree™ Wall Switches from Memory

▼

Important: When deleting, do not perform the procedure on the device or channel you are trying to remove. Always initiate the process from a previously programmed switch or channel.

Step-by-Step Instructions:

1. Enter Programming Mode Using an Existing Channel
   • Using a paperclip or similar tool, press and hold the program button on an already programmed DecoFlex switch or channel (not the one being deleted).
   • Hold for about 3 seconds.
   • The RTS motor or receiver will confirm that it's in programming mode (usually via a jog or light response).
     📌 Refer to Figure 1 below for button locations.
2. Select the Channel You Want to Delete
   • On the DecoFlex switch to be removed, press the channel button you want to delete.
   • The LED next to the button will light up to confirm the selection.
3. Confirm the Deletion
   • On the same DecoFlex switch, briefly press the program button (no more than 1 second).
   • The RTS receiver or motor will confirm the deletion of that channel or switch.

💡 Only one channel can be deleted per session. To remove multiple channels, repeat the full process starting at Step 1 for each.

Reference – Figure 1

• LED Indicator – Lights up when a channel is selected
• Channel Buttons – Choose the channel to delete
• Program Button – Used to initiate delete pairing

Operating Window Coverings with the DecoFlex WireFree™ RTS Switch

▼

Tip: Ensure your switch has been properly programmed before attempting to operate your window coverings. Refer to the programming section if needed.

Step-by-Step Instructions:

1. Select the Desired Channel(s)
   • Press the CHANNEL BUTTON(s) that correspond to the window covering(s) you want to control.
   • The LED next to each button will illuminate to confirm selection.
   • To deselect, press the same channel button again — the LED will turn off.
2. Operate the Covering(s)
   • To raise the window covering(s), press the UP button.
   • To lower the window covering(s), press the DOWN button.
3. Stop Movement at Any Time
   • Press the STOP button to halt the movement of the window covering(s) at any position.
     📌 See Figure 2 for button locations.
4. Use a "Preferred Position" (If Programmed)
   • If your system has a Preferred Position (intermediate preset), press the STOP button while the covering is stationary to move it to that saved position.
     📄 Refer to your specific motor or RTS receiver's installation manual to program or update this feature.

⚠️ Notes:

• If you press UP, DOWN, or STOP without first selecting a channel, the DecoFlex will default to the last selected channel(s).
• Selecting multiple channels for group control will result in sequential activation, meaning each channel will activate one after the other (from channels 1 through 5).

Installing the DecoFlex WireFree™ RTS Wall Switch

▼

With Included SOMFY Low Voltage Mounting Bracket

About the Mounting Bracket

The included SOMFY low-voltage bracket allows you to install your DecoFlex WireFree RTS switch without an electrical box.
It supports two configurations:

Configuration 1: Mount Adjacent to Existing Light Switch

Use this setup when installing the DecoFlex switch next to a pre-existing Decora-style light switch.

• Designed to fit inside a double-gang (2-gang) wall plate for a seamless, professional finish.
• ⚠️ Do not use with "old-work" or retrofit electrical boxes.
• ✅ For best wireless performance, avoid metallic electrical boxes.

Configuration 2: Stand-Alone Installation

Use this setup when mounting a single DecoFlex switch in its own space.

Tools You'll Need

1. Phillips and flathead screwdrivers
2. Drywall saw
3. Wall stud finder
4. Painter's tape (or similar non-marring tape)
5. Pencil or marker

🔧 Installation Steps (Adjacent Mounting – Configuration 1)

1. Power Down and Prep

• Turn off power to the existing wall switch at the breaker.
• Remove the existing wall plate to expose the electrical box.

2. Locate the Stud

• Use a stud sensor to find the stud nearest the exposed box.
• Mark the stud location with tape or pencil for reference.

3. Position and Mark Bracket

• Take the flat side of the mounting bracket and align the thin edge to the outside of the existing box (opposite the stud).
• Ensure it aligns vertically with the existing switch.
• Trace the inner edge of the bracket onto the drywall with a pencil.

4. Cut the Wall Opening

• Carefully cut along your traced lines using a drywall saw.
  ⚠️ Do not cut larger than the outline.
• Recommended hole size: 1 5/8" W x 3 7/16" L

5. Insert the Bracket

• Slide the bracket into the cut hole with the thin side facing the existing switch box.

6. Secure the Bracket

• Bend the built-in tabs 90 degrees behind the drywall to hold the bracket snugly in place.

7. Install the DecoFlex Switch

• Position the DecoFlex RTS switch into the bracket, aligning the screw holes.
• Tuck the wire antenna behind the wall, keeping it as straight as possible.
• Secure the switch with the included screws.

8. Finish with a 2-Gang Wall Plate

• Attach a double-gang Decora-style wall plate over both the existing switch and the DecoFlex to complete your installation.

Replacing the Battery – DecoFlex WireFree™ RTS Switch

▼

The DecoFlex WireFree RTS is built for years of reliable use, but if the battery becomes discharged, you may notice the following:

• The LED indicators will no longer light up when pressing a channel button or control command (UP / STOP / DOWN).
• Radio signals may weaken or stop reaching the RTS motor or receiver.

🪫 When to Replace the Battery:

• LED lights do not illuminate
• Commands are no longer received by the shade or motor
• Signal range is noticeably reduced

Required:

• Replacement battery: 3V Lithium Battery (CR2450 type)
• Small flathead screwdriver (optional for prying)

🔧 Battery Replacement Steps

1. Access the Switch Base

• Remove the DecoFlex switch from the wall mounting bracket.
• Gently expose the switch base assembly where the battery is located.

2. Remove the Old Battery

• Carefully slide the existing CR2450 battery out of its holder.

3. Insert the New Battery

• Install the new CR2450 battery, ensuring correct polarity is maintained (match + and - symbols).

4. Reinstall the Switch

• Reinsert the switch into the mounting bracket and secure with screws, if needed.

⚠️ Battery Disposal Note

Please dispose of used batteries responsibly, following local disposal or recycling regulations.

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
