Nano Pocket: Duo - 275 - Installation Instructions

---

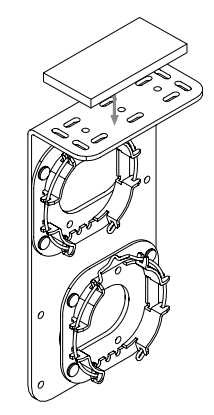

Step 1: Leveling Shims (Optional)

• Used if the window frame is out of level.
• Connect to shade brackets before installation
• Do not use more than 2 leveling shims per bracket.

---

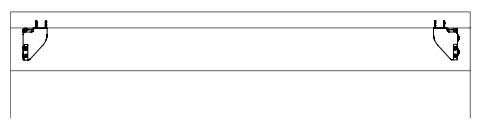

Step 2: Installing the Brackets

• Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered with.
• Adjust accordingly

---

Step 3: Installing the Brackets

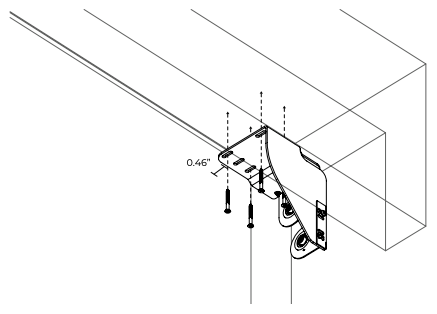

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

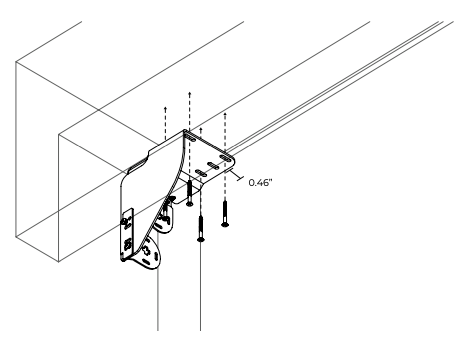

• Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

---

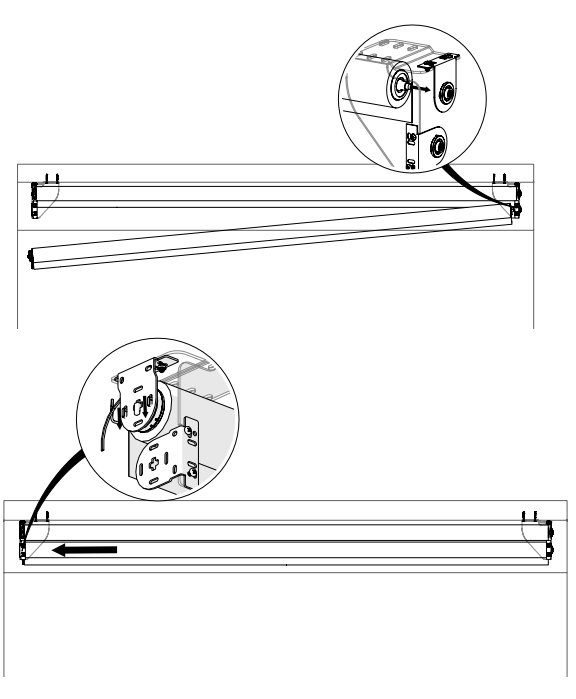

Step 4: Installing the Roll

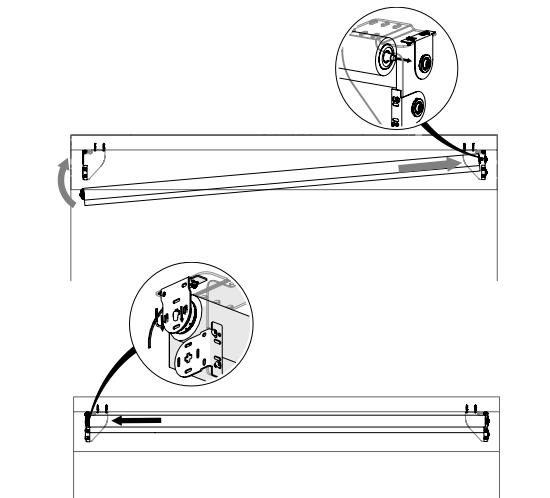

• To install the roll: First, insert the idler side of the roll in the idler side bracket.
• Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.

• Repeat the same step 4 for the shades below.

---
