Nano Open Roll: 275 Installation Guide

275 Open Roll

375/475 Open Roll

Narrow Open Roll - External Battery

Terminating the wires

Using spacer block and leveling shims

Mounting the Bracket

Installing the Fabric Roll

Parts in the Box

---

Step 1: Terminate the Wires (If Necessary)

• Determine what wiring system have you ordered and do the pre-wire based on what is shown below.

---

• Before installing the shades, verify whether the shade was ordered as standard roll or reverse roll.
• Though illustrations in this manual show standard roll shades, the installation for reverse roll shades is the same.

---

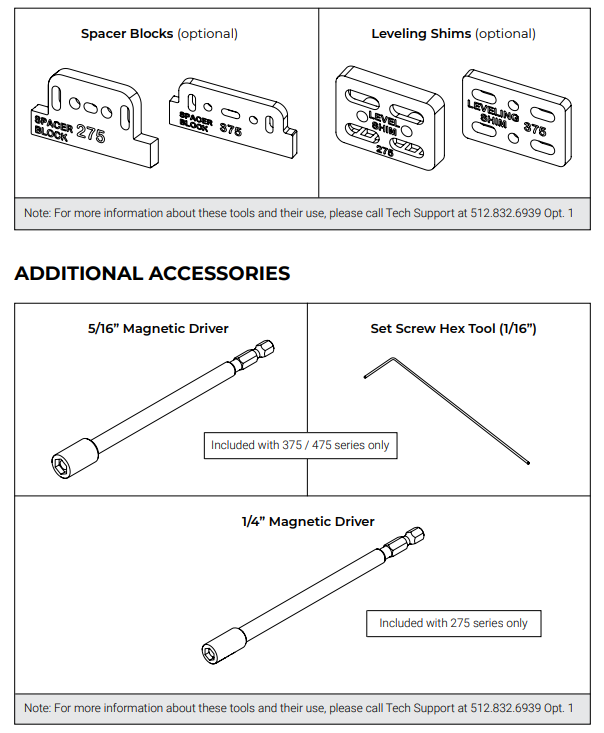

Step 2: Spacer Blocks and Leveling Shims

✅ Important: Spacer Blocks are used to clear an obstruction in the fabric path.

Spacer Blocks - used to clear an obstruction in the fabric path.

• Connect spacer blocks to shade brackets before installation.

⚠️ Warning: Do not use more than 4 spacer blocks per bracket.

---

✅ Important: Leveling Shims are used if the window frame is out of level.

• Connect to shade brackets before installation.

⚠️ Warning: Do not use more than 2 leveling shims per bracket.

---

Step 3: Mounting the Brackets

• Install wall bracket/end cap assembly with the supplied screws.

• Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered.
• Adjust accordingly

✅ Important: Brackets must be level before the shade is installed.

• Remove idler end cap with flat screw driver.

---

Step 4: Installing the Fabric Roll

FOR LOW VOLTAGE MOTORS:

For Wire Free motors, CLICK HERE

• Connect shade and pre-wire connectors, snap into bracket.

• Insert motor side completely.
• Then, while supporting motor side, put idler end cap over the idler and snap into place.

✅ Important: When installing, the shade should be at the upper limit.

• Put the End Cap's bearing over the idler pin.
• Slide the End Cap onto the mounted bracket.

💡 Tip: There will be an audible "Click"

---

FOR WIREFREE MOTORS:

• With the charging magnet secured in the end cap, connect the plug into the motor head
• Insert the motor side into the bracket

• Put the End Cap's bearing over the idler pin.
• Slide the End Cap onto the mounted bracket.

💡 Tip: There will be an audible "Click"

---

Parts in the Box

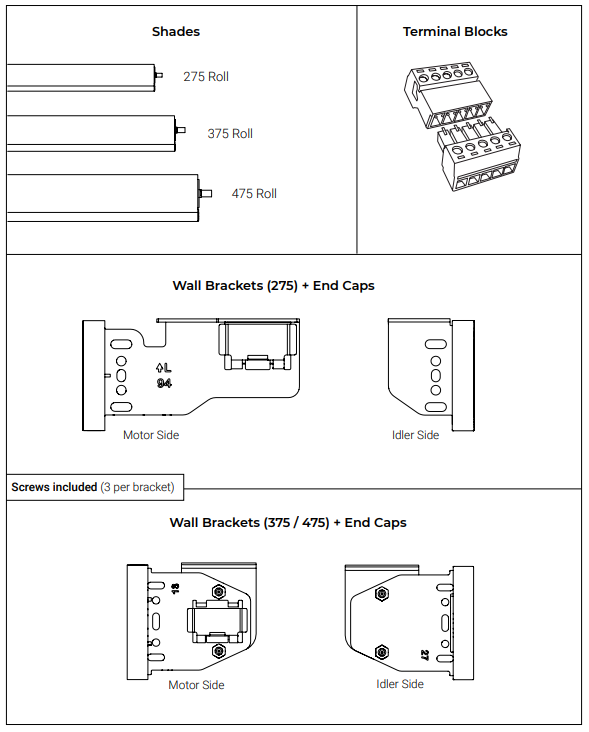

PARTS LIST for Nano Roll - Wired 24v DC - 485 / RTS

---

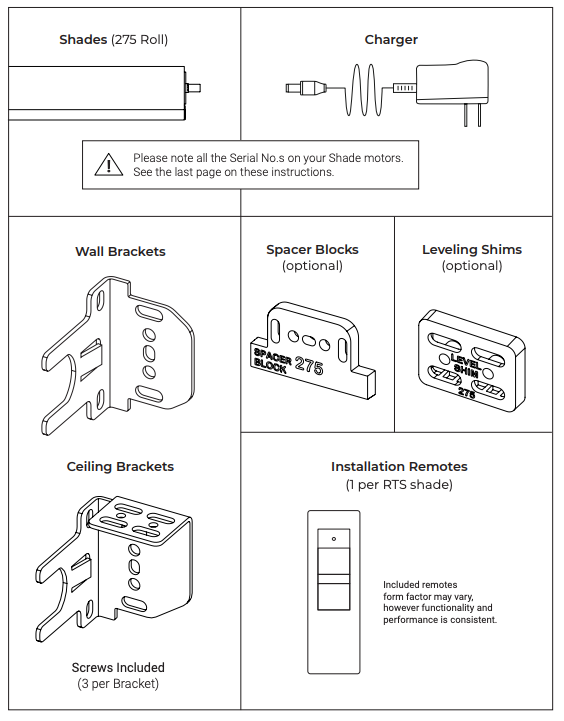

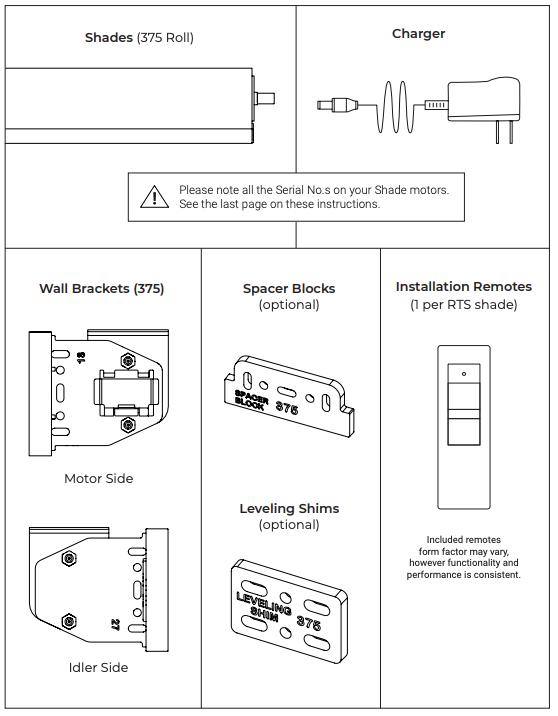

PARTS LIST for Nano Roll - Wire Free

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
