Short Throw Lift: Setup, Remote and Integration

---

The Short Throw Lift Motorized screen can be controlled by the following methods:

• Manual Control button
• 12v Trigger Control
• Infrared Remote

---

Manual Control

• The Manual Control Button is located on the power port side of the casing.
• Pressing the button will command the screen to extend, pressing the button will command the screen to stop, then again to retract, then stop in sequence.

12V Trigger

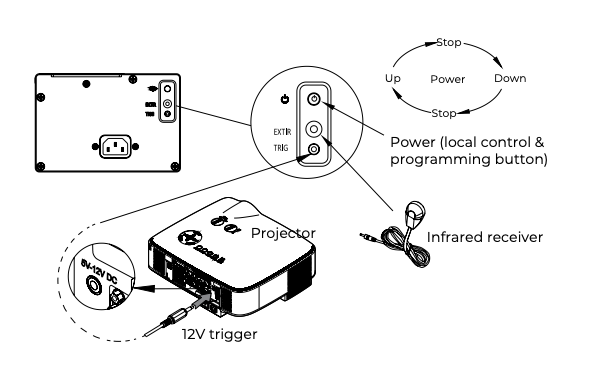

• Connect the 12V Tigger Port and the 12V port with a 12V trigger cable; the projection screen is then synchronized with the projector (when the projector is powered on, the screen will automatically extend to set position; when the projector is powered off, the screen will retract).

Infrared Remote

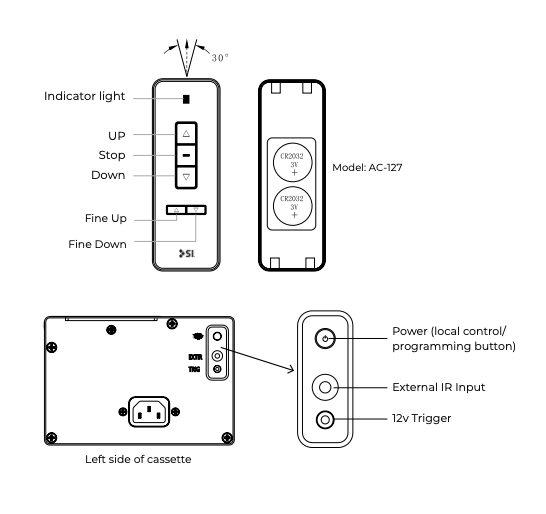

• The IR Remote is required to set the upper limit and for wireless operation of the screen.

---

Limit Setting using the IR Remote

• Press the UP button, to begin extending the screen, the door will open fully before the screen can begin deployment.
• Press the STOP button close to the desired extension height.
• Press and hold the LOCAL CONTROL/ PROGRAMMING BUTTON until the screen jogs.
• Use the FINE UP and DOWN on the remote to fine tune the deployment height.
• Press and hold the LOCAL CONTROL/ PROGRAMMING BUTTON until the screen jogs, this step finalizes the deployment height.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
