Short Throw Lift: Installation Instructions

Table of Contents:

Surface Mount

Wall Mount

Controlling the Screen

Limit Setting

Cleaning and Maintenance

Parts in the Box

Structural Diagram

---

⚠️ Warning: The screen is slightly offset within the cassette, to account for this, the case should be installed offset 1” to the left.

Surface Mount Installation

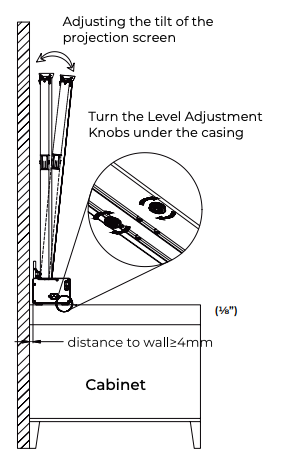

• Place the projection screen flat on the cabinet.
  • Leave at least 3/16” of room from the wall for the decorative door’s operation

✅ Important: The screen may tip forward or back, if there is too much tilt, maintain control of the case when performing the next step.

• Fully extend the screen using the remote or local control button and use the cassette leveling feet to adjust the projection screen tilt.

---

Wall Mount Installation

⚠️ Warning: The screen is slightly offset within the cassette, to account for this, the case should be installed offset 1” to the left.

1. Measure the total length of the casing and verify there is sufficient clearance and no obstructions on the wall.
2. Measure the height where the bottom of the projection screen will be placed and mark it on the wall. Note: Apply masking tape and make your marks on the tape.

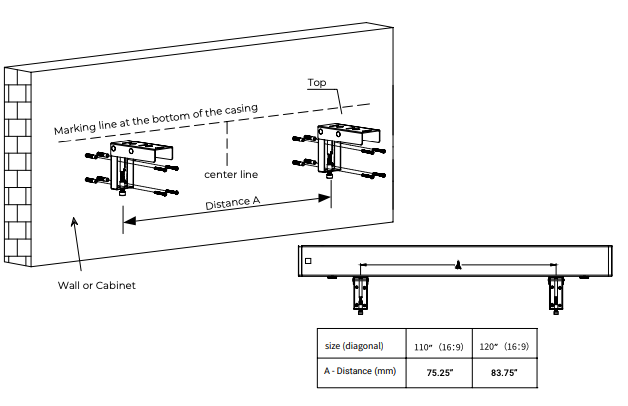

3. Reference your screen size on the below table, and use value “A” on the table for the recommended distance between the two mounting brackets and mark the location along the previously made reference line.
4. The top of the brackets should be mounted so the top is in flush with the line representing the bottom of the screen case.
5. Drill the 4 holes for each bracket on the wall and install an Expansion Fixture in each hole.
6. Place the Adjustable Brackets against the wall aligning the mounting holes with the Expansion Fixtures and tighten using the included 5x40 Tapping Screws

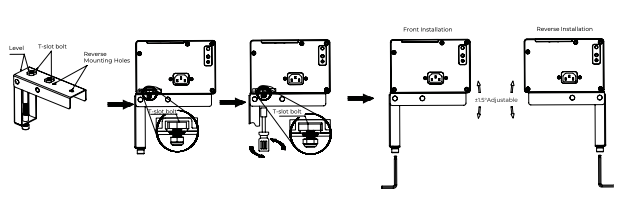

7. Adjust the T-slot bolt on the Adjustable Bracket so that they are parallel with the wall (see diagram), place the projection screen on the Adjustable Brackets, adjust the projection screen horizontally to the desire position, tighten the T-slot bolt from under the Adjustable Brackets to lock in place. (T-slot bolt are installed for front installation in default, user can install the T-slot bolt to the Reverse Mounting Holes when needed for reversed installation).
8. Connect to power, fully extend projection screen; observe for tilt, adjust tilt using the Allen Key to desire position to finish installation.

---

DECORATIVE DOOR ANTI-PINCH FUNCTION

💡 Tip: The decorative door of this product is equipped with a flexible door opening and closing device, which can protect hands or objects from accidentally extending into the screen when closing the door.

---

Controlling the Screen

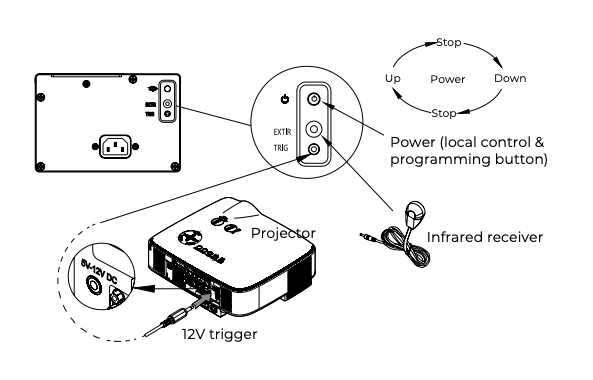

The Short Throw Lift Motorized screen can be controlled by the following methods:

Manual Control

• The Manual Control Button is located on the power port side of the casing.
• Pressing the button will command the screen to extend, pressing the button will command the screen to stop, then again to retract, then stop in sequence.

12V Trigger

• Connect the 12V Tigger Port and the 12V port with a 12V trigger cable; the projection screen is then synchronized with the projector (when the projector is powered on, the screen will automatically extend to set position; when the projector is powered off, the screen will retract).

Infrared Remote

• The IR Remote is required to set the upper limit and for wireless operation of the screen.

---

Limit Setting using the IR Remote

1. Press the UP button, to begin extending the screen, the door will open fully before the screen can begin deployment.
2. Press the STOP button close to the desired extension height.
3. Press and hold the LOCAL CONTROL/ PROGRAMMING BUTTON until the screen jogs.
4. Use the FINE UP and DOWN on the remote to fine tune the deployment height.
5. Press and hold the LOCAL CONTROL/ PROGRAMMING BUTTON until the screen jogs, this step finalizes the deployment height.

---

Cleaning and Maintenance

💡 Tip: Ultra-short throw ambient light rejection fabric: DO NOT USE RAG OR PAPER TOWEL TO WIPE - Use brush provided to brush lightly horizontally along the texture of the screen to remove dust or other fine particles. - For light-colored smudges that affects viewing, try removing with residue-free tape.

---

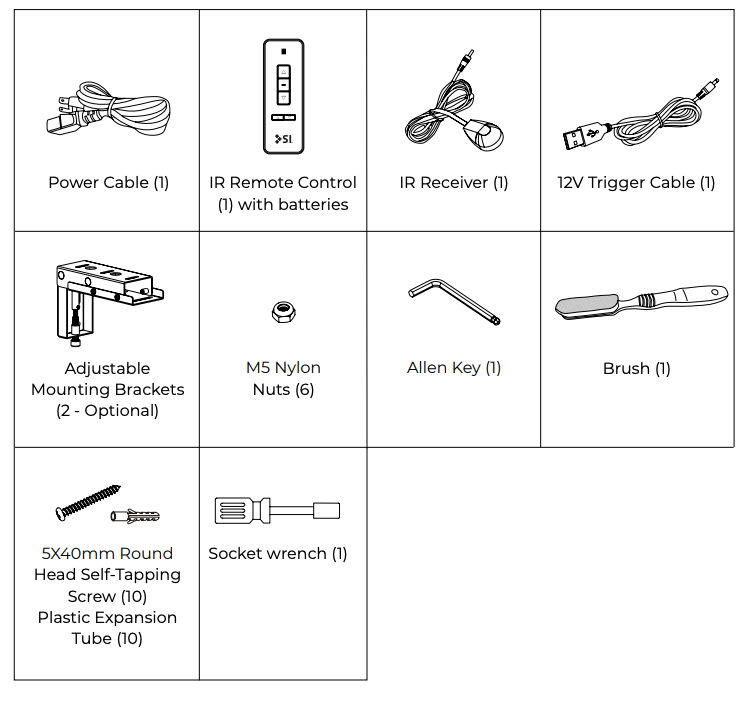

Parts in the Box

---

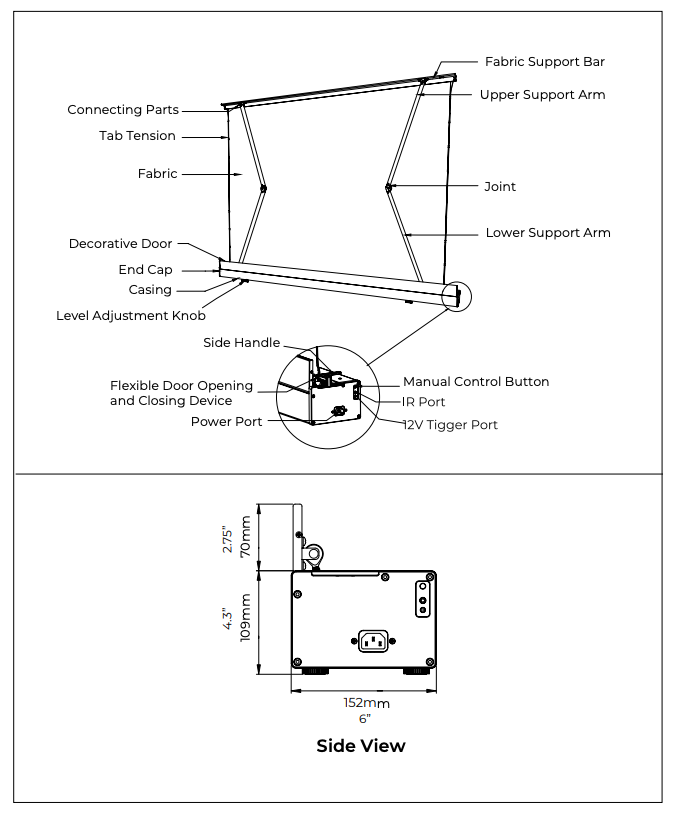

Structural Diagram

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
