Table of Contents:
Step 1: Terminating Wires
- Terminate pre-wire with the supplied terminal block.
Step 2: Mounting Brackets
✅ Important: Spacer Blocks - used to clear an obstruction in the fabric path.
- Connect spacer blocks to shade brackets before installation.
- Do not use more than 4 spacer blocks per bracket.
✅ Important: Leveling Shims - used if the window frame is out of level.
the fabric path.
- Connect to shade brackets before installation.
- Do not use more than 2 leveling shims per bracket.
- Make sure the wall bracket lever is down (may already be down).
- If using RS-485 motors
- Install terminal block bracket between jamb and wall bracket on the motor side using the supplied screws
Step 3: Installing the Shade
- Connect the shade and pre-wire connectors, then snap into the terminal block bracket.
- Hang shade onto wall brackets and center in opening.
- Use thumb to lock shade in place.

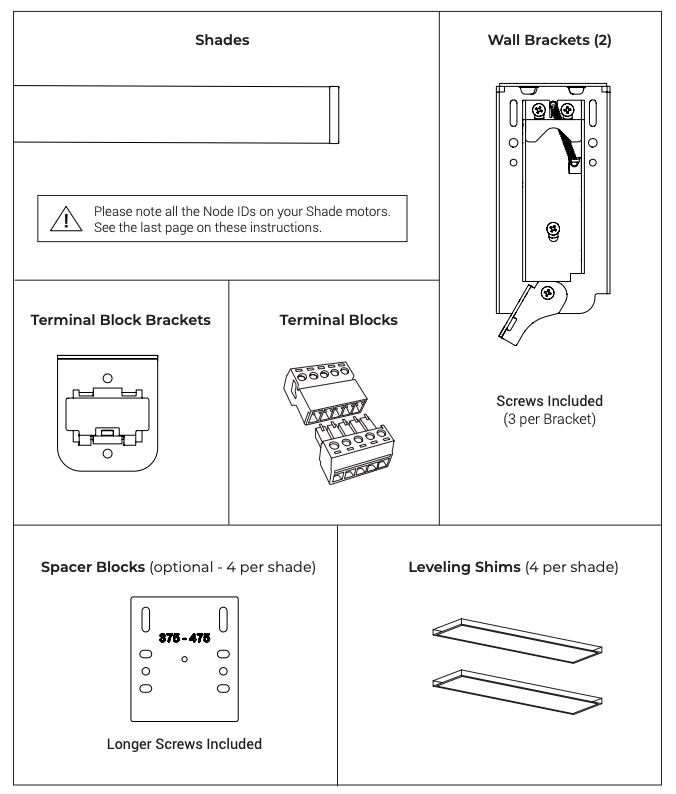

Parts in the Box
For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
