Nano: Wiring Pinouts

---

24v DC - 485: Using 5 Conductor Wire

---

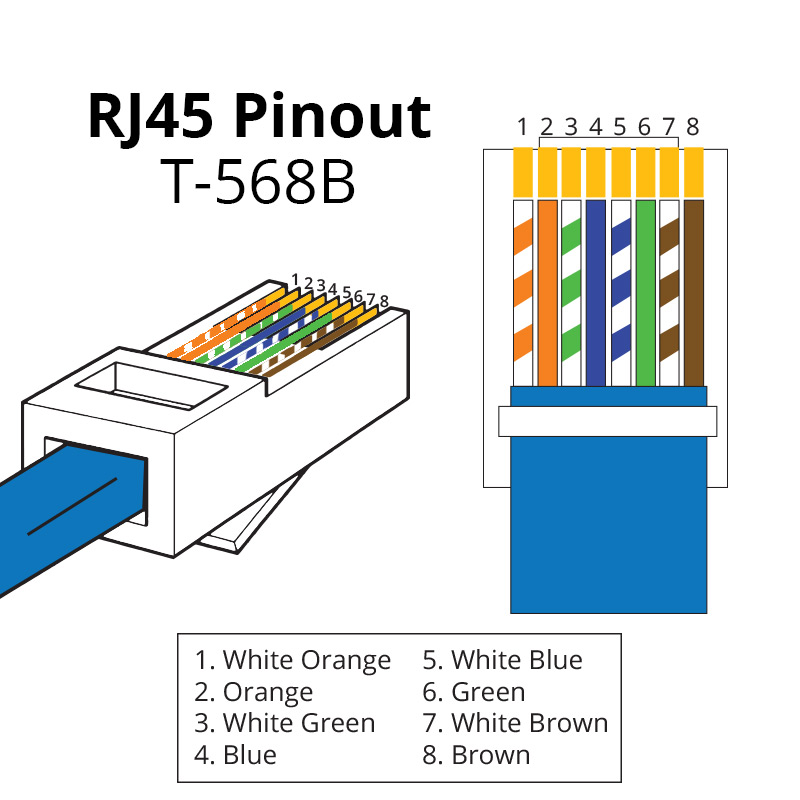

24v DC - 485 : Using 5 CAT5/6

• Wire between Janus terminal block face and the motor only.



---

24v DC - 485:  Using 4 - Conductor Wire

• If the pre-wire does not have a third insulated data conductor for the 485 ground, terminate the wire as shown below.
• Use the same termination on both ends.

---

WIRING - 24v DC - RTS

• For guaranteed motor performance the supplied voltage for 24v motors must be 24v DC.



• See the table below for maximum wire lengths.

• If the motors are powered using a Power Distribution Enclosure connect the motors to the “+24v DC” and “-24v DC” ports on the terminal blocks.
• The RS485 ports are unused.

---
