KAOS: Spec Sheet

Q: What is the maximum size for KAOS shades?

KAOS shades scale up to 24 feet wide (288 inches) and 16 feet tall (192 inches). The 575 cassette supports up to 18' x 14', while the 675 cassette supports up to 24' x 16'.

Q: What wind rating do KAOS shades have?

KAOS shades offer multiple fabric options with different wind ratings: VisionTex is rated at 110mph (internally tested), Omegatex is rated at 155mph for wind and flying objects (tested by Twitchell).

Q: What mount options are available for KAOS?

KAOS offers ceiling mount, wall mount, and pocket mount options. Track mounting includes Inside Mount (between posts), Outside Mount (on wall), and Recessed (pre-construction with U-channels).

Q: What control options work with KAOS shades?

KAOS shades work with RF Remote Control, Bond Bridge Pro, and the Screen Innovations Ecosystem for wireless integration and smart home control.

Features

Patented V-screen retention system for years of smooth operation, no jamming

Omegatex material doubles as a projection screen

Unique snap-in tube and hidden bracket installs in half the time

Square industrial design with matching custom powder coat colors

Ceiling, wall, or pocket mount options

Outside, inside, and inside with U-channel mounting

Scales up to 24' wide

120V AC power with smart home integration

Works with Bond Bridge Pro

Multiple fabric options for high winds up to 155mph

Cassette Sizes

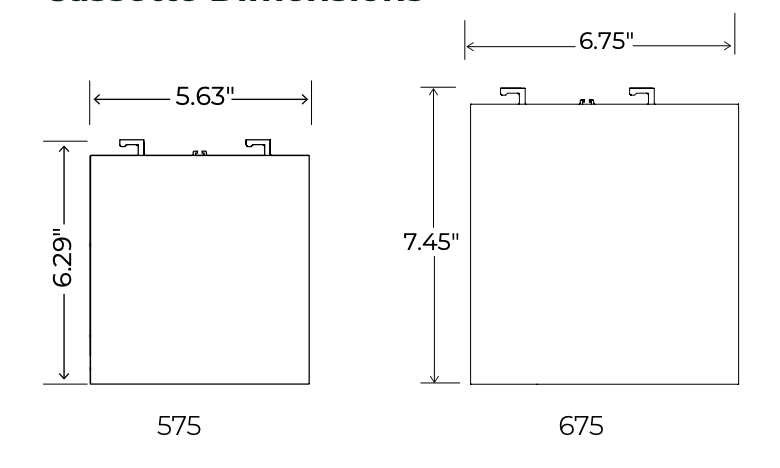

KAOS Cassette Size Dimensions - 575 and 675

575

Up to 18' × 14'

Depth: 5.63" Height: 6.29" w/ Brackets: 5.87" × 6.57"

675

Up to 24' × 16'

Depth: 6.75" Height: 7.45" w/ Brackets: 6.94" × 7.74"

Size Limits

Min Width 37.75"

Max Width 288" (24')

Max Height 192" (16')

Power

Voltage 120V AC

Max Current 2.6 amp

Motor Type RF Control

Environment

Rated For Outdoor

Track Width 3"

Track Depth 1.75"

Fabric Options

VisionTex 110 MPH

Available in 85%, 84%, and 99% openness factors. Internally tested wind rating. Perfect balance of visibility and protection.

Scan for Details

Omegatex 155 MPH

Hurricane-rated fabric tested by Twitchell. Rated for wind and flying objects. Can also be used as a projection screen.

Scan for Details

ExScreen Bug Proof

17 × 17 mesh prevents bugs from entering while maintaining airflow and visibility. Perfect for outdoor living spaces.

Powder Coat Colors

9 standard colors available:

Anthracite Beach Sand Carbon Corten Dune Glacier Granite Urban Bronze White Quartz

Form Factors

Box

575 or 675 cassette

Pocket

Up to 24' × 16'

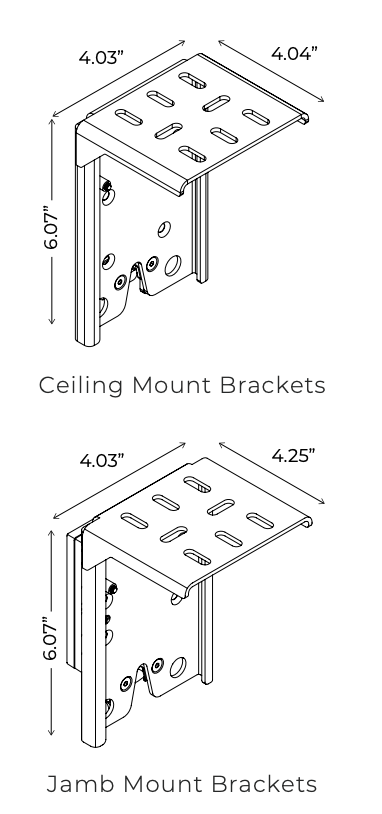

Cassette Mount Options

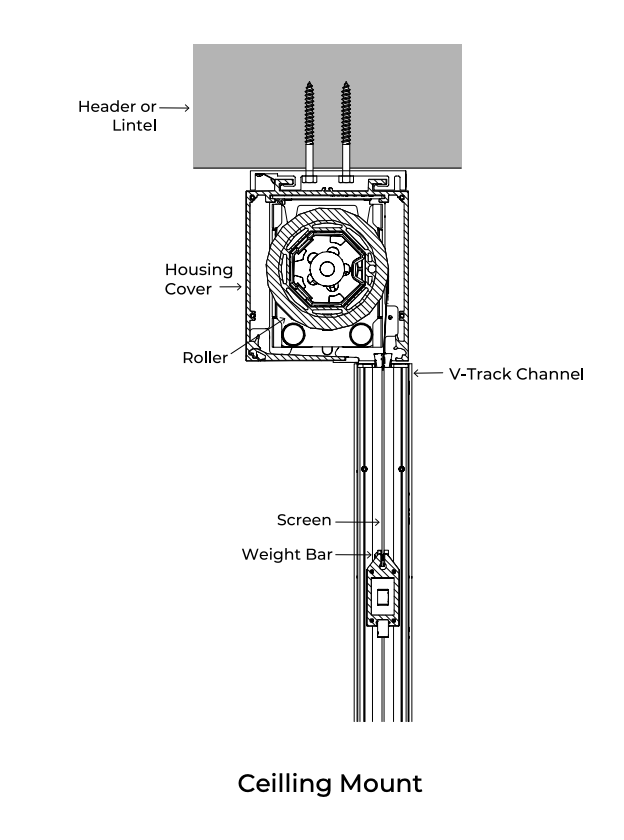

Ceiling

Overhead mounting

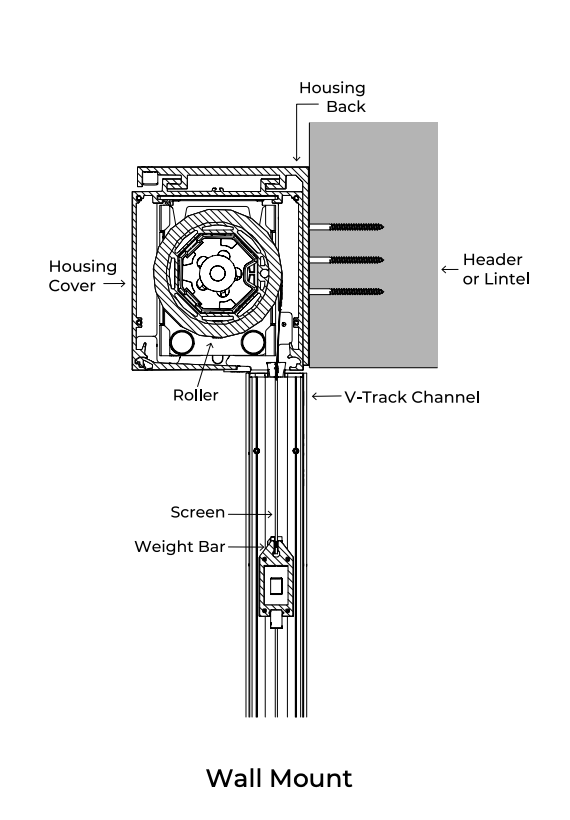

Wall

Vertical surface

Pocket

Recessed install

Track Mounting Options

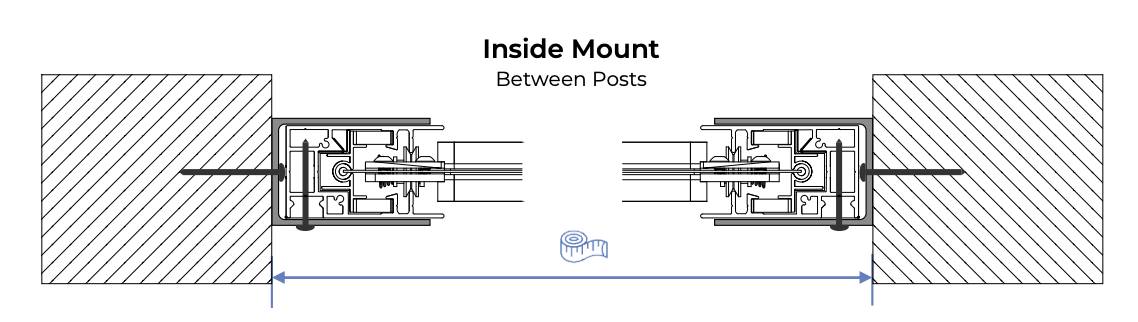

Inside

Between posts

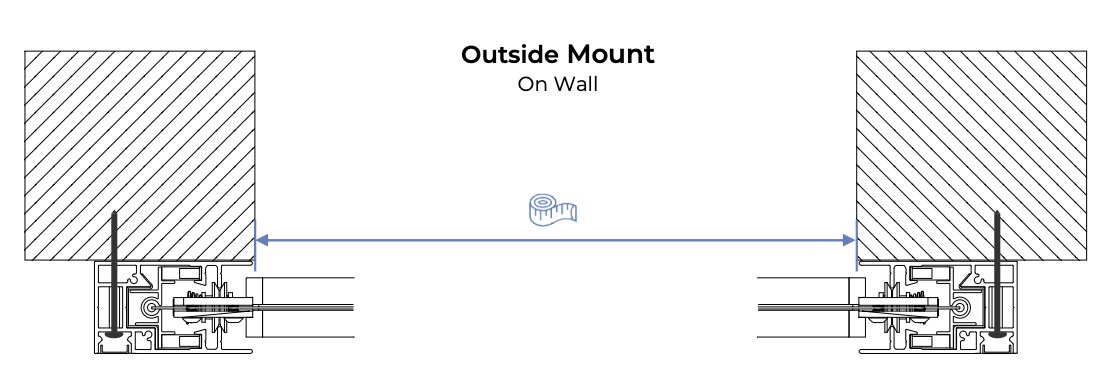

Outside

On wall

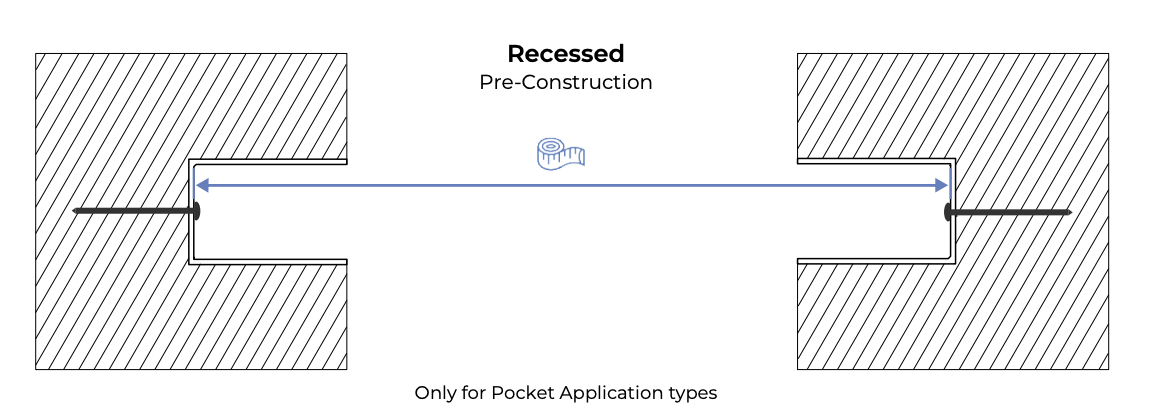

Recessed

Pre-construction

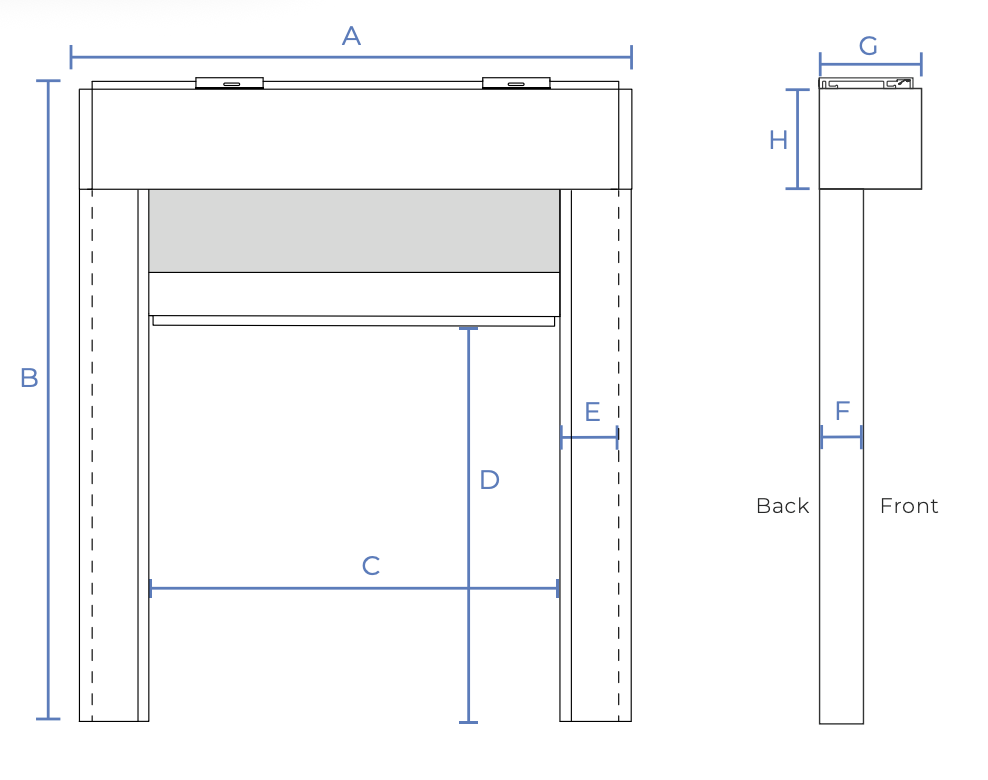

Box Shade Measurements

Ref	Measurement	Value
A	System Track Width (Max = 288")	From FLOW
B	Height (Max = 192")	From FLOW
C	Opening Width	A − (E × 2)
D	Opening Height	B − 10"
E	Track Width	3"
F	Track Depth	1.75"
G	Box Depth	575: 5.63" \| 675: 6.75"
H	Box Height	575: 6.29" \| 675: 7.45"

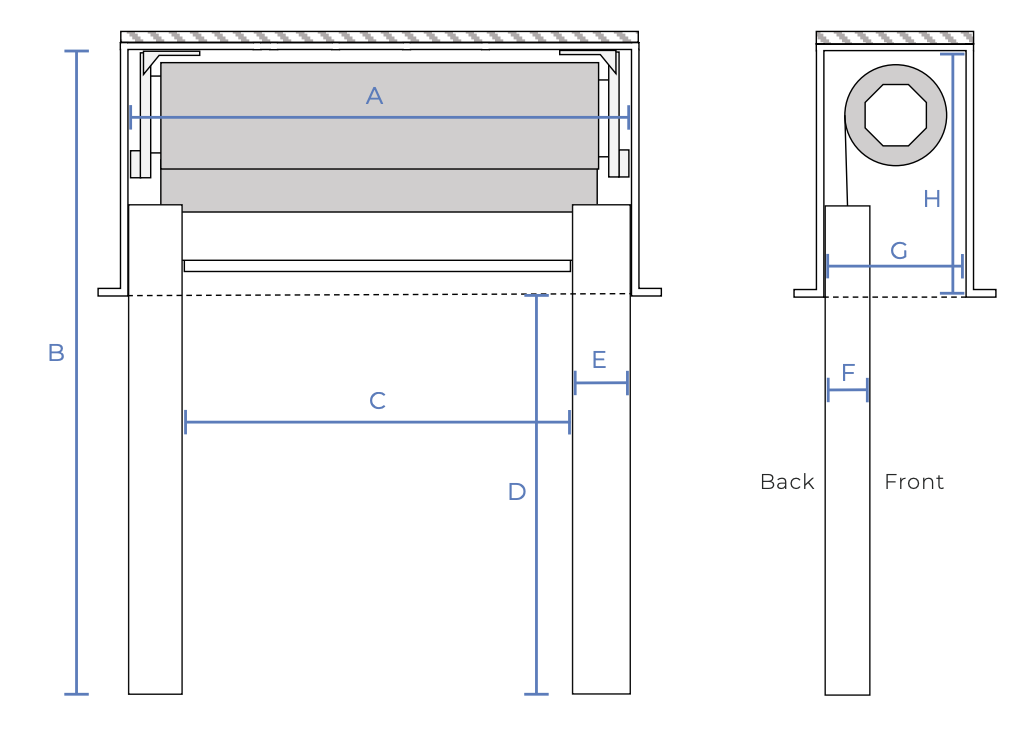

Pocket Shade Measurements

Ref	Measurement	Value
A	Width (Max = 288")	From FLOW
B	Height (Max = 192")	From FLOW
C	Opening Width	A − (E × 2)
D	Opening Height	B − H
E	Track Width	3"
F	Track Depth	1.75"
G	Pocket Width (Recommended)	7"
H	Pocket Height (Recommended)	12"

Weight Bar

U-Channel

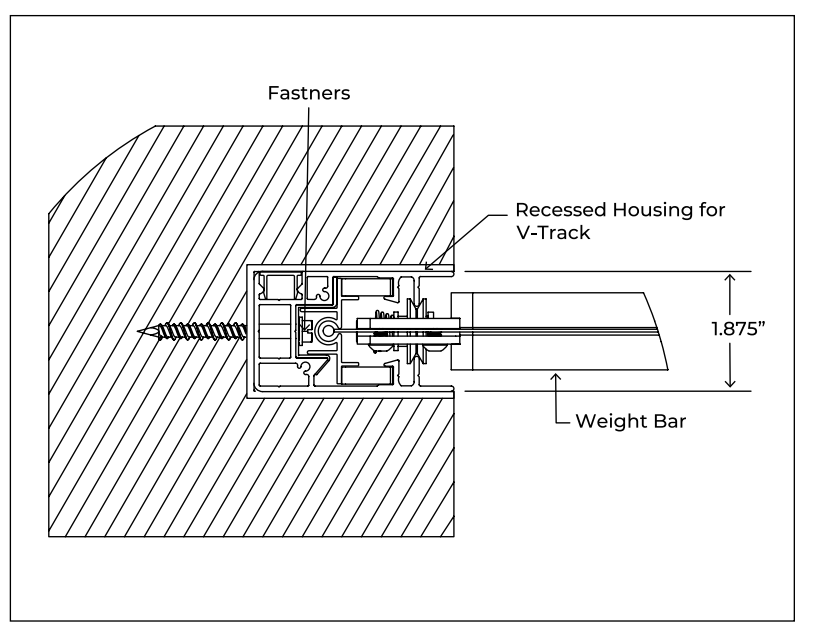

In-Wall Detail

Works With

RF Remote Control Bond Bridge Pro Screen Innovations Ecosystem SI KAOS Motor Somfy Motor (Optional)
