FlexGlass - Installation Instructions

---

X Series Fixed FlexGlass Installation – Quick Guide

Article Links:

• Projector Placement

• Frame Assembly

• Attaching Material

  • Installing Tensioners

  • Applying Initial Tension

• Wall Mounting

• Final Tensioning

---

Projector Placement

1. Mount your projector lens level with the top or bottom of the screen.

2. Do not angle the projector or use keystone correction—this can distort image quality.

---

Frame Assembly

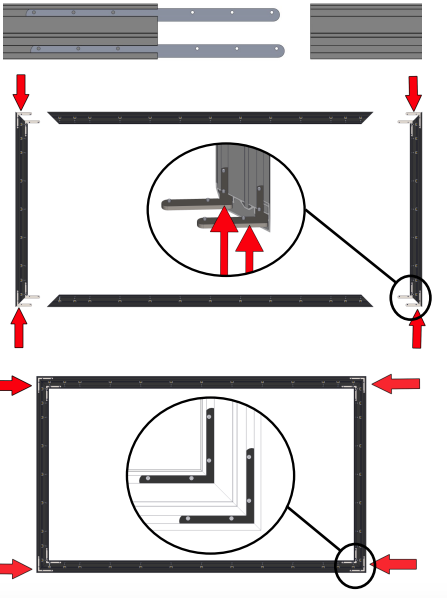

1. In a clean, open area, unpack and lay out all frame pieces velvet side down.

2. Insert corner brackets into the ends of the vertical (short) frame pieces.
   ⚠️ : Note: Larger screens use 2 brackets per corner

3. Slide vertical pieces into the horizontal frame pieces, square up the corners, and lightly tighten the set screws.

   • This ensures perfect 90° corners so the material fits properly.

   • Measure diagonals corner-to-corner.

   • They must be within 1/4” of each other.

---

Attaching the Screen Material

1. Carefully unroll the screen with protective foam in place to avoid scratches.

---

Installing Tensioners

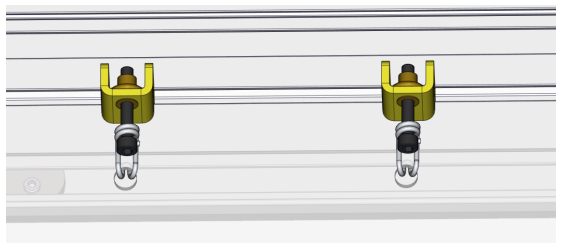

     2: Distribute tensioners along the frame:

• • One tensioner per hole in the screen material

  • Loosen the screw, hook the tensioner into the screen material hole

---

Applying Initial Tension

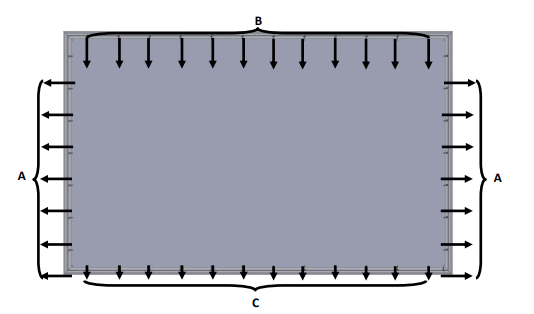

1. Apply tension in stages:

A: Right & Left sides: Tighten evenly until moderate tension is applied

B: Top: Tighten just until screws stick out about 1/2"

C: Bottom: Tighten until hooks just contact the screen holes

⚠️ Only apply light tension top/bottom. Final tensioning happens after the frame is mounted to the wall.

---

Wall Mounting & Final Tensioning

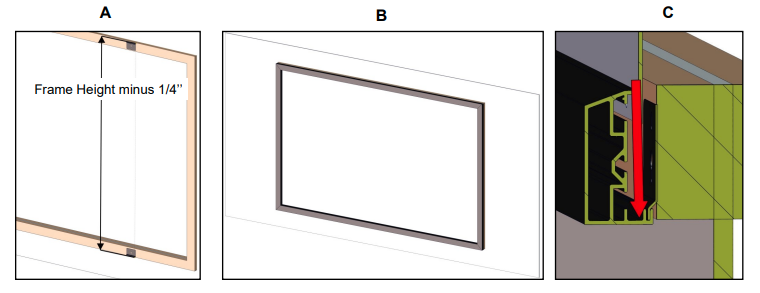

A. Install Wall Brackets

• Mount top and bottom brackets where the screen will be installed.

• Bottom brackets should be upside down and placed as close as possible to the frame height minus 1/4”.

B. Hang the Screen

• Lift the frame and hang it securely on the top brackets.

C. Lock into Bottom Brackets

• Push the bottom of the frame down and in to snap over the bottom brackets.

📏 Placement guide: Frame Height – 1/4”

---

Final Tensioning for Flatness

Tension the Screen for Optimal Flatness

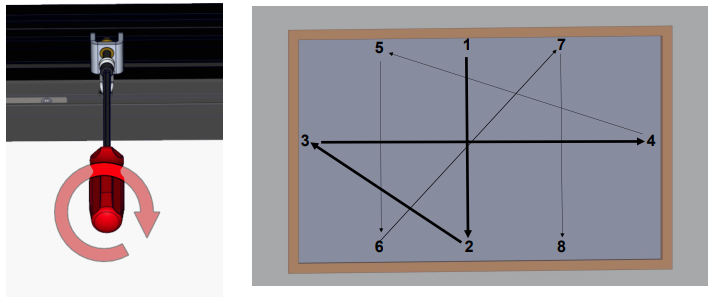

A. From the back of the screen, use the included ball hex driver to tighten the hooks.
B. Use a balanced tightening pattern to ensure the screen stays centered and evenly tensioned.

• Follow the same pattern again to apply additional tension for the flattest result.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
