Ysia Zigbee Remote (1 & 5 Channels)
Screen Innovations
Warning: The Ysia Remote will only work standalone with a Somfy Zigbee Motor, or integrated with the TaHoma Switch.
Warning: The Ysia Remote will not work with the TRO.Y / Helen Zigbee System

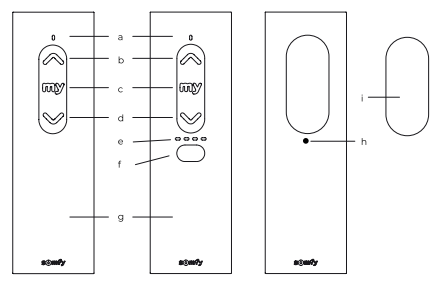

Component Overview
- a) Transmission indicator LED - Shows when remote is transmitting
- b) Up button - Short press raises/opens application; long press enables additional functionality
- c) Stop/My button - Single press stops movement; double press goes to favorite position
- d) Down button - Short press lowers/closes application; long press enables additional functionality
- e) Channel or group select LEDs - Shows active channel (Ysia 5 Zigbee only)
- f) Channel or group selector - Selects active channel (Ysia 5 Zigbee only)
- g) Battery cover - Access to battery compartment
- h) PROG Button - Programming and pairing button
- i) Wall Mount - Mounting bracket for wall installation
TaHoma PRO App Setup
- Download the TaHoma PRO application if not already installed on your smartphone
Warning: You will need an Account to use the TaHoma Pro APP, this must be approved by Somfy and can take up to 24 hours to be approved. Click here for TaHoma Pro Access
Info: Somfy motor can be set and used with this product without TaHoma Box (HUB Optional only).
Pairing the Ysia Remote directly to a shade
Pairing the Ysia Remote using the TaHoma Switch

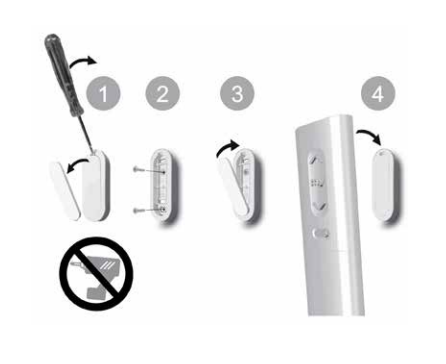

Wall Mounting
- Open the wall mount and fix it to a flat surface using a screwdriver and an M3-type screw

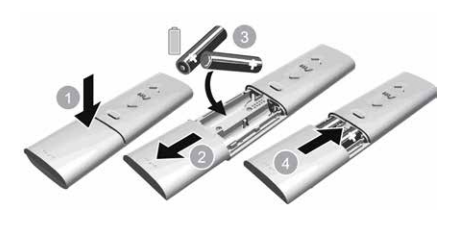

Replacing the Batteries
- Insert 2 x AAA batteries as indicated by the polarity (+ and - signs) markings in the battery compartment
- Ensure proper polarity - The power supply terminals must not be short-circuited
Support: For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
