Situo 1 & 5 RTS Remote

Screen Innovations

Situo 1 RTS II & Situo 5 RTS II Overview

▼

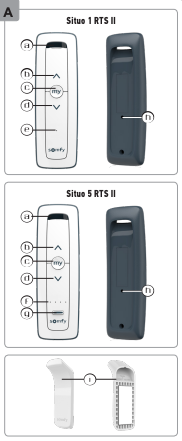

Refer to Figure A

• Wall Mount Recess
• ▲ Up / On / Open / Tilt / Increase Intensity Button
• ⏹️ STOP / my Button
• ▼ Down / Off / Close / Tilt / Decrease Intensity Button
• Button Activation Indicator Light
• Group Selection Indicator Lights
• Group Selector Switch
• PROG Button (on back)
• Wall Mount Bracket

🔢 Group Selection – Situo 5 RTS II

▼

Refer to Figure B

Select the group before operating:

1. Short press the Group Selector (7) to display the current group.
2. Press repeatedly to cycle through Groups 1–5.
   • Indicator Lights (6):
     • One light = Group 1–4
     • All lights on = Group 5 (simultaneous control of all)

🔧 Programming: Add or Remove a Remote

▼

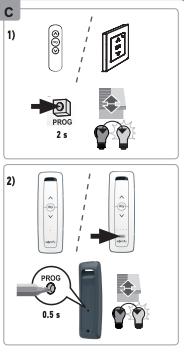

Refer to Figure C

Info: For first-time setup, follow the motor or receiver's manual to program the first remote.

Add or Remove a Situo RTS II Remote:

1. On an already paired remote:
   • **Press and hold** the PROG button (8) for ~2 seconds until the application jogs (brief up/down movement).
2. On the new remote you want to add or remove:
   • For Situo 5 RTS II, first **select the correct group** using the Group Selector (7).
   • **Briefly press** the PROG button.
   • The application jogs again to confirm the action.

⚠️ Installation Guidelines

▼

Refer to Figure D

• Mounting Height:
  • Maximum installation height: 2 meters

Radio Signal Tips

▼

• Building materials may reduce signal range.
  • Situo 1 RTS II: Ideal for single-room use
  • Situo 5 RTS II: Designed for whole-floor coverage
• Avoid installing near or on metal surfaces.

Support: For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
