⚠️ : This product is a Smart Plug designed for use in home automation systems operated under Zigbee 3.0 protocols. It enables the control of your lighting and other home devices via your smartphone. It can also act as a Zigbee router to expand your Zigbee mesh network. This Smart Plug is compatible with the Somfy TaHoma® Switch.
Pair to TaHoma Switch
- On the TaHoma application home page, select + and then choose Light and Plug .
- Follow the instructions in the mobile application to complete the configurations.
💡: Tips: When initially setting up this Smart Plug, it is recommended to reset it first and then perform the set-up task within 15 feet (4.5 meters) of the Zigbee Router.
Pair to SI Eco-system
- On your TROY, go to the Device Table and click "Open Zigbee Pairing." (Make sure you already have a Helen set up as a Zigbee Coordinator.)
- The button will open the Zigbee network and turn Yellow.
- The button will open the Zigbee network and turn Yellow.
- Press and hold the button on the right side of the Smart Plug for 5-10 seconds until the LED turns solid red.
- Then, release the button—the LED will start flashing orange and green, indicating pairing mode.
- The Smart Plug should now appear in the Device Table—just name it, and it will start strengthening your Zigbee Mesh Network.
- After pairing Zigbee devices:
- Click “Close Zigbee Pairing.”
- Click “Save Edits.”
- Go to the Integration Table and click “Commit Integration Table” to save to TROY.
- To view device routing, go to Wireless Bridge Settings and click "Generate Zigbee Route Graph."
Unpair / Reset to Factory Default
- Press and hold the button on the right side of the Smart Plug for 5-10 seconds.
- Hold the button until the LED becomes solid red.
- Release the button to enter pairing mode and the LED is flashing orange and green alternately.

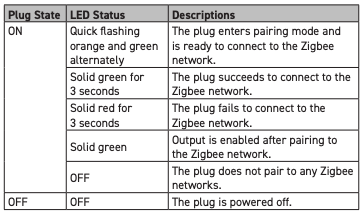

LED Status
Technical Specs
For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
