Smart Light Switch

Screen Innovations

Danger: Smart Light Switch is an AC device and the following instructions are intended for licensed electricians only.
Warning: The fixture controlled by the Zigbee In-Wall Smart Switch must not exceed 960W incandescent, 1800W (15A) resistive or 1/2HP motor. The switch is designed only for use with permanently installed fixtures.

About the Smart Light Switch

▼

Getting Started with Your New Zigbee Device

  1. Control It Your Way
    Turn the device on or off manually or remotely using your Zigbee controller.
  2. Customizable Scenes & Groups
    Add the device to multiple groups or scenes for flexible automation.
  3. Single or Multi-Switch Setup
    Works as a standalone (single-pole) switch or with up to four add-on switches for multi-way control.
  4. Bulb Compatibility
    Supports LED, CFL, and incandescent bulbs.
  5. Smart Detection
    Automatically identifies line and load wires for easier setup.
  6. Swappable Paddle Switch
    Comes with both white and light almond paddles — pick the one that matches your style.
  7. Fits Standard Wallplates
    Designed for decorative, single-gang wallplates (wallplate not included).
  8. Reversible Blue LED
    Use the LED as a night light or status indicator — your choice.
  9. Zigbee Certified
    Easy to pair and fully compatible with Zigbee smart home systems.
  10. Wiring Requirements
    Installs with screw terminals. Needs connections for line (hot), load, neutral, and ground.
    Note: A traveler wire is required for 3-way or 4-way installations.
Danger: Turn OFF the power to the branch circuit for the outlet at the service panel. All wiring connections must be made with the POWER OFF to avoid personal injury and/or damage to the outlet.
Power safety warning illustration showing circuit breaker

Installation Instructions

▼
  1. Shut off power to the circuit at circuit breaker or fuse box.
    Warning: IMPORTANT! Verify power is OFF to switch box before continuing.

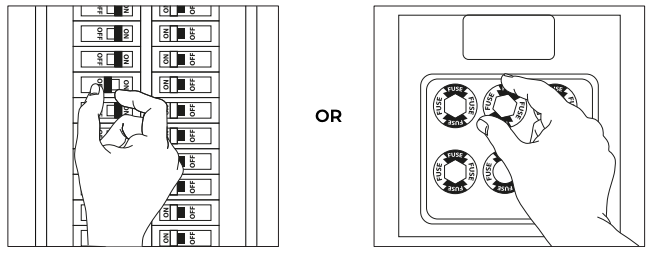

    Step 1: Circuit breaker in OFF position
  2. Remove the wall plate.
    Step 2: Removing wall plate with screwdriver
  3. Remove the outlet mounting screws.
    Step 3: Removing outlet mounting screws
  4. Disconnect the wires from the existing outlet.
    • Label wires according to the previous terminal connections. Step 4: Labeling existing wire connections
  5. There are three screw terminals on the Zigbee Smart Light Switch; these are marked:
    • LINE (hot) — Black (connected to power)
    • NEUTRAL — White
    • GROUND — Green/bare
      Match these screw terminals to the wires connected to the existing outlet.

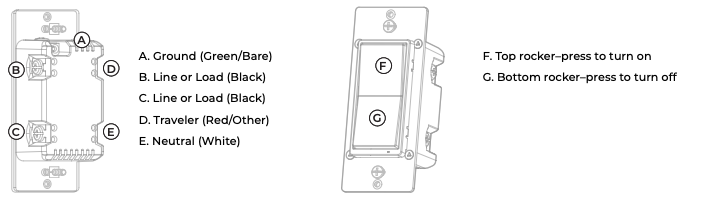

Smart Light Switch terminal diagram showing LINE, NEUTRAL, and GROUND connections

Wiring Information

▼

Wiring Guidelines

  • Wire Strip Length: Always strip wires to the recommended length of 5/8 in. (16 mm) before making connections.
  • Screw Terminal Torque: Tighten terminal screws to 14 kgf-cm (12 lbf-in) as specified by UL.
  • Wire Type: This device is designed for copper wire only.
    ⚠️ If you have aluminum wiring, consult a qualified electrician.
  • Wire Gauge: Use 14 AWG or larger wires rated for at least 80°C for line (hot), neutral, ground, and traveler connections.
  • Need Help? If you're unsure or have questions, contact a licensed electrician for assistance or professional installation.

Wire Strip Length

  • Strip insulation to 5/8 inch (16 mm) for all wiring connections.
  • Torque specification: Tighten terminal screws to 14 kgf-cm (12 lbf-in) as specified by UL.

Basic Operation

You can control the connected device in two ways:

  1. Manually using the front panel rocker switch
  2. Remotely using a Zigbee controller

Manual Control (Rocker Switch)

  • Turn ON: Press the top of the rocker switch
  • Turn OFF: Press the bottom of the rocker switch

LED Indicator Light

The LED below the switch functions as a guide light or status indicator.
To cycle through LED modes: Press UP 3 times, then DOWN once quickly.

LED Modes:

  1. Default: LED ON when the load is OFF (acts as a night light)
  2. LED ON when the load is ON (shows switch is active)
  3. LED always OFF

Wiring Instructions

Warning: This switch is for copper wire only. If you have aluminum wiring, consult a licensed electrician.
  1. Ground: Connect the green or bare copper wire to the GROUND terminal.
  2. Load/Line: Connect the black wire from the light to either LINE/LOAD terminal.
  3. Connect the black wire from the electrical panel (hot) to the other LINE/LOAD terminal.
  4. Neutral: Connect the white wire to the NEUTRAL terminal (use a jumper wire if necessary).
  5. Traveler Terminal: Only used for 3-way or 4-way installations. Leave unconnected in a 2-way setup (one switch & one load).
  6. Carefully insert the switch into the electrical box — avoid pinching or crushing wires.
  7. Mount the switch vertically, using the provided screws.
  8. Attach a decorative wallplate (not included).
  9. Restore power at the fuse box or circuit breaker and test the switch.

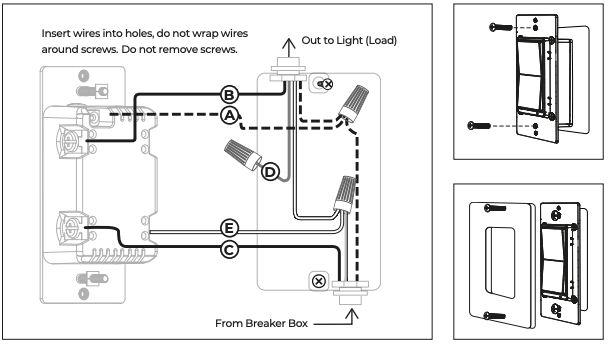

Complete wiring diagram showing all terminal connections

Changing Paddle Color

▼
Tip: Before installation, you may want to change the color of the paddle to match your wallplate or décor.
  1. Push side tabs in on one side and then the other to release paddle. Lift the cover up and off.
  2. Simply put the new paddle onto the switch by inserting the side tabs and snapping securely into place.
Paddle color change process showing tab release mechanism

Adding your devices to your Zigbee Network

▼
Info: If adding to an SI Eco-system, Click Here
Warning: The icon for the Smart Light Switch is a lightbulb. Do not Delete it.

Before You Start:
Place all Smart Light Switches on a table or in the same room as your LinkPro Z or TaHoma Gateway, keeping them at least 7 meters (23 ft) away from the gateway.

Step-by-Step Instructions:

  1. Power On One Switch at a Time
    Have a licensed electrician temporarily power each Smart Light Switch, one at a time.
  2. Open the TaHoma App
    Go to the Products menu and select Add Zigbee Device.
  3. Scan the QR Code
    Use your phone to scan the QR code found on the bottom of the switch or on the box.
  4. Name the Switch
    Choose a name in the app.
    Tip: This name will be used for voice control and in the app interface.
  5. Power Off and Install
    Once paired, the electrician can disconnect power and install the switch in its final location.
  6. Repeat
    Repeat steps 1–5 for each additional Smart Light Switch until all are paired.

Remove and reset the device from the Zigbee Network

▼
  1. From your TaHoma app, choose to remove or delete the Smart Light Switch as instructed.
  2. The Smart Light Switch will be removed from the Zigbee network following indication from the app.
  3. All configuration parameters will be reset after the Smart Light Switch is removed from the network.

Factory Reset

▼
  1. Press the ON button quickly 10 times.
Factory reset process showing ON button press sequence
Warning: This should only be used in the event your network's primary controller is missing or otherwise inoperable.
