Sidekick is a 5-channel wireless keypad designed to directly control multiple types of motorized shades. For ease of use, it operates similarly to the remote controls provided by motor manufacturers.

By default, Sidekick is configured to work with Somfy RTS motors and functions like a Somfy DecoFlex or Telis 5 remote.

Basic Operation:

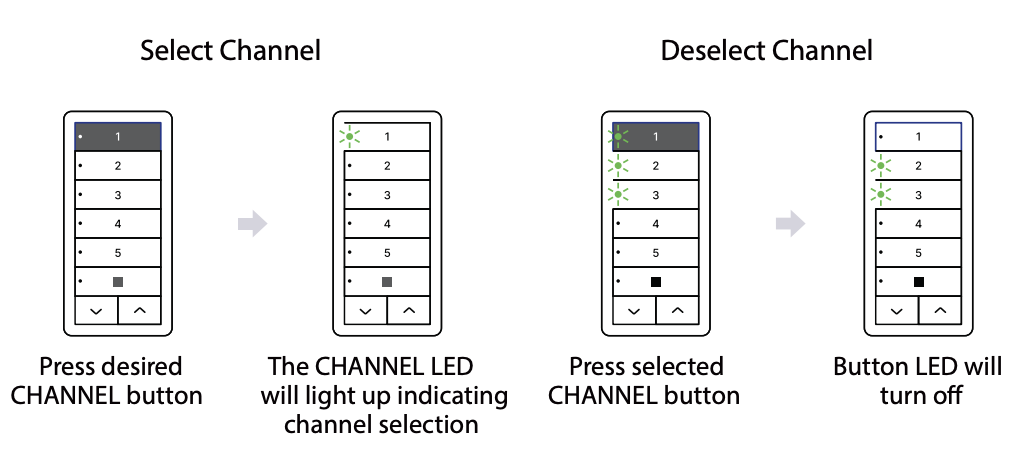

1. Channel Selection
   • You may operate one or more channels at the same time. To deselect a channel, rst select another one. Its not possible to have no channel selected.

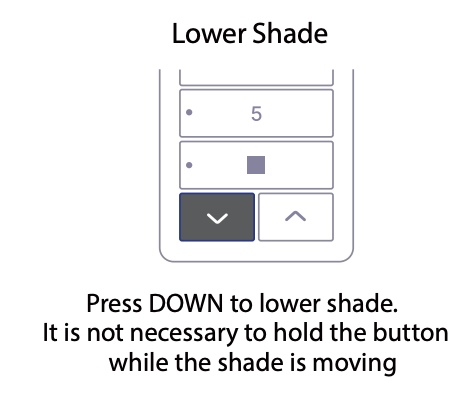

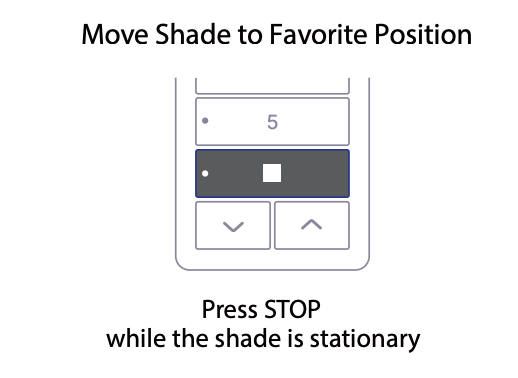

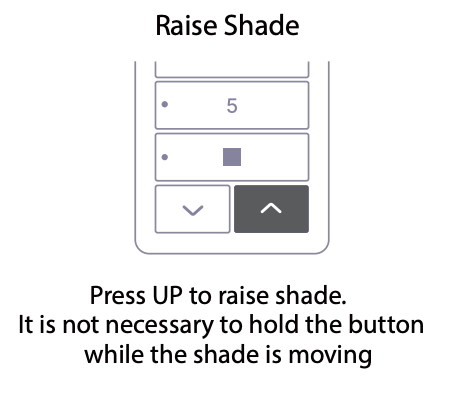

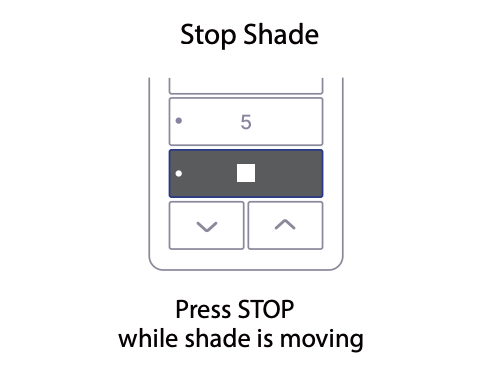

2.  Raise, Lower, Stop Shade, and Favorite Position

---

---

Linking with Bond Bridge Pro

💡:  When paired with Bond Bridge Pro, Sidekick can update the state of your shades in the Bond Home app. To turn on this feature, link each Sidekick channel with the corresponding shade or shades on the Bond Home app.

Linking Your Sidekick with the SI App

Before linking, make sure the following requirements are met:

1. Your Bond Bridge Pro is running firmware version 3.1 or higher.

2. Your SI app is updated to version 2.40.0 or higher.

3. You can control your shade from the SI app.

4. You can control the same shade using the Sidekick*.

*This ensures the Sidekick and the app are operating on the same channel or address.

⚠️ : If you cannot control the shade with Sidekick due to range or technology limitations, you may use Relay Mode to have J4M35 or Bond Bridge Pro transmit instead.

---

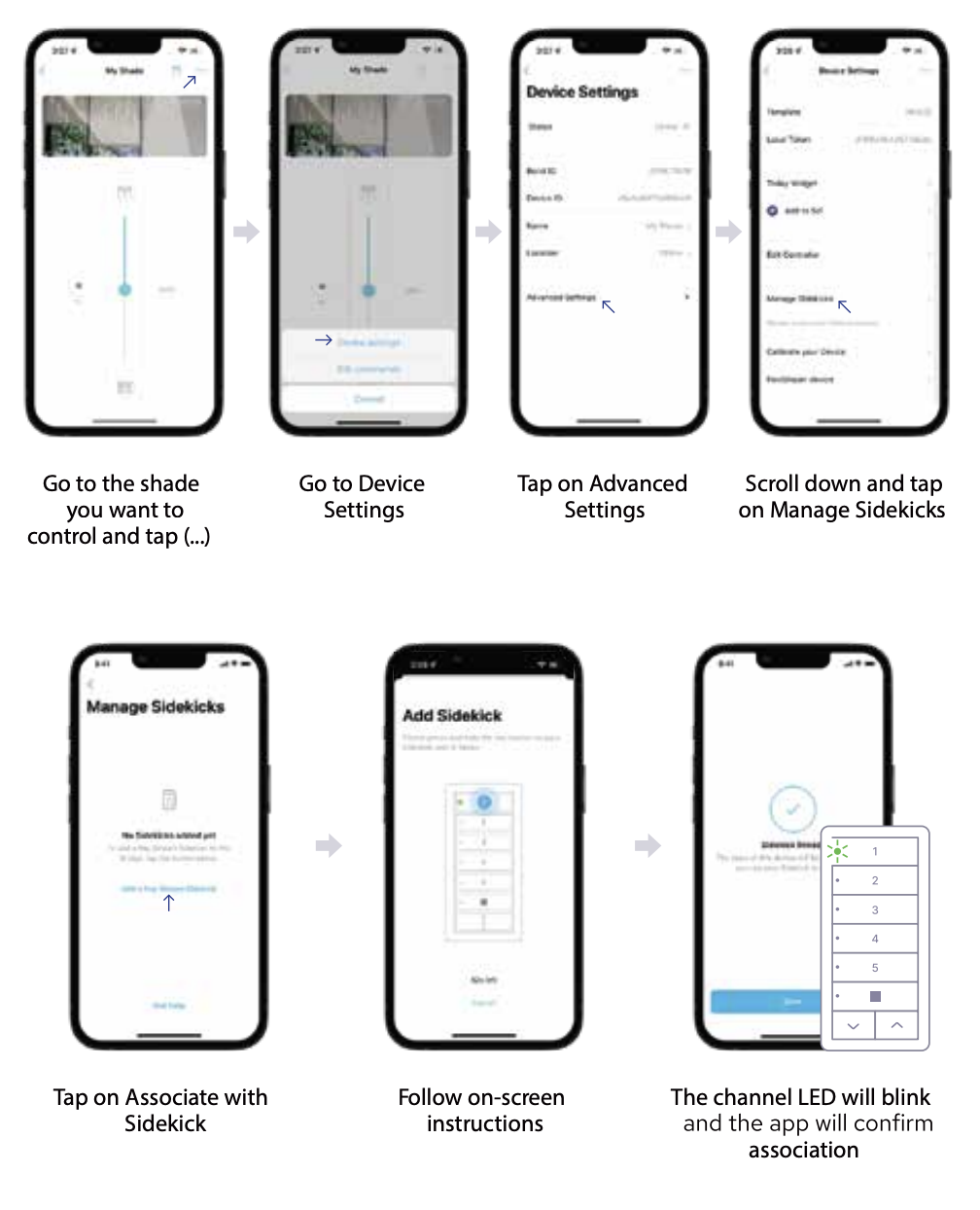

Linking with Bond Bridge Pro on iOS

---

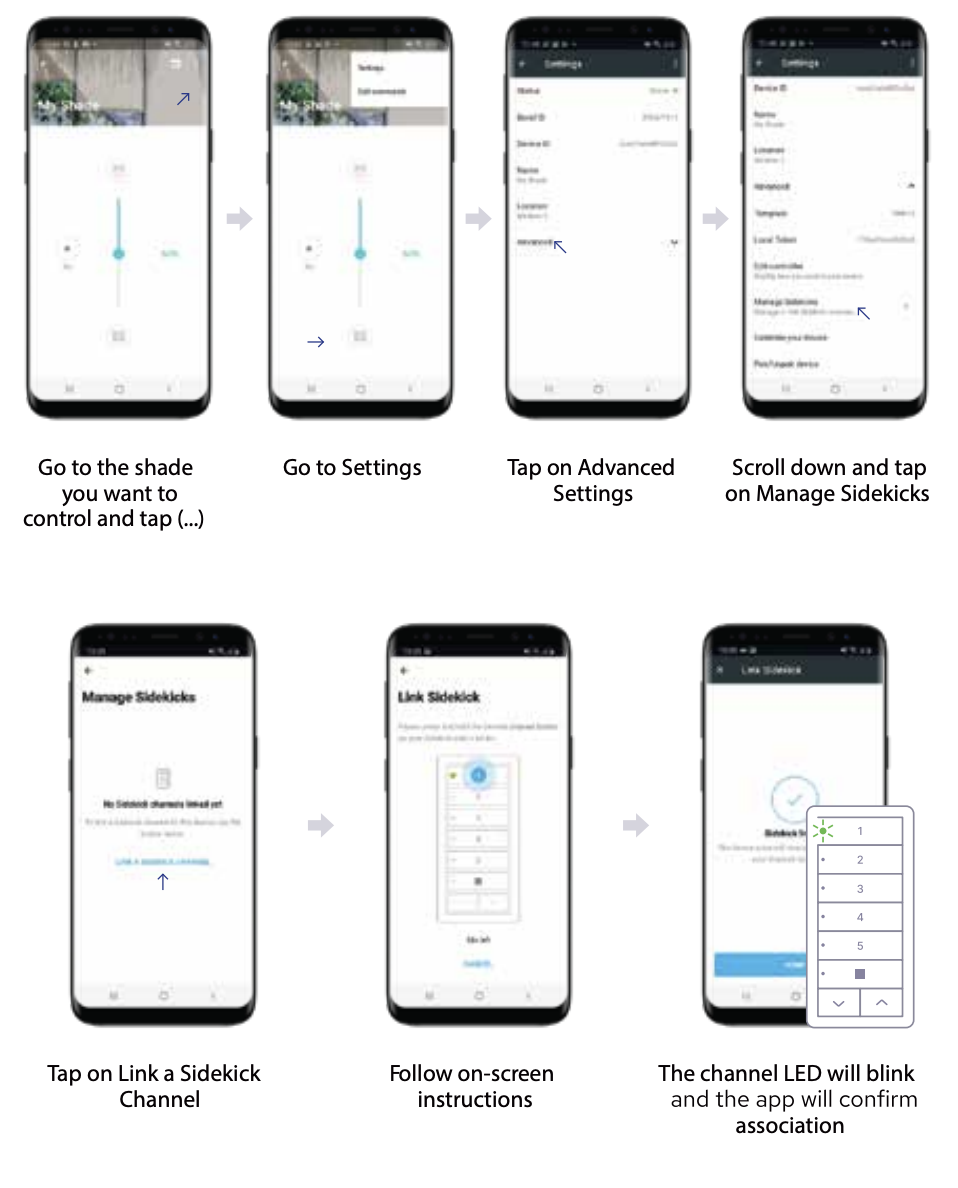

Linking with Bond Bridge Pro on Android

---

Relay Mode

In Relay Mode, the Sidekick doesn’t send signals directly. Instead, it uses the Bond Bridge Pro to control the shades.

This is helpful when controlling an All Shades channel, especially if some shades are out of the Sidekick’s range—since the Bond Bridge Pro is usually placed where it has better signal coverage.

To enable relay mode on all channels:

To enable relay mode only on currently selected channels:

To exit Relay Mode for any channel, simply set the channel back to the desired direct technology.

⚠️ : If you cannot control the shade with Sidekick due to range or technology limitations, you may use Relay Mode to have Bond Bridge Pro transmit instead.

---

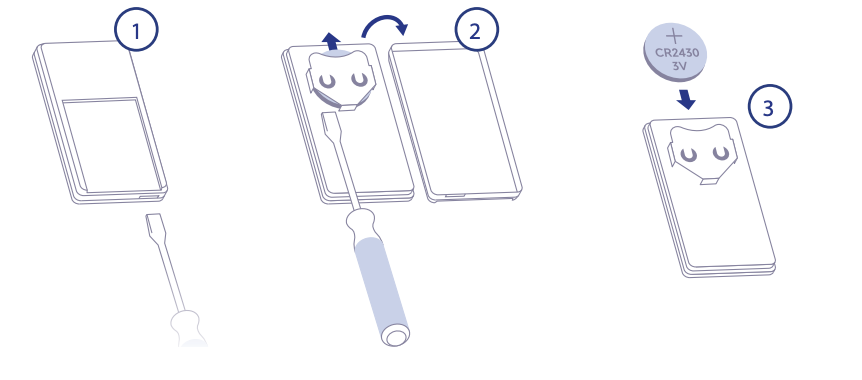

Battery Replacement

1. Open the Sidekick
   Use a screwdriver to gently separate the front and back covers.

2. Remove the Battery
   With the back cover off, carefully use the screwdriver to lift out the battery. Be cautious not to damage the circuit board.

3. Insert the New Battery
   Place the new battery with the label facing up.
   Make sure the battery is new and hasn’t been stored for more than a year, as extended storage can reduce its lifespan.

---

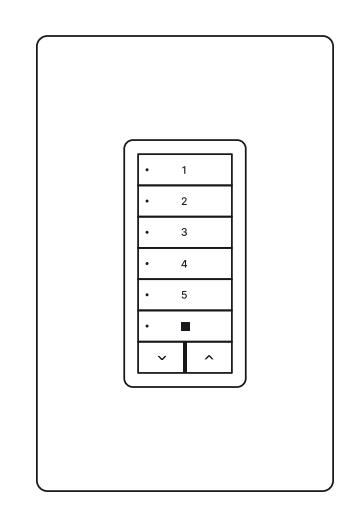

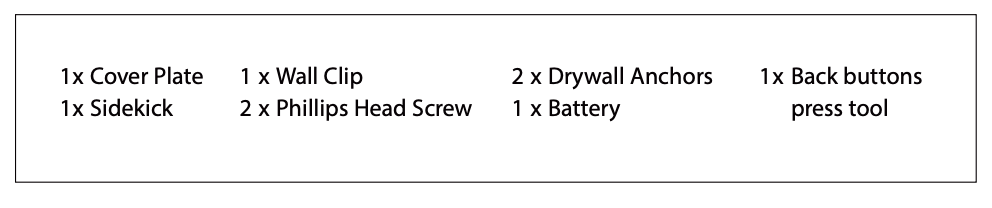

Parts in the Box

---

Additional Features and Videos

Changing Technologies

Sidekick works with multiple motor types. Follow the steps below to expand its capabilities.

Note:

• To cancel at any time, press the UP button.

• If you enter a wrong code, press the wrong button, or wait more than 10 seconds, the Sidekick will exit setup and return to normal without making changes.

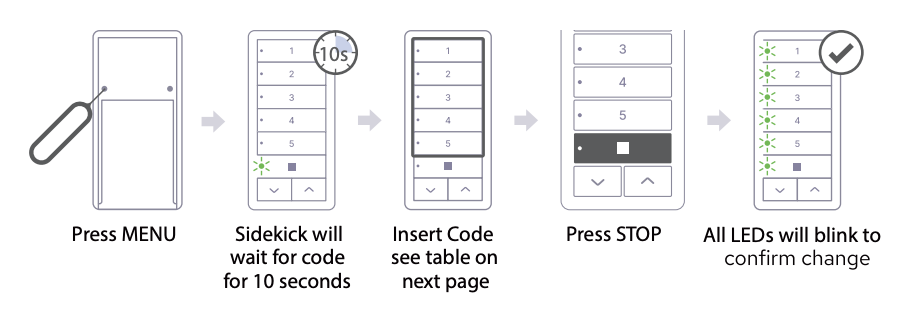

Changing technology for all channels

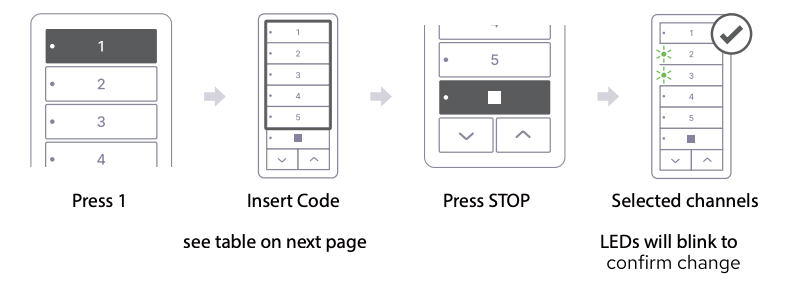

Changing technology only for specific channels

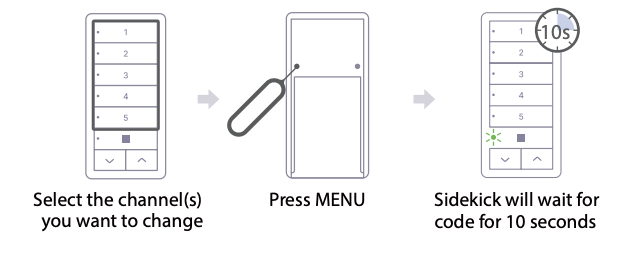

1. Channel(s) Selection
2.  Setting Technology

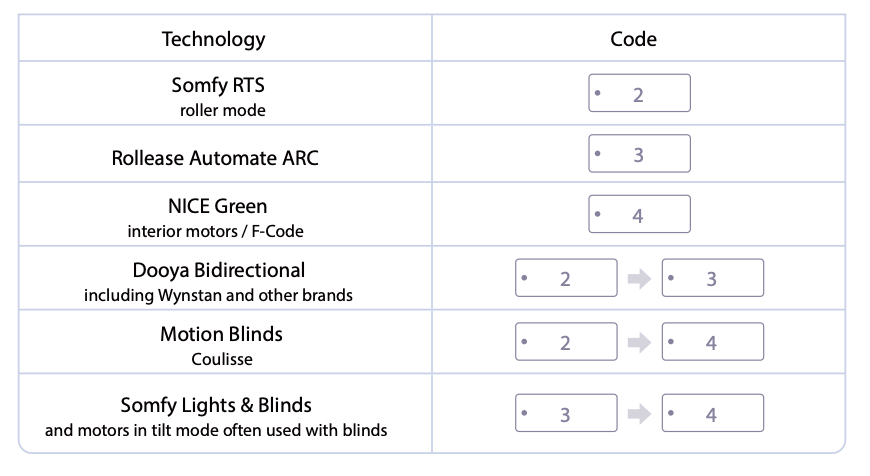

Motor Technology Codes Table

---

Advanced Features (Limit Adjust, Motor Direction and Favorite Position)

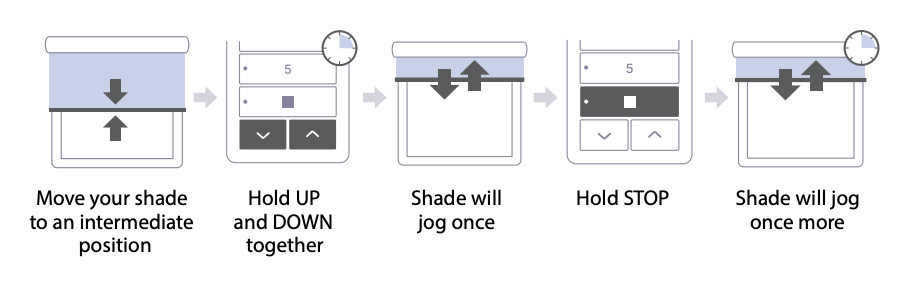

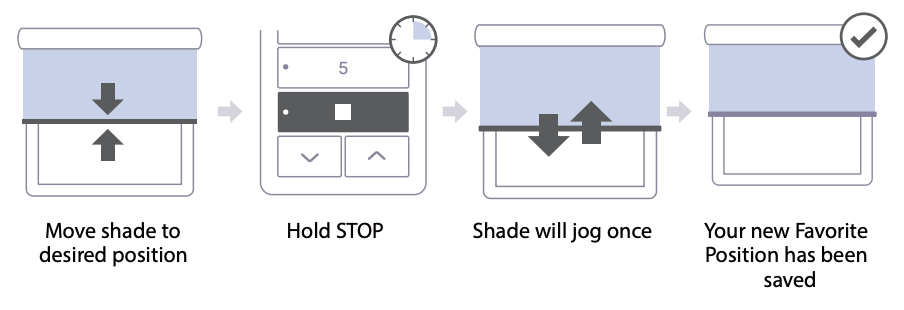

Save Favorite Position:

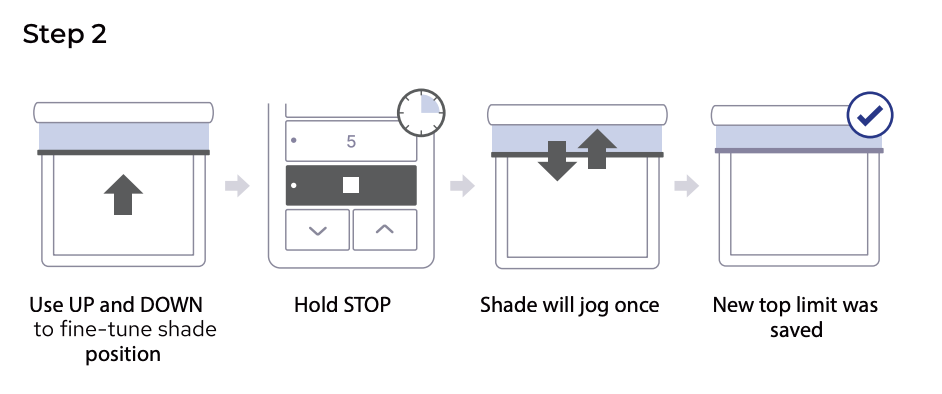

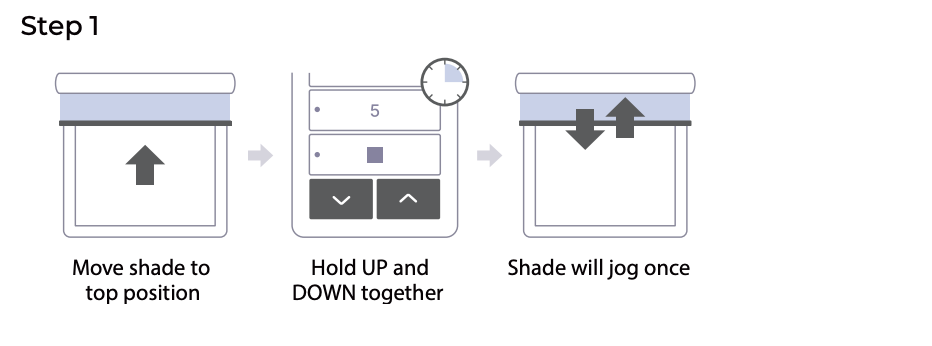

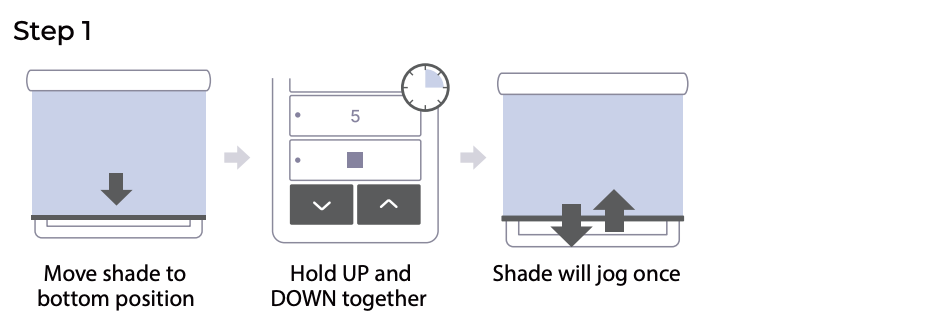

Adjust Top Limit:

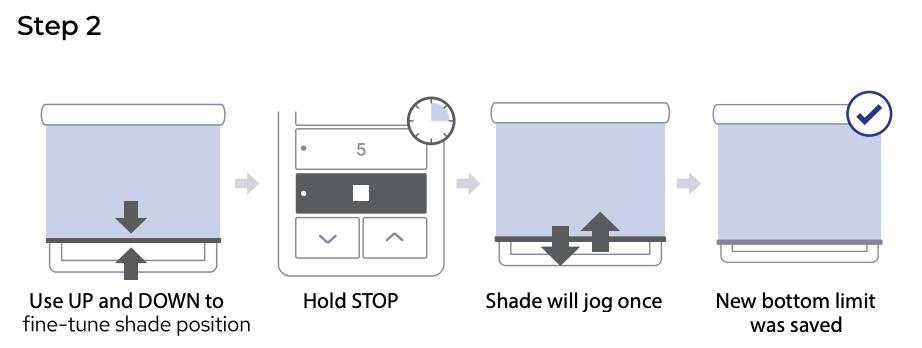

Adjust Bottom Limit:

Reverse Motor Direction:

---

Pairing Additional Remotes

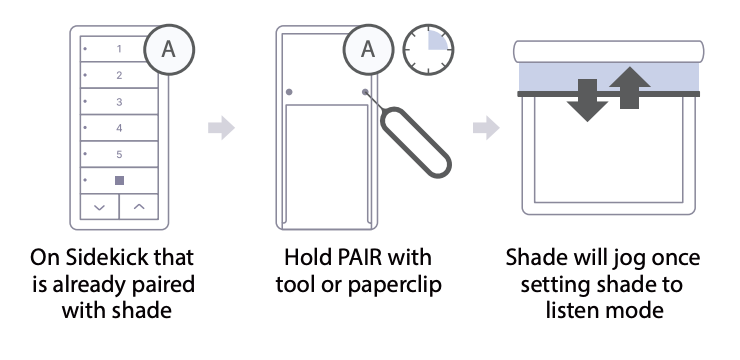

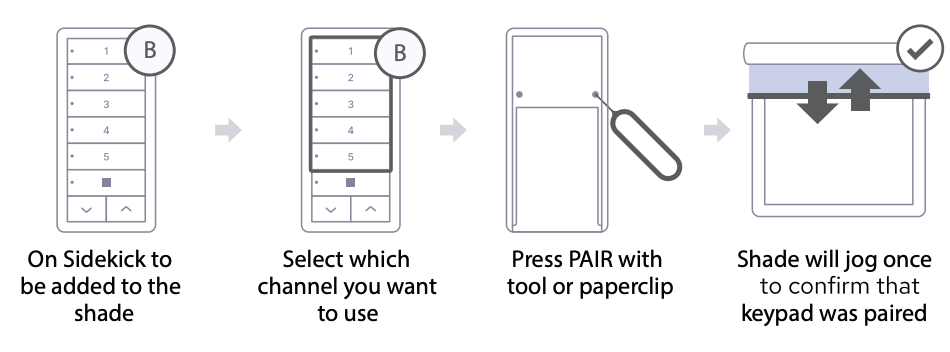

💡: You can pair additional Sidekicks with your shade. You will need to use the existing keypad (A) to introduce the new keypad (B) as shown below.

💡:You can also introduce a new Sidekick (B) using a Somfy Telis or Situo remote instead of Sidekick (A). Just follow the instructions above using the button in the back of your Somfy Telis or Situo remote controller as Sidekicks PAIR button.

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
