SPIKE - Screen Innovations

SPIKE

Screen Innovations

SPIKE Installation Overview

▼
SPIKE installation overview showing connection options SPIKE wiring diagram with connector types

Connection Instructions

▼

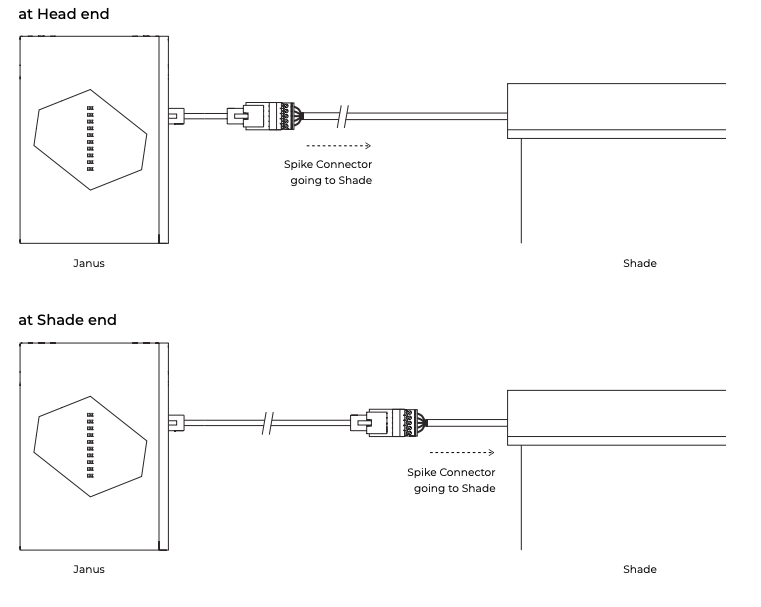

Depending on your preferred placement—at the Head End or Shade End—follow these steps:

  1. Connect the RJ45 connector to the UTP cable (Janus side).
  2. Attach the Terminal Block to the multi-connector cable (Shade side).
Step-by-step connection showing RJ45 and Terminal Block placement

Wiring Diagrams

▼

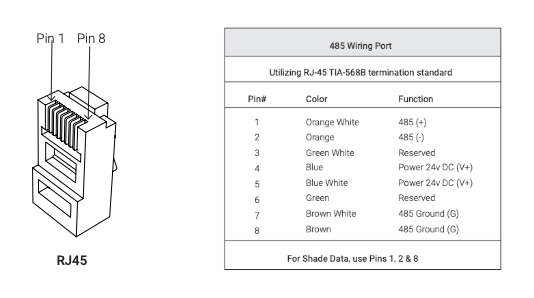

SPIKE wiring configuration diagram showing connection layout Detailed SPIKE terminal block wiring schematic

Technical Support

▼

For issues, contact Screen Innovations:
Phone: 512.832.6939 Option 3
Website: www.screeninnovations.com
