Nano Open Roll: Manual Shade - Spring Tension and Limits

---

---

Step 1: Verify Spring Tension

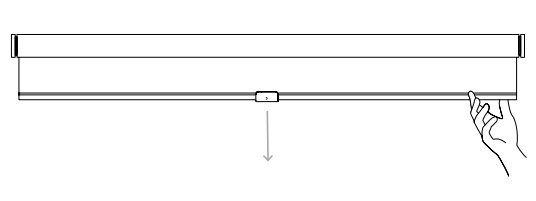

• Pull the shade down approximately halfway.

• Pull the shade down a small amount (~1/2”) and release.
• The shade will run to the upper limit.

---

Step 2: Adjusting Spring Tension

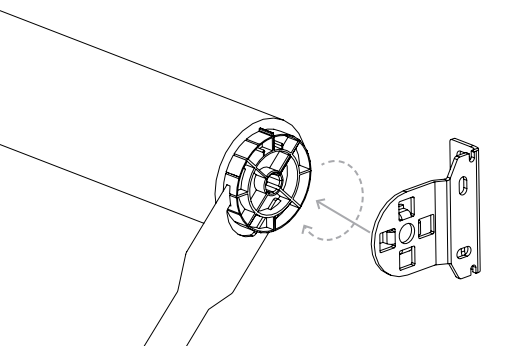

• If the shade moves too slowly, remove from bracket and add one pre-tension turn at a time until the desired speed is achieved.

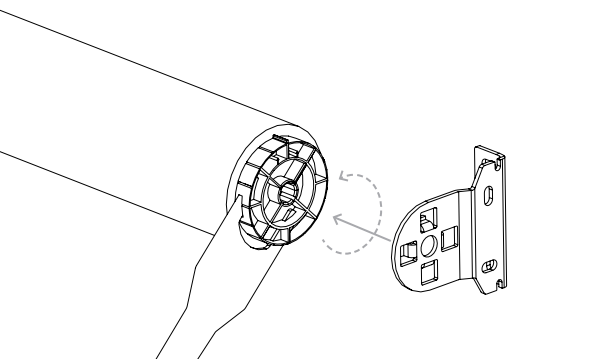

• If the shade moves too quickly, remove from bracket and reduce one pre-tension turn at a time until the desired speed is achieved.

---

Step 3: Adjusting the Upper Limit

• Adjust the shade limiter using the included spanner wrench as shown below.

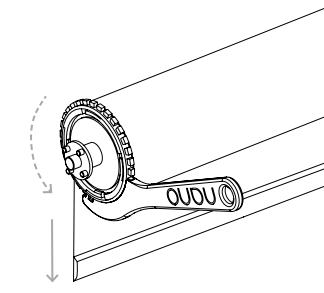

• Turn the shade limiter counter-clockwise to lower the upper limit.

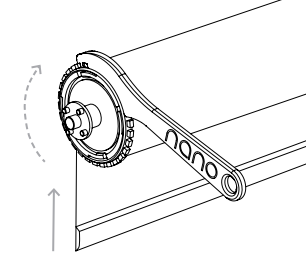

• Turn the shade limiter clockwise to raise the upper limit.

---

Step 4: Re-installing End Caps

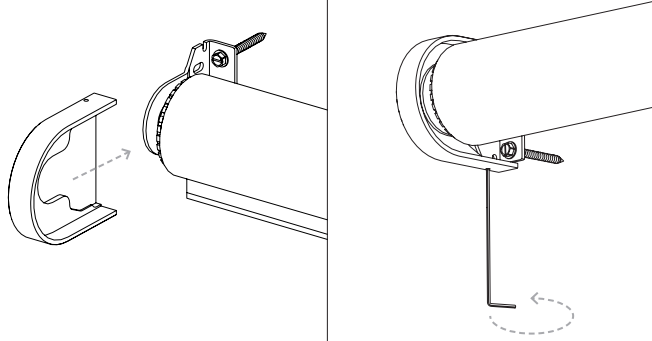

• Install the end caps and lock them in place with the set screw.

---
