Nano Box: 275/375/475 - Installation Guide

Terminating wires

Mounting the brackets

Power Connections

Hanging the Shade

Accessing the Motor head buttons

RTS/Zigbee: Delivery Mode

Parts in the Box

---

Step 1: Terminate the Wires (If Necessary)

• Terminate pre-wire with the supplied terminal block.

---

Step 2: Spacer Blocks (Optional)

Spacer Blocks – Used to clear an obstruction in the fabric path.

• Before installing, connect spacer blocks to shade brackets.
• Do not use more than four (4) spacer blocks per bracket.

---

Step 3: Bracket Spacing

• The recommended position for the box bracket is 2–4” from the end caps.
• Installing the wall brackets as close to the end of the cassette as possible ensures better stability of the shades system.

• For Narrow shades, install the wall bracket 1/2 – 9/16” from the end of the shade using the supplied screw.

---

Step 4: Bracket lock/unlock lever

• To install the shade, start with the wall bracket lever pointed down in the unlocked position.

---

Step 5: Power Options

• Power Setup:
  • Determine the power type of the shade.
  • Locate the power type in the following pages and setup accordingly.

• For 24v DC – Zigbee/RTS/485 Power:
  • On the motor side, install the terminal block bracket between the jamb and wall bracket using the screws supplied.

• Connect the shade and pre-wire connectors on the motor side; secure into the terminal block bracket.

• For 110v AC – RTS Power:
  • Insert power cable into the pre-wire hole.

• For 110v AC – 485 Power:
  • Insert power cable into the pre-wire hole.

• Connect the shade data cable to the pre-wire, then snap into the terminal block bracket.

• Wirefree Power:
  • When working with Narrow shades (with an external battery), refer to the following illustration to plug in the external battery.
  • Once the external battery is inserted, the shade will jog twice.

---

Step 6: Hanging the Shade

• Locating the channel running along the back of the shade, hook the channel onto the wall brackets.

• Reaching under the cassette, move levers up into the locked position, keeping the shade secure.

---

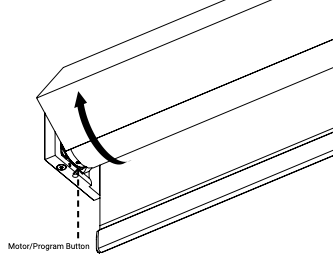

Accessing the Motor head buttons

NANO BOX V2 - 275 / 375

• To access Motor / Programming Button on the Nano shades,  use a thin tool (paper clip) to access the motor head button through the hole in the end cap.  Alternately, the fascia can be removed for visibility, and easier access to the motor head button.

---

NANO BOX V1 - 475

---

Before storing, servicing, or transporting, deactivate the motor by putting it in sleep mode, to make sure the shade does not deploy or get damaged.

---

RTS and Zigbee motor: Delivery Mode

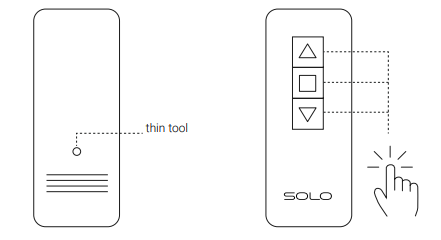

For RTS Motors - Putting the motor to Sleep (Delivery Mode):

• “Delivery” or Sleep Mode:
  • Use a thin tool to hold the button on the back of the remote until the shade jogs once.
  • Press and hold the UP, STOP, and DOWN buttons at the same time until the shade jogs again.
  • The motor is now asleep.

---

For ZIGBEE Motors - Putting the motor to Sleep (Delivery Mode):

• For older V1 Zigbee Motors (Big Motor Head Button):
  • Push and Hold the motor Head Button for 1 jog.
• For newer V2 Zigbee Motors (Tiny Motor Head Button):
  • The motor will automatically go to sleep after 15 minutes of inactivity or disconnected from power.

---

For RTS and Zigbee Motors - Waking the motor up:

• Prior to use, wake the shade from sleep.
  • Plug the charger into the wall, connecting the charging cable to the charger and magnetic charging port on the cassette.
  • The shade will jog up and down once to signal that the motor is now awake. b. In case the charger does not wake up the shade, use a thin tool to briefly press the motor button through the small hole just in front of charging port.
  • The shade will jog once to indicate it is awake.

---

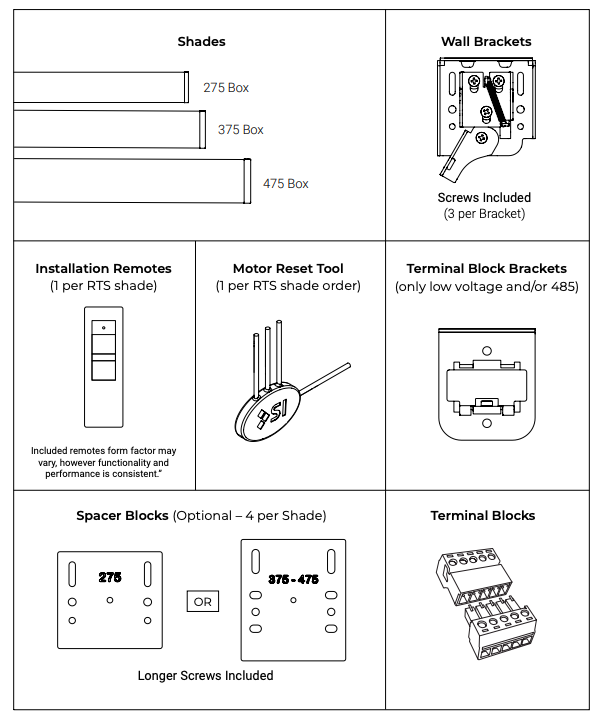

Parts in the Box

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
