Fixed Screen Installation Guide
Complete installation guide for all SI fixed-frame projection screens
Frame Assembly Post Stock
Overview Videos
Projector Placement
Before beginning frame assembly, plan your projector placement. Mount the projector lens level with the top or bottom of the screen. Do NOT angle the projector or use keystone correction.
Step 1: Prepare Your Workspace
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface to prevent scratches.

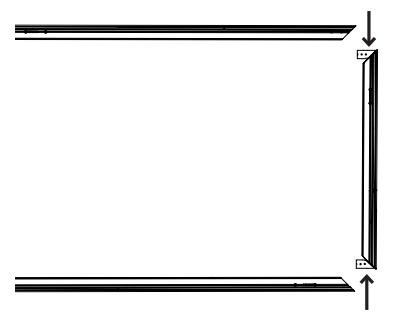

Step 2: Identify Frame Sections

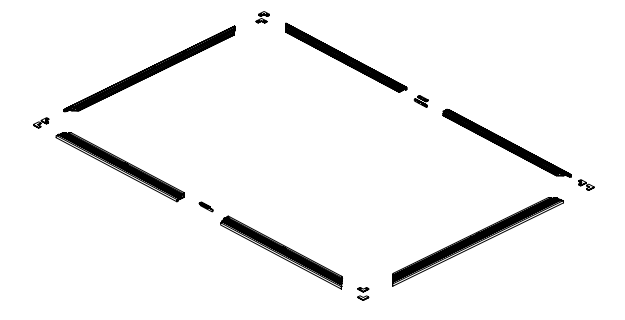

Lay out all labeled frame pieces. Ensure the LED hole faces down during assembly.
Reference the post count table below for the number of posts required for your screen size:
Step 3: Insert Corner Brackets

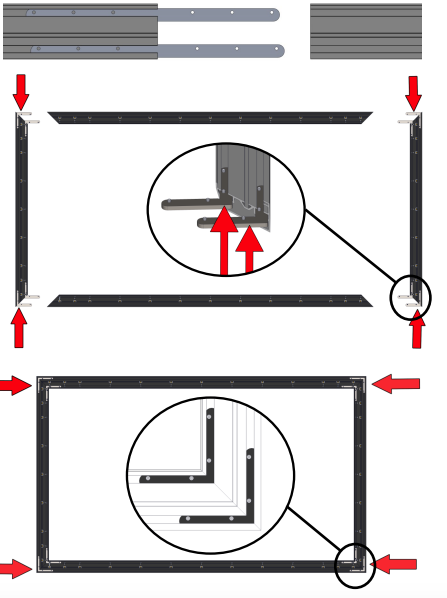

Insert the thin bracket tab into the outer channel and the thick bracket tab into the inner channel.
Step 4: Align Frame Corners

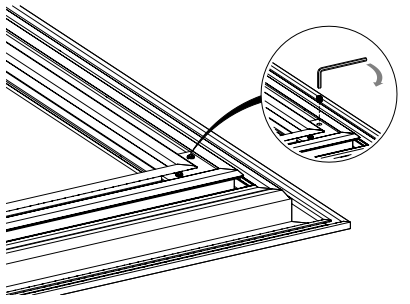

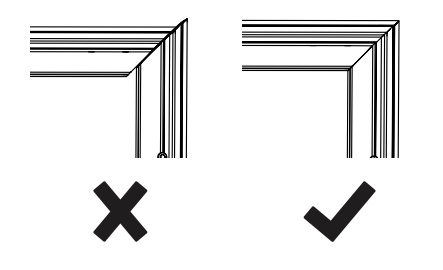

Ensure corners are flush and at 90 degrees. Loosely tighten the set screws — do not fully tighten yet.
Step 5: Square the Frame

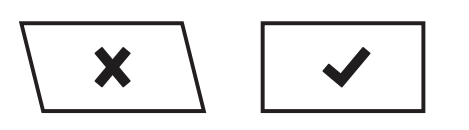

Measure diagonals A and B corner-to-corner. They must be within 1/8" of each other. Once square, fully tighten all set screws.
Step 1: Prepare Your Workspace
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface to prevent scratches.
Step 2: Identify Frame Sections
Lay out all labeled frame pieces. Ensure the LED hole faces down during assembly.
Reference the post count table below for the number of posts required for your screen size:

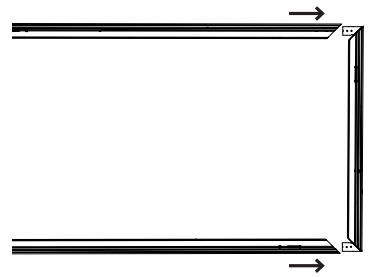

Step 3: Assemble Horizontal Frame Sections
Connect the horizontal frame pieces using the splice plate and countersunk screws. Insert the splice bars to reinforce the joint.
Step 4: Secure Splice from Back
Flip the joined horizontal pieces and secure with set screws from the back of the frame.

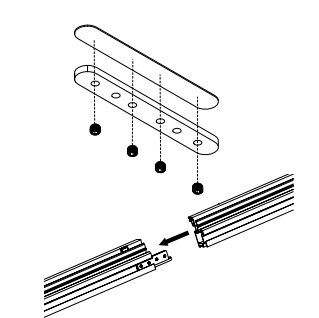

Step 5: Insert Corner Brackets

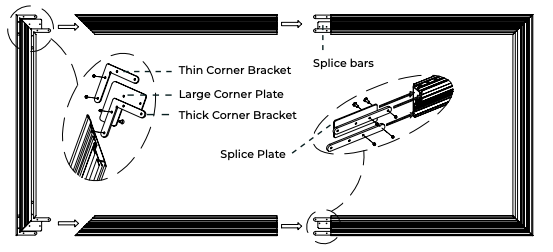

Insert corner brackets as with the standard frame — thin tab in outer channel, thick tab in inner channel.
Step 6: Align Frame Corners
Ensure all corners are flush and at 90 degrees. Loosely tighten.
Step 7: Square the Frame
Measure diagonals corner-to-corner. Must be within 1/8". Fully tighten once square.

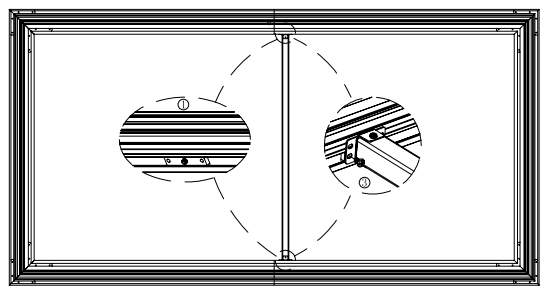

Step 8: Install Vertical Support Bar
Attach the vertical support bar using the included "T" brackets and channel plates.
Step 1: Prepare Your Workspace
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface to prevent scratches.
Step 2: Identify Frame Sections
Lay out all labeled frame pieces. Ensure the LED hole faces down during assembly.
Step 3: Insert Corner Brackets
Insert the thin bracket tab into the outer channel and the thick bracket tab into the inner channel.
Step 4: Align Frame Corners
Ensure corners are flush and at 90 degrees. Loosely tighten the set screws.
Step 5: Square the Frame
Measure diagonals A and B corner-to-corner. They must be within 1/8" of each other. Once square, fully tighten all set screws.
Step 1: Prepare Your Workspace
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface.
Step 2: Identify Frame Sections
Lay out all frame pieces with the LED hole facing down.
Step 3: Insert Corner Brackets
Insert corner brackets — thin tab in outer channel, thick tab in inner channel.
Step 4: Assemble Horizontal Frame Sections
Connect horizontal frame pieces using splice plates and countersunk screws. Secure splice bars from the back with set screws.
Step 5: Install Vertical Support Bar
Attach the vertical support bar using the included "L" brackets.
Step 6: Align Frame Corners
Ensure all corners are flush and at 90 degrees. Loosely tighten.
Step 7: Square the Frame
Measure diagonals corner-to-corner. Must be within 1/8". Fully tighten once square.
Step 1: Prepare Your Workspace
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface to prevent scratches.
Step 2: Identify Frame Sections
Lay out all labeled frame pieces. Ensure the LED hole faces down during assembly.
Step 3: Insert Corner Brackets
Insert the thin bracket tab into the outer channel and the thick bracket tab into the inner channel.
Step 4: Align Frame Corners
Ensure corners are flush and at 90 degrees. Loosely tighten the set screws.
Step 5: Square the Frame
Measure diagonals A and B corner-to-corner. They must be within 1/8" of each other. Once square, fully tighten all set screws.
Step 1: Prepare Your Workspace
Clear a clean, flat area. Use a drop cloth or soft surface.
Step 2: Identify Frame Sections
Lay out all frame pieces with the LED hole facing down.
Step 3: Insert Corner Brackets
Insert corner brackets — thin tab in outer channel, thick tab in inner channel.
Step 4: Assemble Horizontal Frame Sections
Connect horizontal frame pieces using splice plates and countersunk screws. Secure splice bars from the back with set screws.
Step 5: Install Vertical Support Bar
Attach the vertical support bar using the included "L" brackets.
Step 6: Align Frame Corners
Ensure all corners are flush and at 90 degrees. Loosely tighten.
Step 7: Square the Frame
Measure diagonals corner-to-corner. Must be within 1/8". Fully tighten once square.
Frame Assembly (6 Steps)

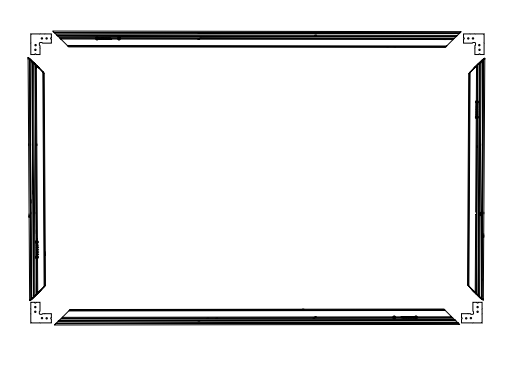

Step 1: Position Frame
Lay all frame pieces out with the viewing side DOWN.

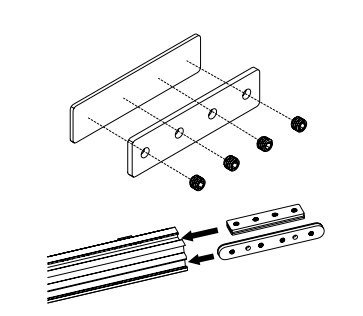

Step 2: Install Center Brackets
Install the center connector bracket and attach the vertical I-beam support.
Step 3: Install Corner Brackets

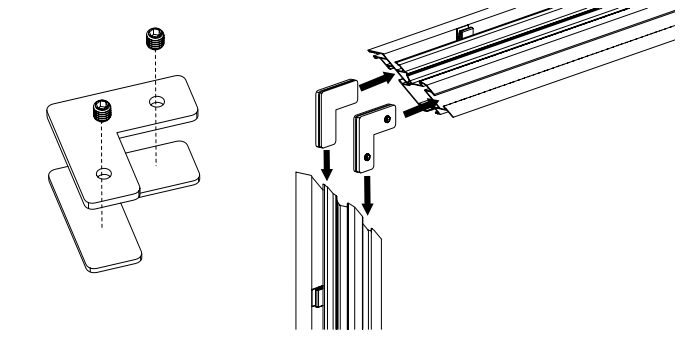

Install 4 brackets per corner — 2 with hex heads and 2 without. This provides the rigidity needed for the retention channel.

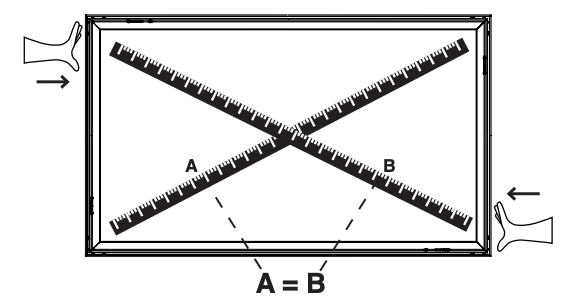

Step 4: Square the Frame
Measure diagonals corner-to-corner. They must be within 1/8" of each other.
Step 5: Secure Vertical I-Beam

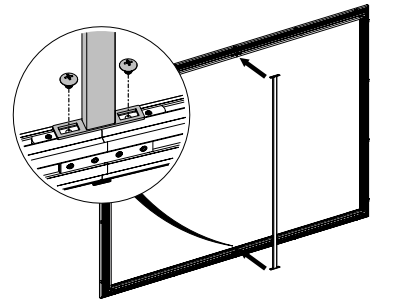

Now that the frame is square, fully tighten the I-beam anchor brackets.
Step 6: Flip the Frame

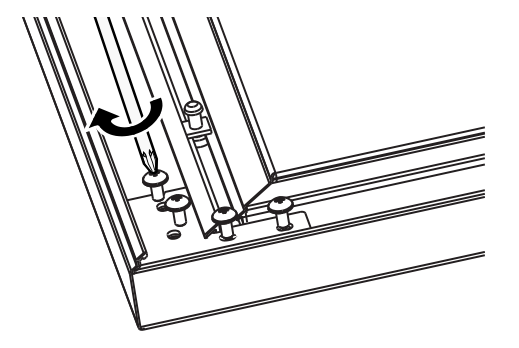

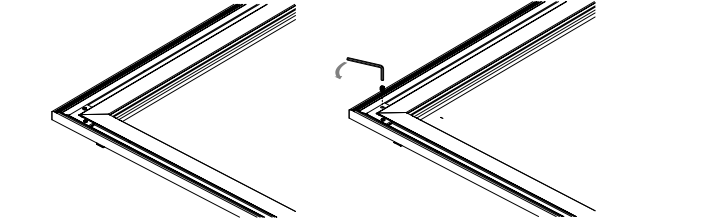

Carefully flip the frame so the viewing side faces UP. Tighten all hex screws and ensure corners remain properly aligned.
LED Kit Installation Post Stock
LED Kit Installation — Post & Snap Systems (4 Steps)
Step 1: Prepare for Zigbee
A Philips Hue Hub is required to control the LED lighting. Set up the Hue Hub and app before powering on the LEDs for the first time.

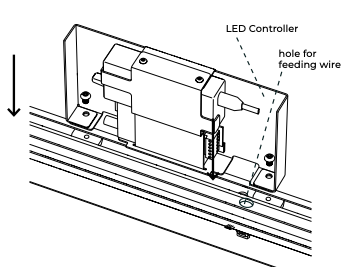

Step 2: Mount LED Controller
The LED controller mounts to the pre-installed nuts on the frame. Secure with the included screws.

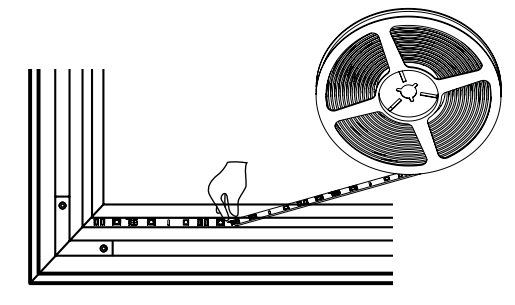

Step 3: Install LED Strips
Route the LED strips around the frame channel. Do not kink or fold the strips. Use the included foam pieces at corners. Peel the adhesive backing and press firmly into place.
Step 4: Cut LED Strips to Length
If the LED strip is too long, cut only at the copper pad marked "CUT HERE". Do not cut anywhere else or the strip will not function.
LED Kit Installation — Retention System with Diffuser (5 Steps)
Step 1: Prepare for Zigbee
A Philips Hue Hub is required. Set up the Hue Hub and app before powering on the LEDs.
Step 2: Install LED Strip

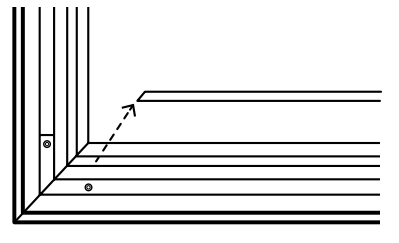

First, remove the plastic diffuser from the LED channel on the frame.
Apply the LED strip into the channel and feed the connector wire through.

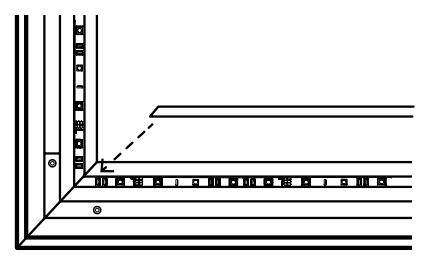

Step 3: Reinstall Diffuser
Snap the plastic diffuser back into place over the LED strip. This creates an even light distribution.
Step 4: Connect System

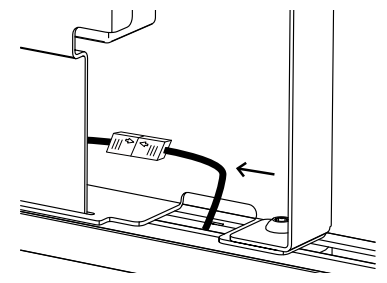

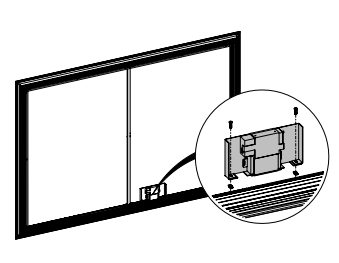

Mount the LED kit tray to the frame. Plug the 4-pin connector from the LED strip into the controller.
Step 5: Plug into LED Controller
Connect the wiring harness to the IP LED controller.
Zigbee LED Wiring

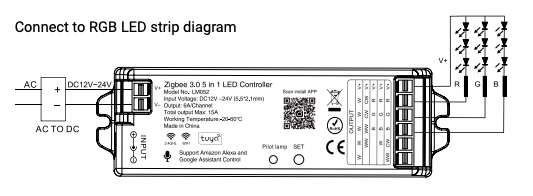

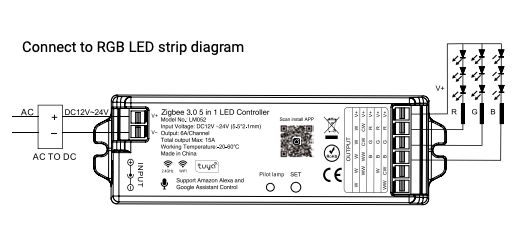

Depress the spring terminals and match the RGB wiring connections.
Mount the IP LED controller in an accessible location.
Material Installation Post Stock
Material Attachment (5 Steps)
Step 1: Prepare Work Area
Police the area for any debris that could damage the material. Lay foam sheeting on the floor beneath the frame. Wear clean gloves when handling the screen material.
Step 2: Unroll Material
Unroll the screen material with the viewing side facing down. You can identify the back side by its slight shine.
Step 3: Prep Black Backer (AT Materials Only)
For AT (acoustically transparent) materials: center the black backer over the material with the corner pockets facing up.
Step 4: Position Frame on Material
With 2 or more people, center the frame onto the material. Keep everything flat and aligned.

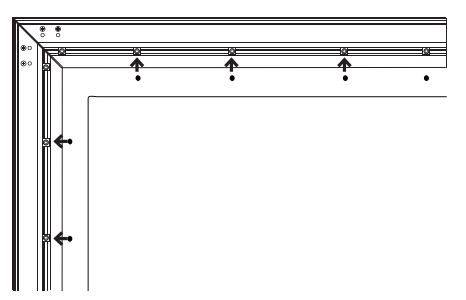

Step 5: Attach Material with Posts
Remove the post retention bumpers. Newer screens will have the posts in the hardware box. Insert posts through the material grommets and into the frame channel.

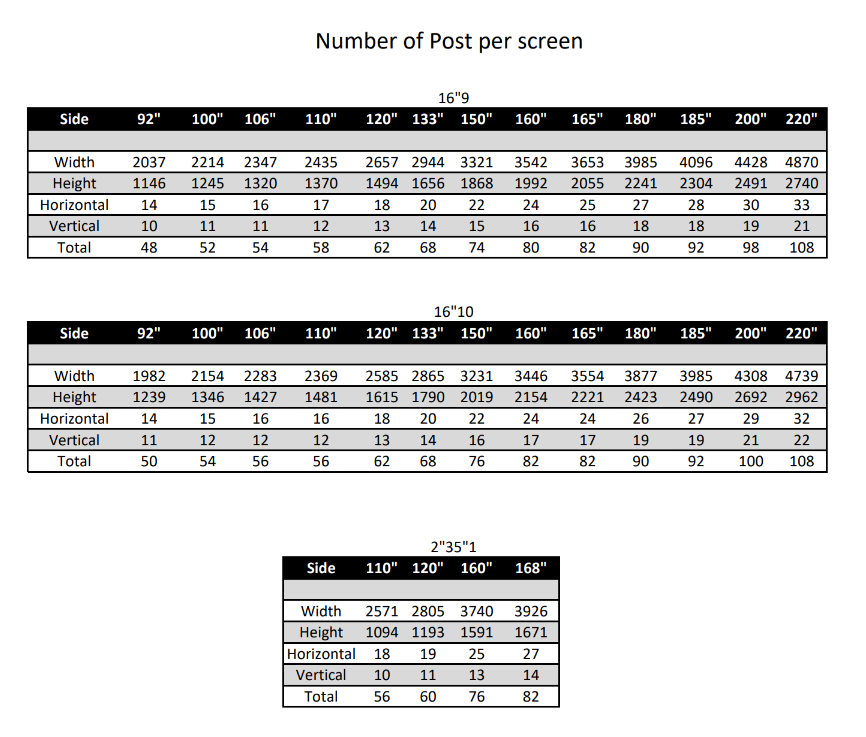

Reference the post count table for your screen size:

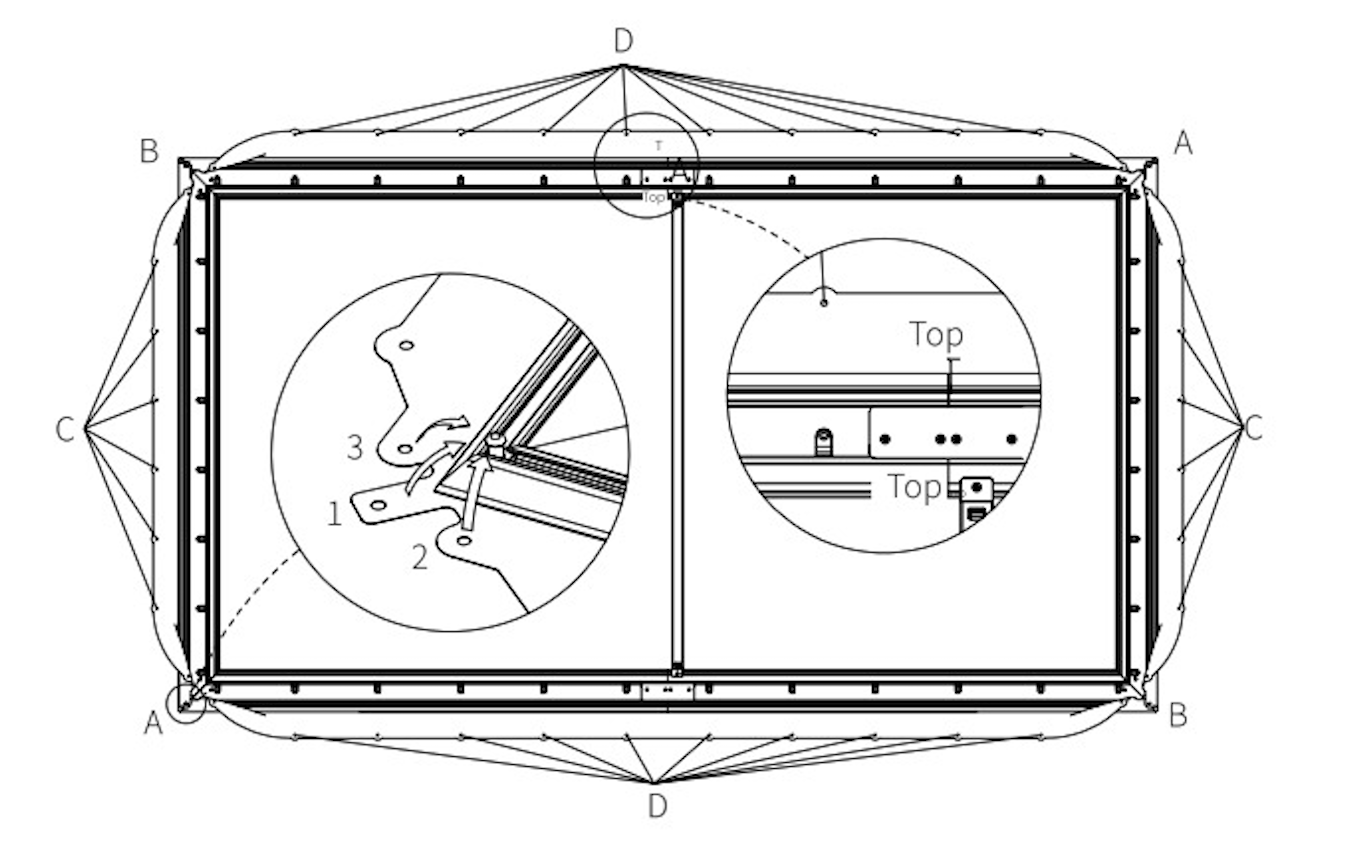

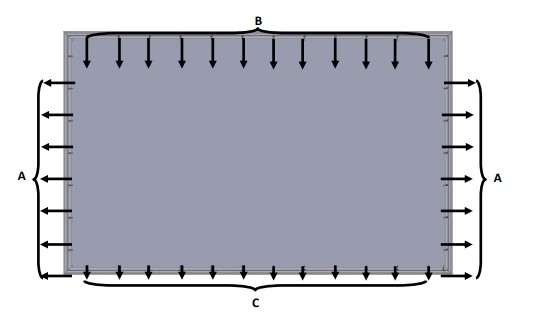

Follow the attachment sequence diagram — always work from center outward:
Material Attachment
Step 1: Prepare Work Area
Police the area for any debris. Lay foam sheeting on the floor. Wear clean gloves when handling screen material.
Step 2: Unroll Material
Unroll the screen material with the viewing side facing down. Identify the back side by its slight shine.
Black Backer AT Section (3 Steps)
Step 1: Prepare Screen
AT (acoustically transparent) materials come with a separate black backer that must be installed behind the screen material.
Step 2: Install Channel Nuts
Insert channel nuts into the inner frame channel. These will be used to secure the black backer with thumb screws.
Step 3: Attach Black Backer
Align the black backer grommets with the channel nuts. Secure with thumb screws.
Attach Material with Posts
Step 4: Position Frame and Attach Material
With 2 or more people, center the frame onto the material. Remove post retention bumpers. Newer screens will have the posts in the hardware box. Insert posts through grommets into the frame channel.
Follow the attachment sequence — always work from center outward:
Snap Material Attachment (4 Steps)
Step 1: Prepare Work Area
Police the area for any debris that could damage the material. Lay foam sheeting on the floor beneath the frame. Wear clean gloves when handling screen material.

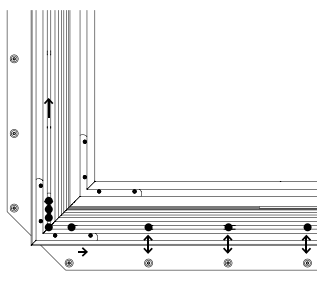

Step 2: Remove Post Retention Bumpers & Distribute Snaps
Remove any post retention bumpers from the frame channel. Distribute the snaps evenly — you should have the same number of snaps as holes in the screen material.

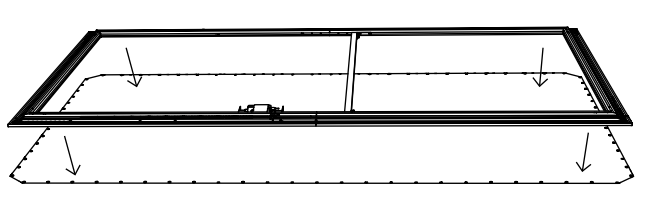

Step 3: Lay Frame onto Material
With 2 or more people, carefully lay the frame onto the screen material. Center the frame and keep everything flat.
Step 4: Attach Material with Snaps
Follow the snap attachment sequence diagram. Press each snap firmly through the material grommet and into the frame channel until it clicks into place.
Black Backer AT Section (3 Steps)
Step 1: Prepare Screen
AT (acoustically transparent) materials come with a separate black backer.
Step 2: Install Channel Nuts
Insert channel nuts into the inner frame channel for the thumb screws.
Step 3: Attach Black Backer
Align the black backer grommets with the channel nuts. Secure with thumb screws.
Material Installation — Retention System
Step 1: Prep Material

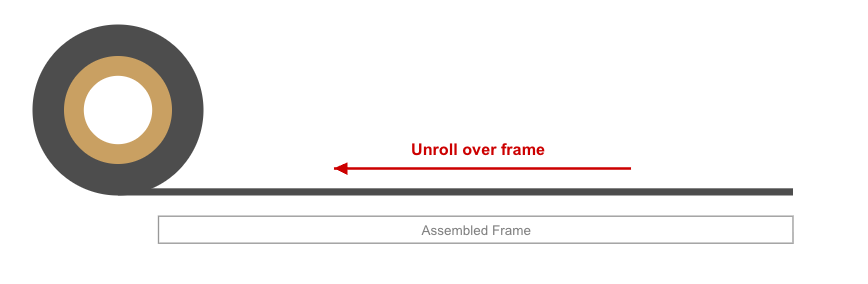

Black Diamond material is rolled with the viewing side UP. Follow these steps carefully:
- Place the roll beside the vertical frame member
- Remove the tape and orient the roll for unrolling over the frame
- Gently unroll the material over the frame
- Remove the clear protective layer (requires 2 people)
Step 2: Position Material

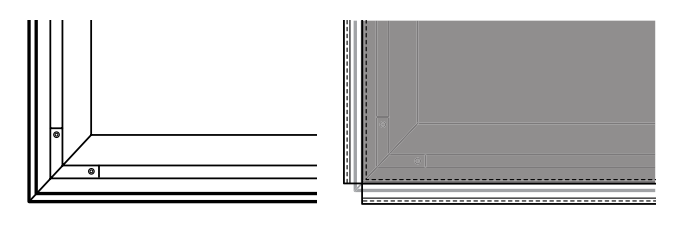

Roll the material over the frame and align all corners. Use the insertion tool to press the material edge into the retention channel.
Repeat for all four corners of the frame.
Step 3: Lock Material

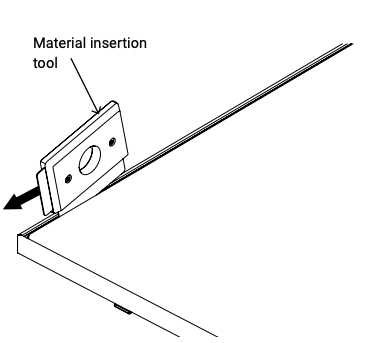

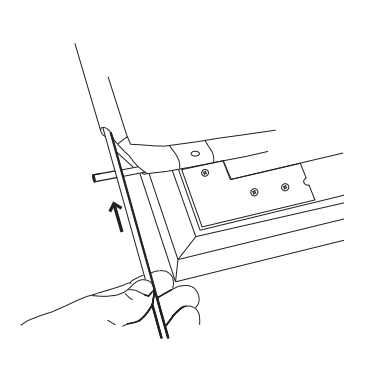

Starting from the center points of each side, use the insertion tool to press the material into the retention channel. Work outward toward the corners until all edges are fully locked in.
Trim Installation Post Stock
Trim Installation (3 Steps)
Step 1: Install Trim Pieces
Install the vertical trim pieces first, then the horizontal trim pieces. The horizontal trim includes 4 corner brackets that connect to the vertical pieces.
Step 2: Secure Corners
At each corner, install the set screws. Use two 1/4-20 x 1/4" screws per corner to lock the trim pieces together.
Step 3: Join Horizontal Trim (Split Frame Only)
For split frames: join the horizontal trim sections at the splice point using four 1/4-20 x 1/4" screws.
Trim Installation (Press-Fit)
Align and Press Trim into Place
The retention system uses press-fit trim. Align each trim piece with the frame channel and press firmly into place on all four sides.
Mounting Post Stock

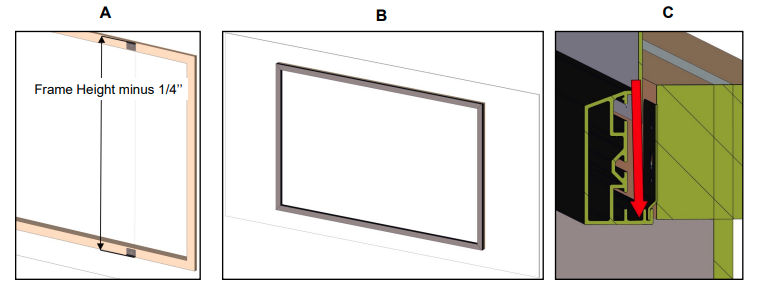

Wall Mount (3 Steps)

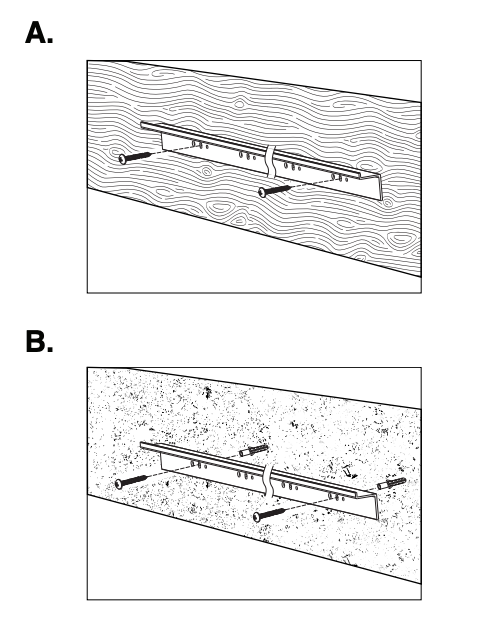

Step 1: Install Mounting Brackets
All screen sizes use only 2 mounting brackets. Position them approximately 6 inches to 1/3 of the screen width from each edge. Secure to wall studs or use appropriate anchors.
Step 2: Prepare for LED Power
Before mounting, pull the bottom of the frame away slightly to manage LED power cables. Route cables to your power source location.

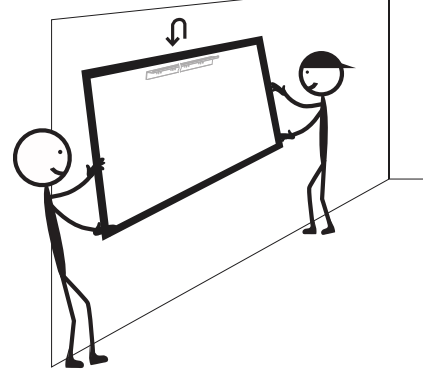

Step 3: Mount the Screen
With 2 or more people, hang the screen on the wall brackets. Verify the screen is level and secure all fasteners.
Flown Kit Installation In Stock Screens
Ceiling Mount Installation (4 Steps)
Step 1: Determine Mounting Locations
Position ceiling mounts approximately 6 inches to 1/3 of the screen width from each edge, matching the screen bracket locations.
Step 2: Anchor Ceiling Mounts
Secure ceiling mounts to joists, beams, or other structural support. The mounts must support the full weight of the assembled screen.
Step 3: Feed Suspension Cables
Thread the suspension cables through the Griplock mechanism on each ceiling mount.
Step 4: Adjust Height and Leveling
Pull the cable through the Griplock to raise the screen. Press the release button to lower. Adjust both sides until the screen is level at the desired height.
Material Removal Retention Only
Material Removal (4 Steps)
If you need to remove and replace the screen material from a Retention System frame, follow these steps:

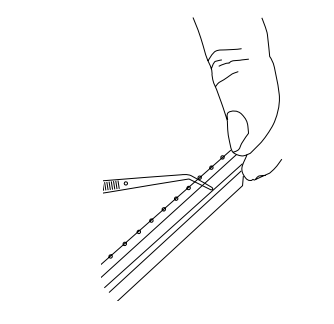

Step 1: Insert Removal Tool
Insert the removal tool into the retention channel alongside the material edge.

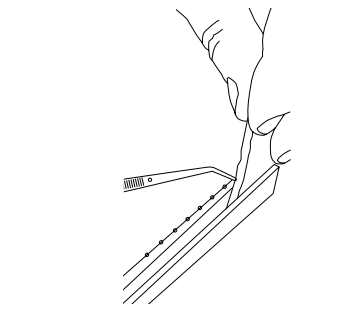

Step 2: Wedge Tool and Pull Material Back
Wedge the tool under the material edge and gently pull the material back from the channel.
Step 3: Rotate Tool Between Material and Channel
Rotate the tool so it sits between the material and the retention channel wall.
Step 4: Push Tool Forward to Release
Push the tool forward along the channel to release the material. Repeat around the entire perimeter.
FlexGlass Installation FlexGlass
Projector Placement
Mount the projector lens level with the top or bottom of the screen. Do NOT angle the projector or use keystone correction.
Frame Assembly
Step 1: Unpack and Lay Out
Unpack all frame pieces and lay them out with the velvet side facing down.
Step 2: Insert Corner Brackets
Insert corner brackets into the vertical frame pieces. Larger screens require 2 brackets per corner.
Step 3: Assemble and Square
Slide the vertical pieces into the horizontal pieces. Square up the frame and lightly tighten set screws. Measure diagonals corner-to-corner — they must be within 1/4".
Attaching Material
Step 1: Unroll Screen
Unroll the screen material with the protective foam layer.

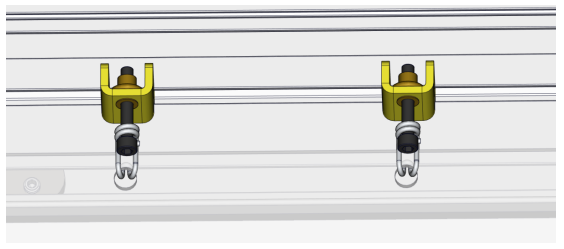

Installing Tensioners
Step 2: Distribute Tensioners
Distribute one tensioner per hole around the frame perimeter. Loosen the screw on each tensioner and hook it into the corresponding material hole.
Applying Initial Tension
Tension Sequence
- A: Right & Left sides — Apply moderate tension
- B: Top — Screws should stick out approximately 1/2"
- C: Bottom — Hooks should just contact the holes
Wall Mounting
A: Install Top and Bottom Brackets
Mount the top brackets first. Install bottom brackets upside down at a height equal to the frame height minus 1/4".
B: Hang Screen on Top Brackets
Carefully hang the screen assembly on the top wall brackets.
C: Lock into Bottom Brackets
Swing the bottom of the frame into the bottom brackets and lock into place.
Final Tensioning
A: Access Tensioners from Back
From the back of the screen, use a ball hex driver to adjust each tensioner.
B: Balanced Tightening Pattern
Work in a balanced tightening pattern, keeping the material centered and evenly tensioned. Repeat the pattern for the flattest possible result.
1 Series Installation 1 Series
Frame Assembly (6 Steps)
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Material Installation (5 Steps)
Step 1
Step 2
Step 3
Step 4
Step 5
Screen Mounting (2 Steps)
Step 1
Step 2

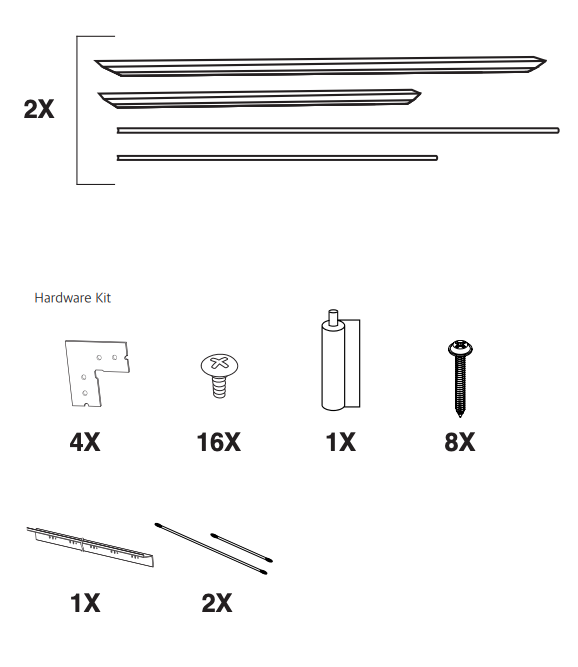

Parts in the Box
LED Kit Setup
Troubleshooting
If LEDs are limited to white only and will not change color, manually cycle through the color modes using the physical button on the controller:
Red → Green → Blue → White
After selecting a color mode, power cycle the controller. Then refresh the Hue app.
Connect to LED Strip
Initial Setup (6 Steps)
Step 1: Connect Power Supply
Connect the power supply to the IP LED controller.
Step 2: Open Hue App
Open the Philips Hue app. Tap the "..." menu and select "Add Lights."
Step 3: Enter Discovery Mode
Press and hold the "SET" button on the IP LED controller until it flashes purple. This indicates Discovery Mode is active.
Step 4: Search in Hue App
Tap "Search" in the Hue app and wait. When the LEDs flash green, the controller has connected successfully.
Step 5: Identify Correct Light
The controller will appear as two lights: "Extended Color light 1" and "Dimmable light 1". Use the Extended Color light — this provides full color control. DELETE the "Dimmable light 1" entry.
Step 6: Rename and Use
Rename the light to something recognizable (e.g., "Screen LEDs") and use it like any other Hue lamp in your setup.
LED Troubleshooting Video
IR Kit
IR Kit instructions coming soon. For immediate assistance, please contact Screen Innovations support.
Legacy IP LED Kit Legacy
Initial Setup (6 Steps)
Step 1: Plug In Power Supply
Plug in the power supply. The LEDs will turn white.
Step 2: Open Hue App
Open the Philips Hue app and navigate to Settings → Light setup.
Step 3: Add Light
Tap the "+" button and select "Search."
Step 4: Wait for Connection
Wait for the app to discover the controller. Connected LEDs will turn green.
Step 5: Identify Correct Light
You will see "Extended Color Light 1" (use this) and "Dimmable Light 1" (delete this).
Step 6: Rename and Use
Rename the light and use it like any Hue lamp.
Reset Procedure (7 Steps)
Step 1
Make sure the LED IP controller is powered on.
Step 2
Turn the controller off for at least 2 seconds.
Step 3
Turn it back on and wait for the LEDs to illuminate.
Step 4
Repeat the off/on cycle for a total of 4 times.
Step 5
The LEDs will blink for approximately 10 seconds.
Step 6
After the blinking stops, repeat the off/on cycle 2 more times.
Step 7
The LED IP controller resets and the LEDs return to white. You can now re-pair with the Hue app.
Screen Cleaning
General Cleaning Rules
- Never use abrasive pads or harsh chemicals on any screen material.
- Always test your cleaning method on a small, inconspicuous area first.
- "Soapy water" means diluted distilled water mixed with a small amount of mild dish detergent.
Maestro White
- Vacuum with a soft bristle attachment to remove loose dust.
- For marks or smudges, use a clean microfiber cloth dampened with soapy water.
- For stubborn marks, try a white pencil eraser — gently rub the affected area.
Slate, Pure White, PureGray, 360
- Use a clean microfiber cloth dampened with distilled water only.
- Do not scrub excessively — use gentle, circular motions.
- For oily marks, use a degreaser diluted 1:20 with distilled water.
Black Diamond
- Use "Whoosh" screen cleaner (or equivalent) with a clean microfiber cloth.
- Spray the cleaner onto the cloth, not directly onto the screen.
FlexGlass
- Use a glass cleaner diluted 1:10 with distilled water.
- Apply with a clean microfiber cloth using gentle, even strokes.
Wrinkle Removal & Troubleshooting
Applies to: Slate, Slate AT, Pure Gray & White, Pure Gray & White AT
Wrinkle Removal (4 Steps)
Step 1: Ensure Proper Tensioning
For Post systems: verify posts are secured from center outward. For Snap systems: check that all snaps are fully engaged.
Step 2: Apply Gentle Heat
Use a hairdryer on low or medium setting. Hold 12–18 inches from the back side of the material. Use circular motions across the wrinkled area.
Step 3: Allow Material to Relax
After applying heat, allow 12–24 hours for the material to settle. Maintain room temperature between 70–80°F.
Step 4: Check Frame
Verify the frame is perfectly square and rigid. An out-of-square frame can cause persistent wrinkles.
Impressions & Dents (3 Methods)
Method 1: Hairdryer + Microfiber
Apply gentle heat with a hairdryer while applying light circular pressure with a clean microfiber cloth on the affected area.
Method 2: Warm Room Method
Place the screen in a temperature-controlled room (75–80°F) for 24–48 hours. The material will gradually relax and the impression should diminish.
Method 3: Warm Damp Cloth
Lay a warm, damp cloth over the affected area. Reheat gently with a hairdryer to create steam that helps relax the material.
Fish Scaling
Fish scaling is caused by improper storage or incorrect rolling of the screen material. To fix:
- Use a garment steamer held at a safe distance from the material.
- Work in gentle, even passes across the affected area.
Care Tips
- Never iron the screen material.
- Avoid contact with sharp objects or fingernails.
- Store and transport the screen carefully — always roll, never fold.
- Maintain consistent temperature and humidity in the viewing room.
Comments
0 comments
Please sign in to leave a comment.
