About the TRO.Y 2





Introduction

Features:

• Embedded commissioning software
• 485 programming
• Powered via PoE
• Four segmented 485 bus line
• Integration with third-party automation systems via IP or RS232
• Compatible with SDN 2.0 (485) and Somfy Synergy™ API
• Advanced Lutron compatibility
• Din Rail mounting capability
• Built-in Real-Time Clock
• Create scenes and events for any motor type(s)

Overview:

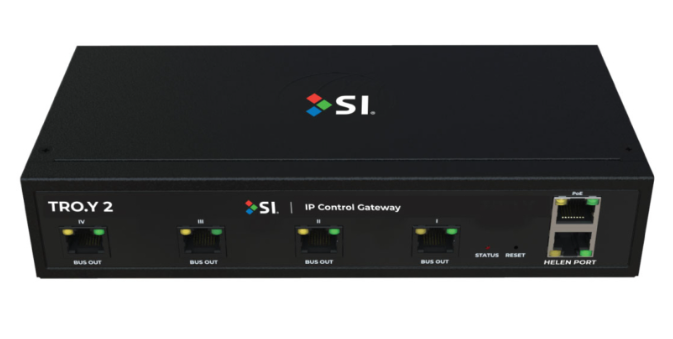

TRO.Y 2 is an IP Control gateway allowing integration with shades and screens via PoE and RS232. It supports advanced control options for various motor types (485, RTS, Zigbee) and is compatible with wireless bridges like LinkProZ, Helen, TaHoma Switch, and more.

---

2. Initial Considerations

• TRO.Y 2 is designed for indoor installation (Rack or Din Rail mounted).
• Ensure proximity to Janus units within 200 feet.
• Use four 485 ports to segment and improve 485 bus performance.
• Best practice: Divide shades into four segments to reduce latency and improve performance.
• Example: 32 shades with four Janus units (eight shades per port).

Important:

• Do not exceed 48V on PoE.

---

3. Parts in the Box

• Troy 2
• Universal Rack Ears (2)
• Rack Mount Fascia
• Universal DIN Rail Bracket (2)
• 48V Passive PoE Injector (Brick)
• Injector Power Cable
• CAT5e Cable
• DIN Rail Screws (2)
• Universal Mounting Screws (10)
• Universal DIN Rail Rack Mount Screws (4)
• Long Rack Ear 1.5 mm Hex Tool

---

For issues, contact Screen Innovations:
Phone: [phone] Option 3
Website: www.screeninnovations.com
